Metallic Processing Machinery

Home > Product > Metal Forging Machinery

60 Metal Tube End Expending/ Flange/Expanding Machine Hydraulic Automatic Supplier

Zhangjiagang Humper CNC Machinery Co., Ltd.
  • After-sales Service：Oversea After Sales Service Provided
  • Type：Pipe End Forming Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Hydraulic Pressure
  • Feature：Automation
  • Warranty：12 Months

Base Info

  • Model NO.：STM60-II
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Max Processing Capacity：60mm
  • Max Processing Length：120mm
  • Oil Pressure：14MPa
  • Motor Power：7.5kw
  • Working Speed：150mm in 3-4,S
  • Machine Size：350cm X 70cm X 155cm
  • Weight：1050kg
  • Transport Package：Woodbox
  • Specification：60
  • Trademark：HUMPER
  • Origin：Zhangjiagang, China
  • HS Code：8462919000
  • Production Capacity：100,Month

Description






Warranty     period

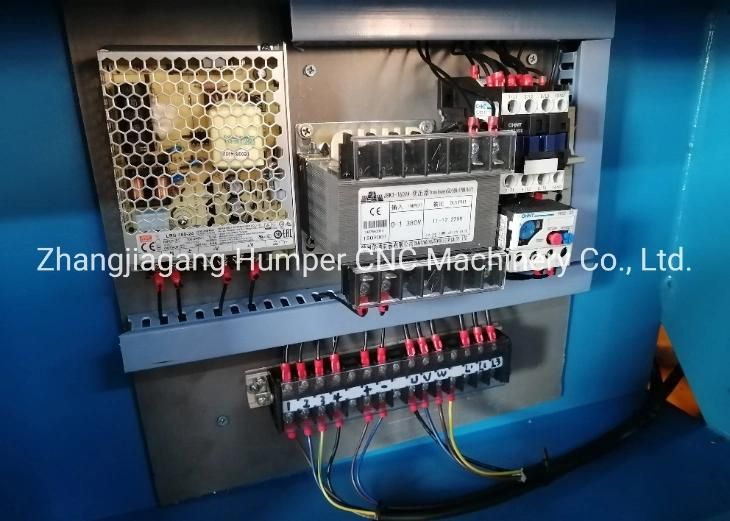

of one year2TransformerBeijingPeople Ele3Switch powerTaiwanMealwell4SinglechipChangzhouKebi5RelayZhejiangZhengtai6Approach switchJapanOmron7ElectromotorWuxiTaihu8Start-up buttonZhejiangZhengtai9Stop buttonZhejiangZhengtai10Various magnetic valveJapanYuken11Oil tankShanghaiBaoshan12Seal ring Japan Valqua13Oil pipeTaiwanLianhui
60 Metal Tube End Expending/ Flange/Expanding Machine Hydraulic Automatic Supplier60 Metal Tube End Expending/ Flange/Expanding Machine Hydraulic Automatic Supplier60 Metal Tube End Expending/ Flange/Expanding Machine Hydraulic Automatic Supplier60 Metal Tube End Expending/ Flange/Expanding Machine Hydraulic Automatic Supplier60 Metal Tube End Expending/ Flange/Expanding Machine Hydraulic Automatic Supplier

Technological parameters:
Specification/ModelSTM60-II
Max processing capacityΦ60mm
Max processing length110mm
Oil pressure14Mpa
Motor power5.5kw
Working speed110mm in 3-4/s
Machine Size200cm x 65cm  x 150cm
Weight650kg

Package: Woodbox
60 Metal Tube End Expending/ Flange/Expanding Machine Hydraulic Automatic Supplier
Payment terms and After sales service:
1.Payment terms: 30% by T/T payment in advance, 70% by T/T before shipment.
2.Delivery time: Usually no later than 25 days after receiving the 30% by T/T payment in advance.

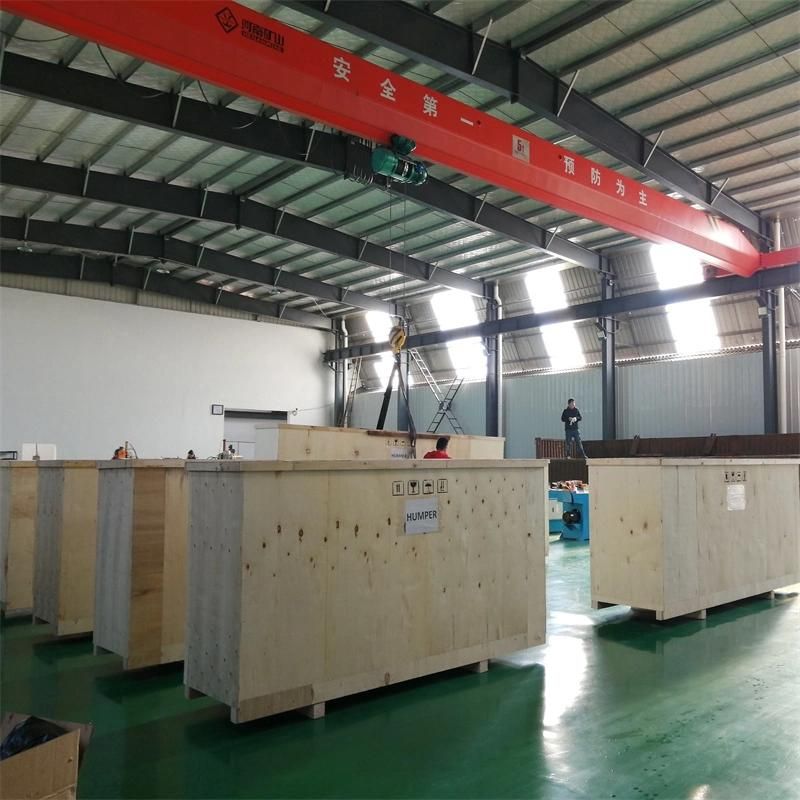

3.Package: Wooden box.
4.Warranty period: One year. During the year, if any spare parts of the machine are naturally damaged, we support to send it to the customer for free, but the freight cost should be borne by customer.

5.If it is needed, we can send our engineer to the customer's factory for installing. The customer should provide our engineers air tickets of both coming and back, commission, hotel, food, drinking and other needed help; The customer should ensure our engineers' safety and pay our engineer per day. The customer also can send the engineer to our factory to learn the operation and maintains freely.

6.Our factory provide the service for the customer forever, if the customer need operation help, the customer can contact us through Skype, Whatsapp, Wechat, Email  or Telephone at any time. If very urgent, Wechat is the best choice to find us.

FAQ:

1. How do we know which type of pipe end forming machine we need?

We have professional engineers. They'll give the most suitable and professional suggetions. You have to inform us following details:

     - Pipe Material

     - Pipe Outside Diameter(OD)

     - Thickness

     - Forming Length

     - Expanding, reducing or flange?

     - The OD after forming?

     - One end or double ends?


2. Do you provide machine operation training?
Yes! We provide operation video and operation manual.
You can find us through Call/Wehcat /Whatsapp/Skype if you meet any operation issues.
We help to solve problems through video call.
We provide oversea aftersales service if needed.
