• Model NO.：SuperFast1530
• Automatic Grade：Automatic
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Name：CNC Plasma Cutting Machine
• Drive：Stepper Motor
• Software：Startcam
• Worktable：Blade Worktable
• Sensor Torch Height Control：Automatic
• Plasma Cutter：63A
• Control System：F2300b
• Cutting Thickness：0.5-40mm
• Cutting Speed：100-12000 mm,Min
• Transport Package：Wooden Box Package
• Specification：2200*3800*1650mm
• Trademark：seanior
• Origin：Dezhou, Shandong Province
• Production Capacity：20 One Month

Basic Info.

Model NO. SuperFast1530 Automatic Grade Automatic Power Source Electric Cutting Mode Plasma Cutting Name CNC Plasma Cutting Machine Drive Stepper Motor Software Startcam Worktable Blade Worktable Sensor Torch Height Control Automatic Plasma Cutter 63A Control System F2300b Cutting Thickness 0.5-40mm Cutting Speed 100-12000 mm/Min Transport Package Wooden Box Package Specification 2200*3800*1650mm Trademark seanior Origin Dezhou, Shandong Province Production Capacity 20 One Month

Product Description

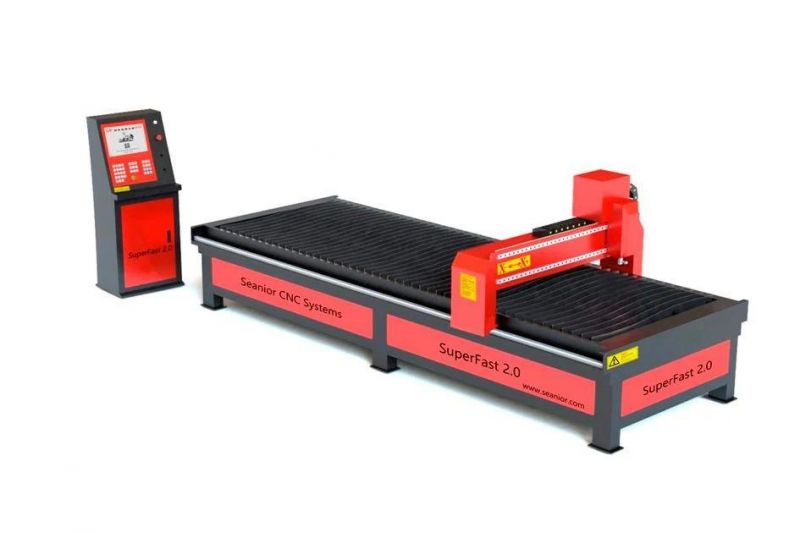

Fine Used CNC Cutting Plasma Machine Table

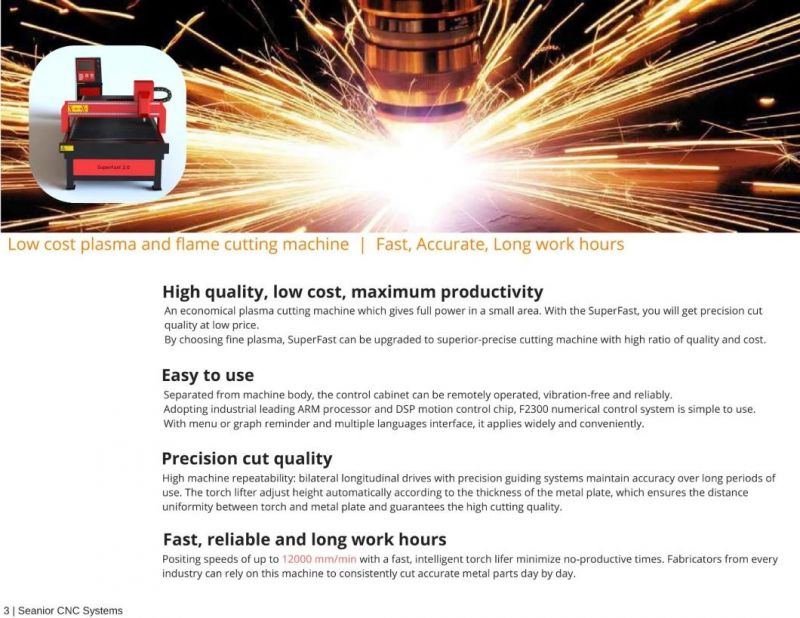

Low cost plasma and cutting machine | Fast, Accurate, Long work hours

* High quality, low cost, maximum productivity
* Easy to use
* Precision cut quality
* Fast, reliable and long work hours

Key Features
Low cost plasma cutting machine, table type for CNC metal cutting used in construction, shipbuilding&shipyards, plant and pressure vessels, vehicles, iron crafts, steel services center, energy, mechanical engineering, metal products, heavy steelworks industries.
Are you looking for an economical plasma cutting machine which gives full power in a small area? With the SuperFast 1530 you will get high precision cut quality at low price.
Thanks to the space saving, compact construction, the machine can be quickly installed.
Leveling screws makes easy alignment on a flat surface.

Cut mild steel, stainless steel and aluminum
Positioning speed of 1200 ipm reduces idle time between cuts.
Control console mounted is free standing ease of access and safe operation.
Plasma up to 1'' thick material with standard Huayuan LGK120.
Integrated cutting table with optional dust and fume extraction


Product Data


Technical item	Technical parameters
effective cutting width	1500mm/2000mm
effective cutting length	3000mm/4000mm
material thickness	0.5-25mm
torch lifter vertical traveling distance	≤100mm
cutting precision	±0.5mm
cutting speed	0-8000mm/min
linear repeating accuracy	±0.2 mm
plasma power	63A (100/120/160/200A for option)
plasma source	Huayuan or Hypertherm
duty cycle	24h
temperature of the working environment	-20~55ºC
material to cut	mild steel, stainless steel, alloy, aluminum, copper, titanium and other non-ferrous metal

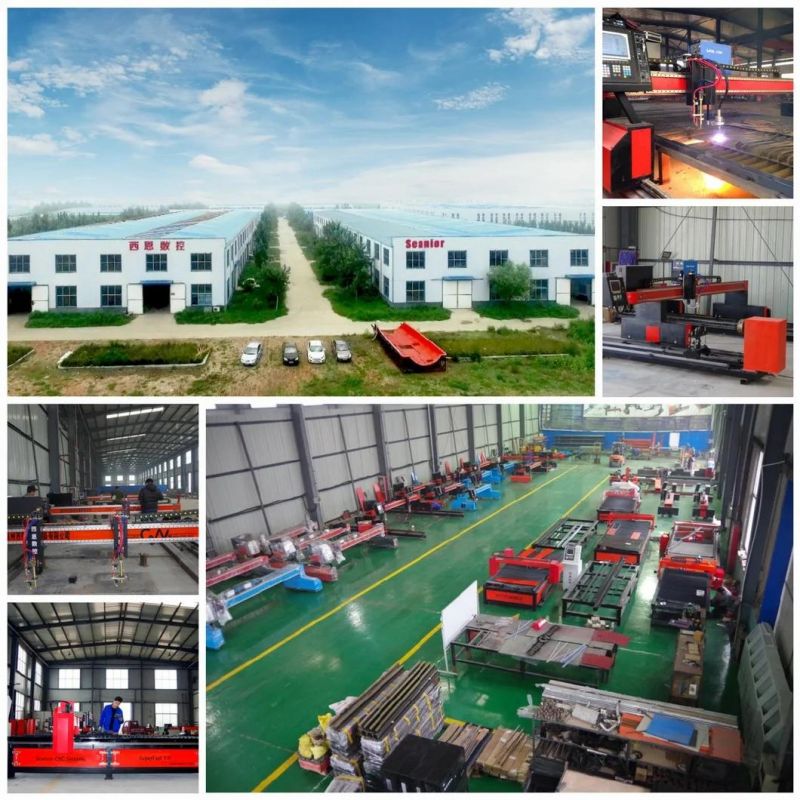

Seanior CNC Systems

Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.

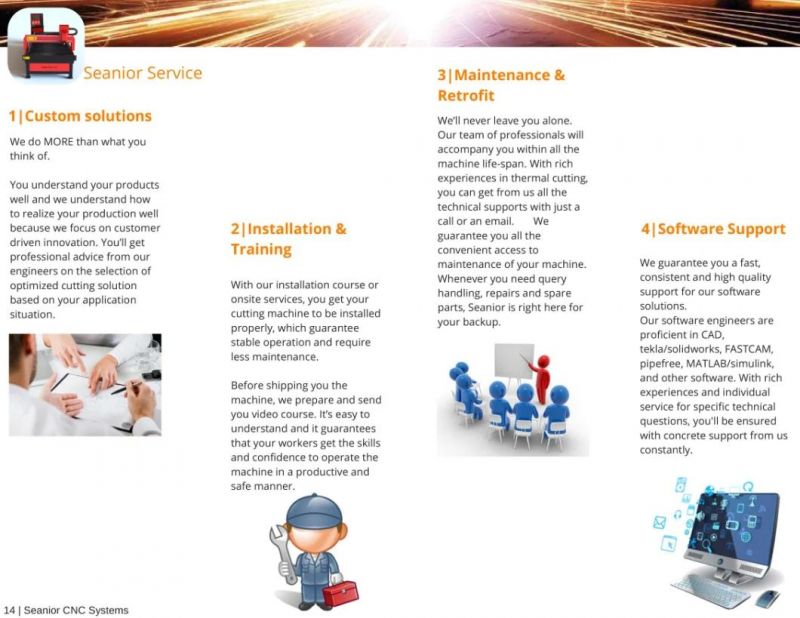

Why you Choose Seanior CNC Systems?

Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.
