• Feature：Automation
• Certification：CCC, ISO9001, CE
• Warranty：24 Months
• Customized：Customized
• Advantage：Simple Structure
• Condition：New
• Name：Nails Making Machine
• Video Factory Inspection：Provided
• Mechanical Test Report：Provided
• Raw Materials：Mild Steel
• Color：Customer Requirement
• Transport Package：Wooden Case or Suitable for Sea Shipping
• Specification：To make threaded nails
• Trademark：Hongshuo
• Origin：China
• HS Code：8463300000
• Production Capacity：300 Sets Per Month

Basic Info.

Feature Automation Certification CCC, ISO9001, CE Warranty 24 Months Customized Customized Advantage Simple Structure Condition New Name Nails Making Machine Video Factory Inspection Provided Mechanical Test Report Provided Raw Materials Mild Steel Color Customer Requirement Transport Package Wooden Case or Suitable for Sea Shipping Specification To make threaded nails Trademark Hongshuo Origin China HS Code 8463300000 Production Capacity 300 Sets Per Month

Product Description

Automatic Threaded Grooved Twisted Nails Making Machine
I.GS-100 High Speed Thread Rolling Machine
1.Description:Wire Rods---Nail Making---Nail Stem Threadding---Finished Threaded Nails  2.Technical Specification & Machine Photos

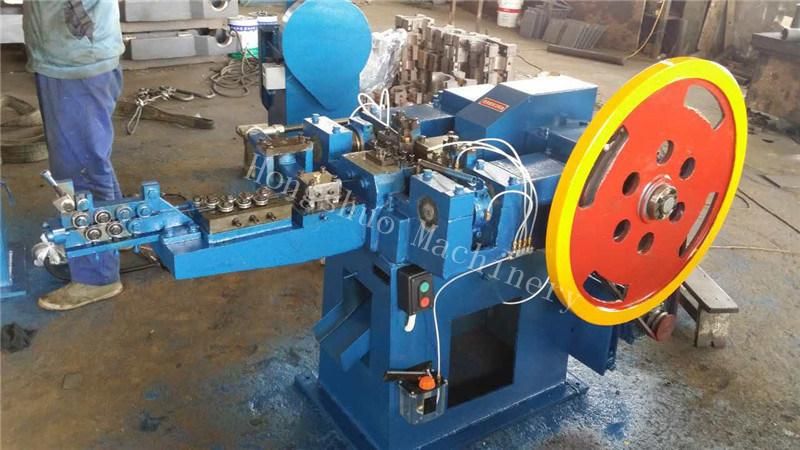

2.1 Nail making machine This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.

Model	Z94-5.5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Max. dia. of nail	5.5mm	4.5mm	3.5mm	2.8mm	1.6mm
Min. dia. of nail	3.8mm	2.8 mm	1.8 mm	1.2 mm	0.9 mm
Max. Length of nail	150mm	100mm	75mm	50mm	25mm
Min. length of nail	80mm	50 mm	30mm	16mm	9mm
Motor power	5.5kw	4kw	3kw	2.2kw	1.5kw
Nail making speed	220pcs/min	260pcs/min	320pcs/min	380pcs/min	450pcs/min
L*W*H	2.5*1.6*1.5m	2.2*1.6*1.65m	2.0*1.4*1.4m	1.7*1.3*1.4m	1.5*1.3*1.2m
Weight	2.1tons	1.8 tons	1.5 tons	1.15 tons	0.8 ton
Output	2000kg/8h	1500kg/8h	800kg/8h	500kg/8h	80kg/8h

2.2 Thread rolling machine
This machine is equipped with professional molds, can produce various kinds of shaped nails. It is mainly used to produce screw nail, spiral nail and other new type of nails.

Model	GS-100 high speed thread rolling machine
Diameter range	1.8-4.2mm
Length range	25-100mm
Capacity	600-1000pcs/min
Weight	1500kg
L*W*H	1420*1400*1450mm
Power	7.5kw

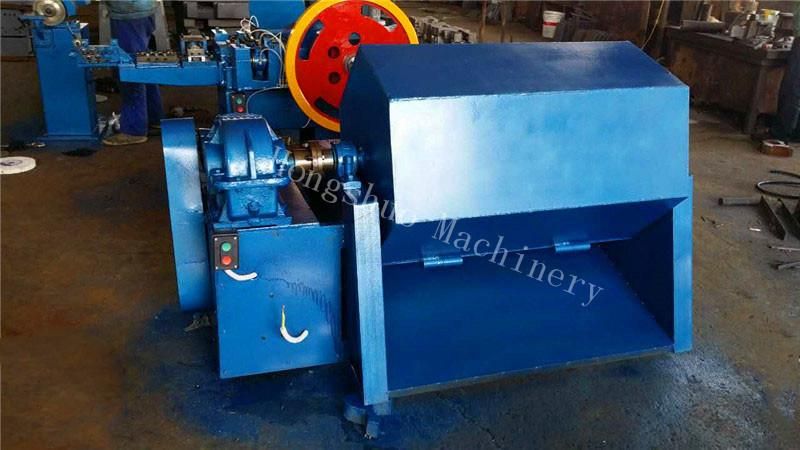

2.3 Nail polishing machine
This machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.

Model	SD-400 Nail polishing machine
Motor power	2.2kw
Overall size	1.64*0.9*1.0m
Capacity of nails	400kg

III Finised Products

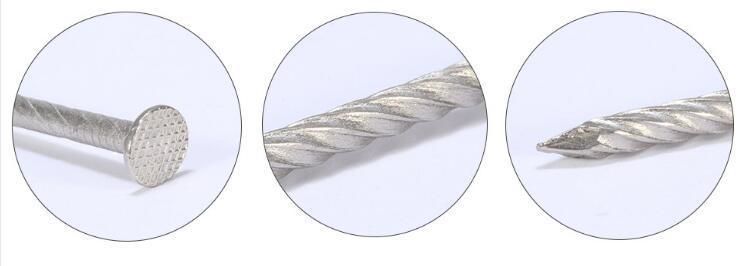

3. End Products




4. FAQ
--1--Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1990.
--2--Q: Can i use one machine to make different size nails?
A: Yes, for different size, it just need to change the nail mould.
--3--Q: What's the material waste during the production for nails?
A: The wastage is less than 1%, one ton wire can make about 990kg nails.
--4--Q: What's the guarantee of the machine?
A: We will provide 2 years warranty. 100% responsible within 24hrs timely response.
--5--Q: How long is your delivery time?
A: Generally 10 days if in stock. Or 15days if out of stock.
--6--Q: How to pack the machines?
A: For the packaging, usually use the export standard wooden box or whole container.
