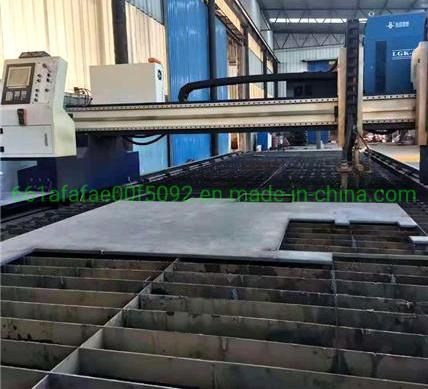

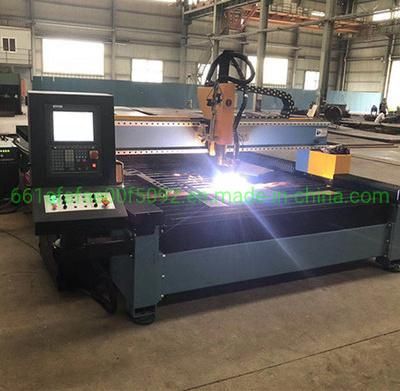

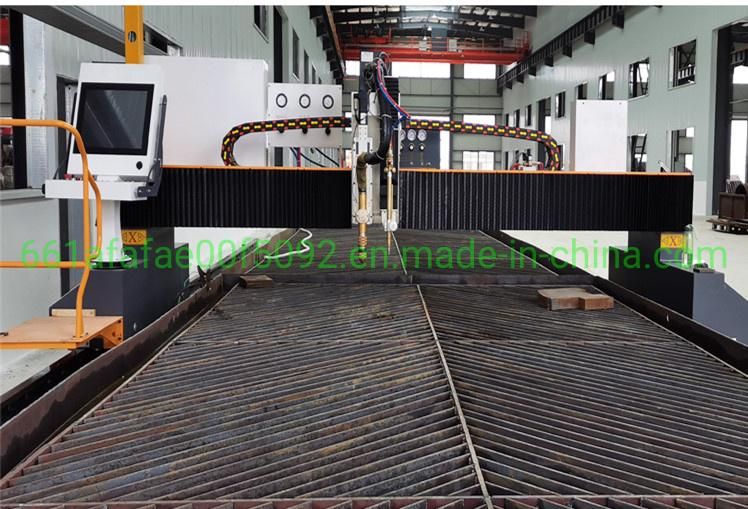

CNC Metal Plasma Flame Cutting Machine with 1500*3000 mm Table
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Overseas Engineer
- Warranty：12 Months
- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
Base Info
- Model NO.：CNCT-1530
- Cutting Mode：Gas Cutting
- Model：Cnct-1530
- Cutting Source：Flame Acetylene Gas or Liquefied Gas
- Control Mode：CNC
- Control System：F 2100 B
- Plasma Cutting Speed：3500 mm,Min
- Weight：1500 Kg
- Motor Type：Servo Motor
- Flame Cutting Speed：1000 mm,Min
- Input Voltage：380 V~440 V 50,60 Hz
- Core Components：Bearing, Gear, Motor
- Cutting Power：China Lgk or USA Hypertherm
- Nesting Software：Fastcam
- Driven System：Full-Digital AC Servo System
- Horizontal Guide Rail：Double Axle Core Linear Guide Rail
- Control System Language：Chinese,English
- Transport Package：Standard Package
- Specification：Flame Acetylene Gas or Liquefied CNC cutter
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8461909000
- Production Capacity：1000 PCS,Year
Description
Features:

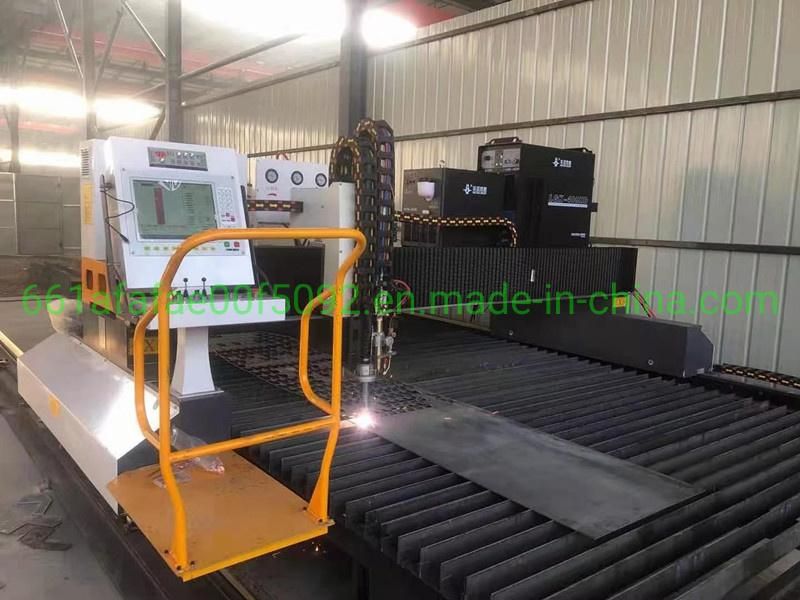

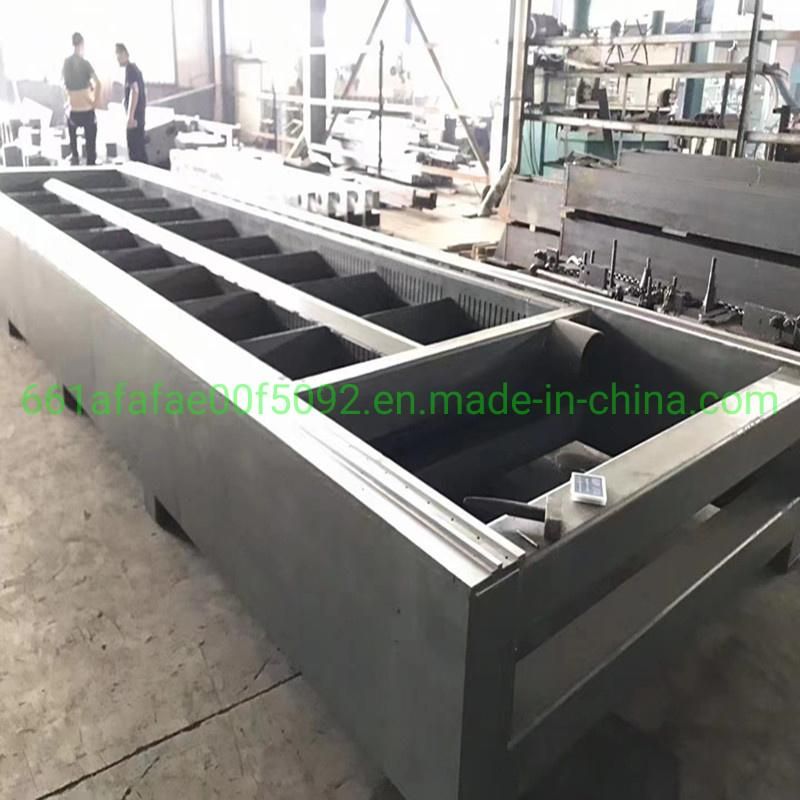

1. The CNC plasma flame desktop cutting machine adopts a heavy-duty frame, double-sided drive, good dynamic performance, and stable operation of plasma or flame cutting

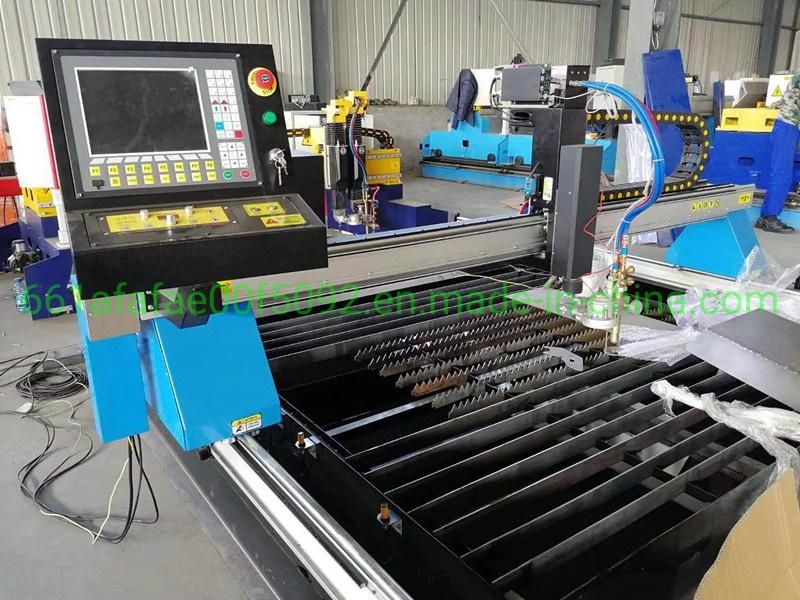

2. The CNC system F2100B/C is easy to operate and easy to use, and can realize real-time processing of various graphics and characters
3. The lifting body adopts aluminum alloy structure, the lifting guide adopts linear guide rail, and the lifting and lifting adopts ball screw lifting
4. Stepper motor driver, high precision, long life, stable operation of the whole machine
7 grade high-precision rack has been finely ground, which greatly reduces the error of the machine. Using blackening process, not easy to rust
6. SBR linear guide, with high precision, ultra-quiet, maintenance-free effect
7. The engineering drag chain used for fixing has the characteristics of high temperature and low temperature resistance, UV protection and long life.
8. Plasma torch for easy cutting of thick plates
Shipping list
| No. | Name | Details | Unit | Qty |
| 1 | CNC cutting machine host | Bilateral drive, one-time track adjustment molding | set | 1 |
| 2 | CNC system | Shanghai Jiaotong University F2100B | set | 1 |
| 3 | Servo drive | Matsushita | set | 3 |
| 4 | rack | Class 7 accuracy | M | 3 |
| 5 | Engineering towline | High temperature resistance, low temperature resistance, UV protection, long life | set | 2 |
| 6 | Nesting software | startcam | set | 1 |
| 7 | USB stick | 8G | set | 1 |
| 8 | multifunctional toolbox | set | 1 | |
| 9 | Consumables | set | 10 |
