High Speed M6 M8 M10 Nut Former Machine
HARBIN RAINBOW TECHNOLOGY CO., LTD.- Warranty：1 Year
- Color：Green, Grey, Customized
- Transport Package：Seaworthy Packing
- Specification：6 FORGING STATIONS
- Trademark：JX11B-6S,JX14B-6S,JX17B-6S,JX19B-6S,JX19B-6SL,JX24
- Origin：China
Base Info
- Model NO.：JXR
- HS Code：8463900090
- Production Capacity：100sets,Year
Description
Basic Info.
Model NO. JXR HS Code 8463900090 Production Capacity 100sets/YearProduct Description

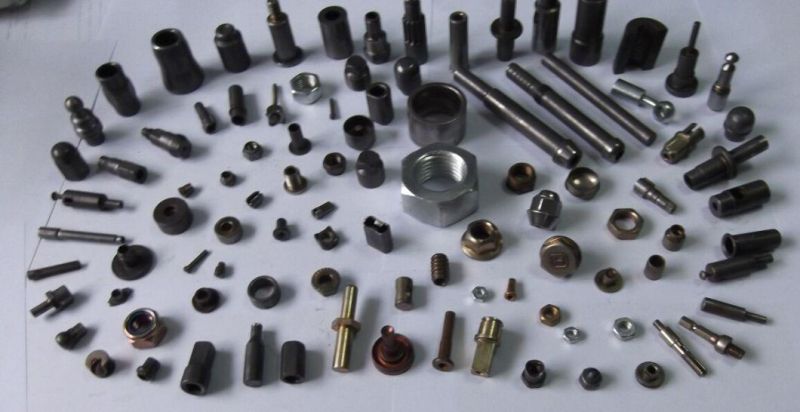

Production items:
Extra thick nut, flanged nut, motorcycle link pin, oil plug screw, hex socket lockup nut, squire nut, weld nut, cap nut, blind nut, chain roller, expansion anchor, bicycle and motorcycle shaped spare parts, and so on.
6 Station Nut former:
| MODEL | FORGING STATION | MAX. FORGING DIA.(mm) | CUT-OFF DIA. (mm) | PRODUCT SIZE | FORGING LENGTH (mm) | DIE PITCH (mm) | SLIDER STROKE (mm) | OUTPUT (per.min.) | MAIN MOTOR (HP) | WEIGHT (T) | DIMENSION (cm) |
| JXR08B-6S-12 | 6 | 8 | 8 | M4-M5 | 12 | 38 | 40 | 175/350 | 10 | 3.5 | 195×135×130 |
| JXR11B-6S-14 | 6 | 11 | 10 | M5-M6 | 14 | 50 | 60 | 120/240 | 15 | 4.3 | 230×155×135 |
| JXR11B-6SL-20 | 6 | 11 | 10 | M5-M6 | 20 | 50 | 65 | 110/200 | 20 | 4.5 | 230×155×135 |
| JXR11B-6SL-35 | 6 | 11 | 10 | M5-M6 | 35 | 50 | 125 | 110 | 20 | 4.5 | 230×155×135 |
| JXR14B-6S-18 | 6 | 15 | 14 | M6-M8 | 18 | 60 | 70 | 75/160 | 20 | 8 | 300×195×175 |
| JXR14B-6SL-30 | 6 | 15 | 14 | M6-M8 | 30 | 60 | 100 | 85/160 | 30 | 8 | 300×198×175 |
| JXR14B-6SL-50 | 6 | 15 | 14 | M6-M8 | 50 | 60 | 160 | 85 | 30 | 8.5 | 300×198×175 |
| JXR17B-6S-20 | 6 | 17 | 17 | M8-M10 | 20 | 70 | 80 | 65/130 | 20 | 10 | 350×220×185 |
| JXR17B-6SL-50 | 6 | 17 | 17 | M8-M10 | 50 | 70 | 160 | 80 | 40 | 10.5 | 360×220×185 |
| JXR17B-6SL-70 | 6 | 17 | 17 | M8-M10 | 70 | 70 | 220 | 80 | 50 | 10.5 | 360×220×185 |
| JXR19B-6S-25 | 6 | 20 | 19 | M10-M12 | 25 | 80 | 95 | 95 | 40 | 10.5 | 360×220×185 |
| JXR19B-6SL-50 | 6 | 20 | 19 | M10-M12 | 50 | 80 | 160 | 75 | 50 | 16 | 380×245×196 |
| JXR19B-6SL-70 | 6 | 20 | 19 | M10-M12 | 70 | 80 | 220 | 65 | 60 | 16 | 380×235×196 |
| JXR22B-6S-30 | 6 | 22 | 22 | M12-M14 | 30 | 80 | 160 | 80 | 60 | 18 | 380×235×196 |
| JXR22B-6SL-60 | 6 | 22 | 22 | M12-M14 | 60 | 80 | 220 | 75 | 60 | 18 | 380×235×196 |
| JXR24B-6S-35 | 6 | 24 | 24 | M14-M16 | 35 | 100 | 160 | 75 | 75 | 27.5 | 550×248×270 |
| JXR24B-6SL-70 | 6 | 24 | 24 | M14-M16 | 70 | 100 | 210 | 65 | 75 | 27.5 | 550×248×270 |
| JXR27B-6S-40 | 6 | 27 | 29 | M16-M18 | 35 | 100 | 160 | 75 | 100 | 30 | 550×248×270 |
| JXR27B-6S-70 | 6 | 27 | 29 | M16-M18 | 70 | 100 | 210 | 65 | 150 | 30 | 550×248×270 |
| JXR33B-6SL-40 | 6 | 33 | 30 | M18-M20 | 35 | 140 | 160 | 70 | 150 | 45 | 650×300×280 |
| JXR33B-6SL-80 | 6 | 33 | 30 | M18-M20 | 80 | 140 | 280 | 60 | 200 | 50 | 650×300×280 |
7 Station Nut Former:
| MODEL | FORGING STATION | MAX. FORGING DIA.(mm) | CUT-OFF DIA. (mm) | PRODUCT SIZE | FORGING LENGTH (mm) | DIE PITCH (mm) | SLIDER STROKE (mm) | OUTPUT (per.min.) | MAIN MOTOR (HP) | WEIGHT (T) | DIMENSION (cm) |
| JXR11B-7SL-35 | 7 | 11 | 10 | M5-M6 | 35 | 50 | 125 | 110 | 20 | 4.8 | 230×155×135 |
| JXR14B-7SL-50 | 7 | 15 | 14 | M6-M8 | 50 | 60 | 160 | 85 | 30 | 9 | 350×198×175 |
| JXR14B-7SL-70 | 7 | 15 | 14 | M6-M8 | 65 | 60 | 220 | 70 | 40 | 9 | 350×220×185 |
| JXR19B-7S-35 | 7 | 20 | 19 | M10-M12 | 35 | 80 | 160 | 75 | 60 | 21 | 380×235×196 |
| JXR19B-7SL-70 | 7 | 20 | 19 | M10-M12 | 70 | 80 | 220 | 65 | 60 | 21 | 450×245×196 |
