• Model NO.：CNCD
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Feature：Dual Drive Portable Cutting Machine
• Effective Cutting Width：2200mm or Wider
• Effective Cutting Length：3m,4m,6m or Longer
• Torch Lift Distance：Less Than 100mm
• Machine Cutting Speed：100-30000mm,Min
• Cutting Accuracy：0.75mm
• Repeatability：0.2mm
• Quality Plasma Cutting Thickness：1-20mm
• Quality Flame Cutting Thickness：5-120mm
• Continuous Working Time of CNC Portable：24h
• Cuttable Material：Carbon Steel, Stainless Steel, Aluminum Alloy, Non
• Cutting Source：Flame Plasma Cutting Machine
• Machine Frame：Gantry Portable CNC Cutting Machine
• Machine Power：AC 220V,50Hz
• Plasma Power：AC 380V,50Hz
• Transport Package：Standard Package
• Specification：Flame Acetylene Gas or Liquefied CNC cutter
• Trademark：Lemar
• Origin：Wuxi, China
• HS Code：8456909000
• Production Capacity：1000 PCS,Year

Basic Info.

Model NO. CNCD Power Source Electric Cutting Mode Plasma Cutting Feature Dual Drive Portable Cutting Machine Effective Cutting Width 2200mm or Wider Effective Cutting Length 3m,4m,6m or Longer Torch Lift Distance Less Than 100mm Machine Cutting Speed 100-30000mm/Min Cutting Accuracy 0.75mm Repeatability 0.2mm Quality Plasma Cutting Thickness 1-20mm Quality Flame Cutting Thickness 5-120mm Continuous Working Time of CNC Portable 24h Cuttable Material Carbon Steel, Stainless Steel, Aluminum Alloy, Non Cutting Source Flame Plasma Cutting Machine Machine Frame Gantry Portable CNC Cutting Machine Machine Power AC 220V/50Hz Plasma Power AC 380V/50Hz Transport Package Standard Package Specification Flame Acetylene Gas or Liquefied CNC cutter Trademark Lemar Origin Wuxi, China HS Code 8456909000 Production Capacity 1000 PCS/Year

Product Description

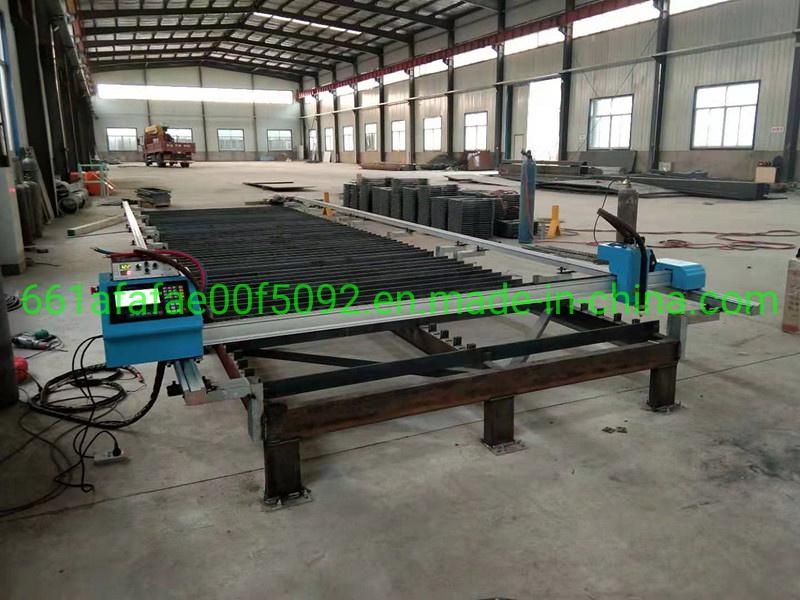

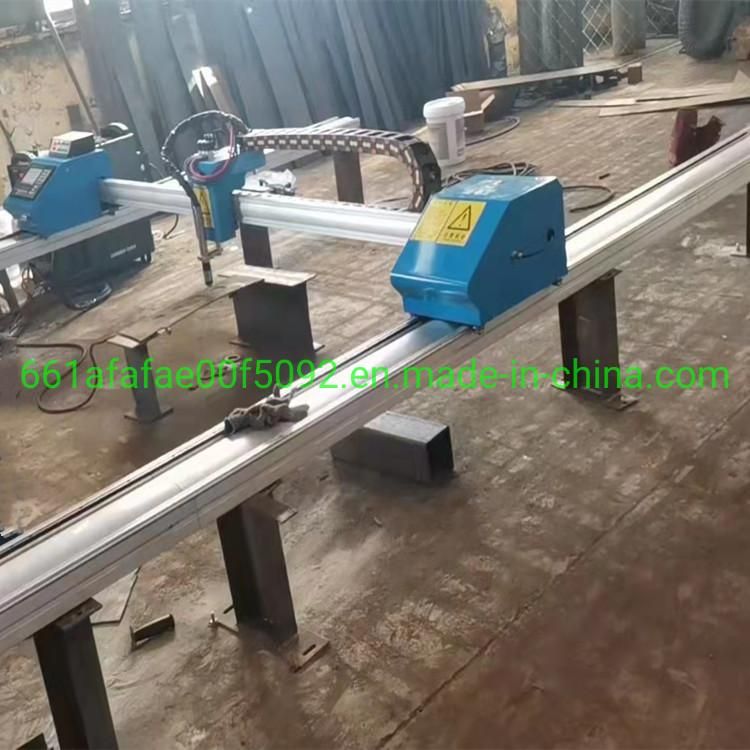

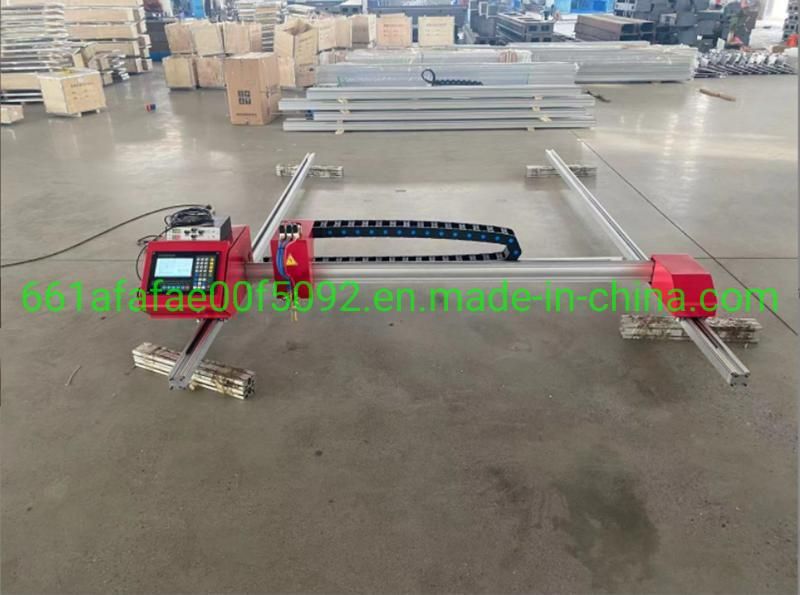

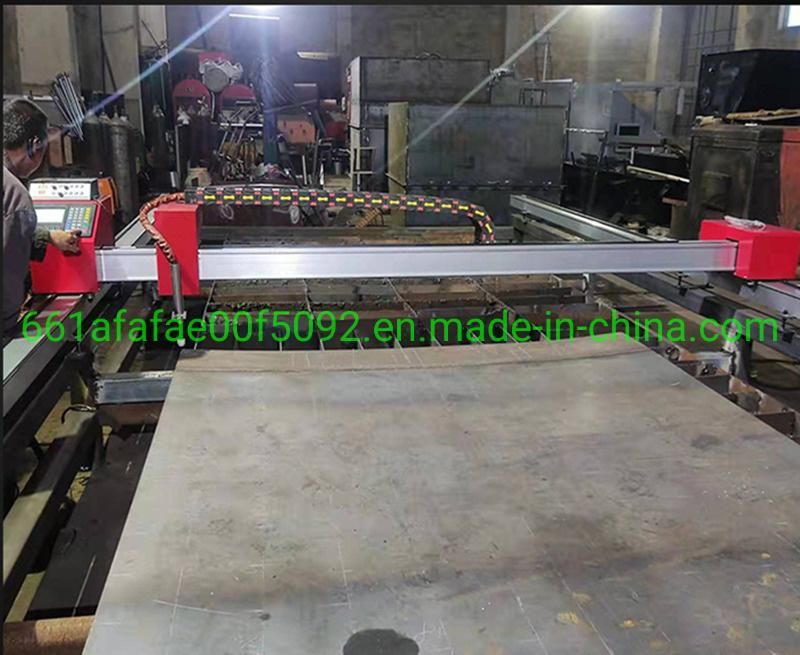

The CNC plasma flame cutting machine adopts a portable structure, with a horizontal span of up to 2.5 meters. It adopts aluminum alloy guide rails and drives on both sides.

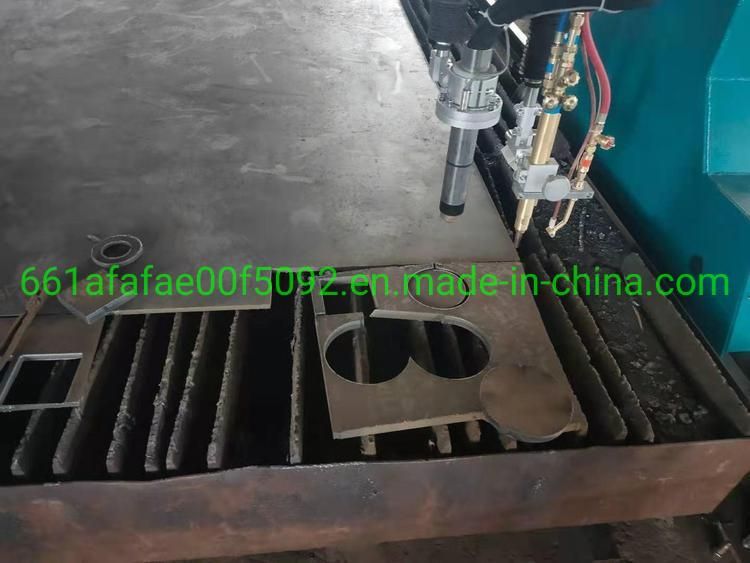

Portable CNC gantry plasma cutting machine can be equipped with flame, plasma cutting torch and automatic height adjustment system (optional) according to user requirements.

Its main features are that the control system adopts industrial computer, which can accept the import of external processing programs, and can track the graphics in time when cutting.


Specifications:


Model	CNCD-1530
Effective cutting width	1500mm
Effective cutting length	3000mm
Cutting accuracy	±0.75mm
Repeatability	±0.2mm
Torch lift distance	≤100mm
CNC Portable cutter speed	100-3000mm/min
Cutting thickness	Plasma:1-20mm
	Flame:5-30mm or more

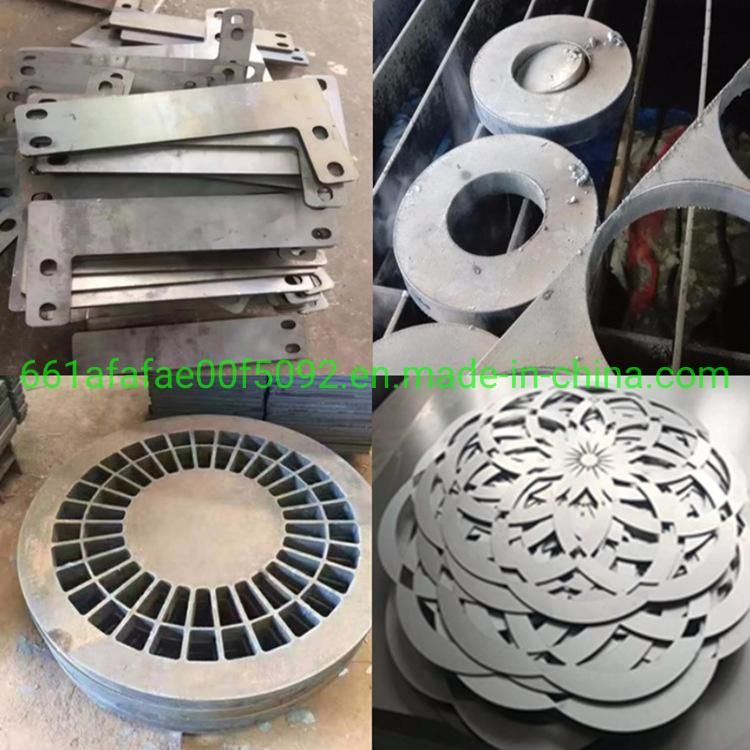

Cutting material	Carbon steel, stainless steel, aluminum, alloys, non-ferrous metals, etc.
Cutting mode	Flame cutting and Plasma cutting
Drive mode	Stepper motor drive
Lifting torch	1 pcs

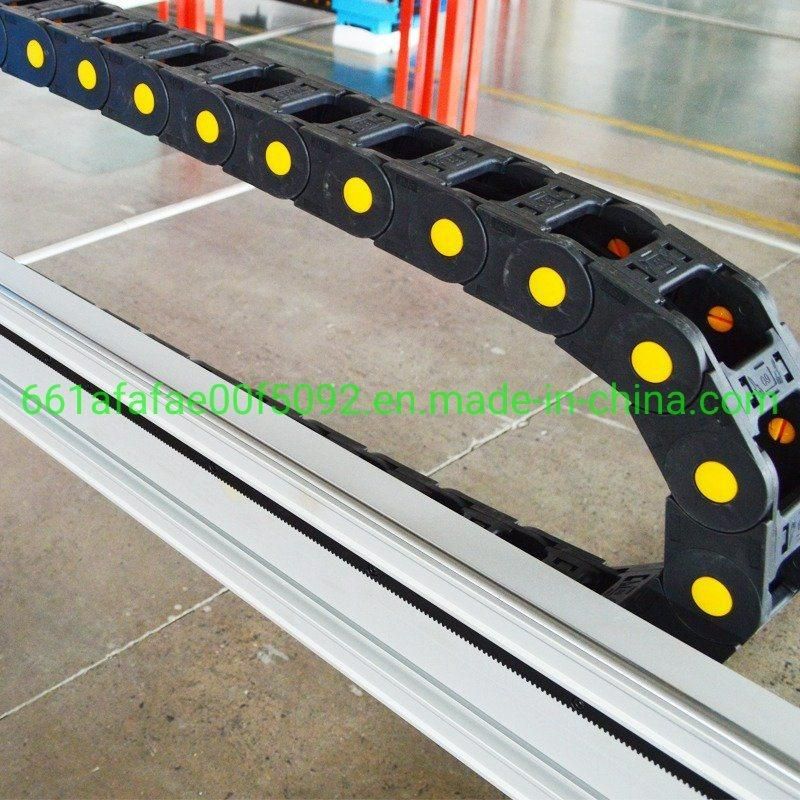

Moving mode	Stepper motor + rack and pinion + cylindrical guide
Plasma Cutting source	Optional
Power	Cutter:AC220V 50HZ
	Plasma:AC380V 50HZ
Universal Nesting Software	ProNEST or StarCam
CNC System	F2100B
Arc voltage increase	Optional
torch lift	Rack and pinion

Portable CNC Plasma Features adopts all-steel structure, and the system is designed with reliability

1.Unique cutting function: it has the functions of automatic compensation for slitting, continuous cutting after power failure, continuous retreat, recovery of breakpoints, and random positioning and cutting.
If you do not have these functions, if there is a power failure or the cutting is not transparent or missing, you can start to cut again from this point, and you don't have to cut again from the beginning, which can save time and waste materials, thereby improving work efficiency.


2. The portable CNC plasma cutting machine has the function of steel plate correction: the system can automatically position according to the placement of materials, saving materials.
The operation display of the system: It adopts the prompt method of step-by-step function windows, which is clear at a glance and easy to learn

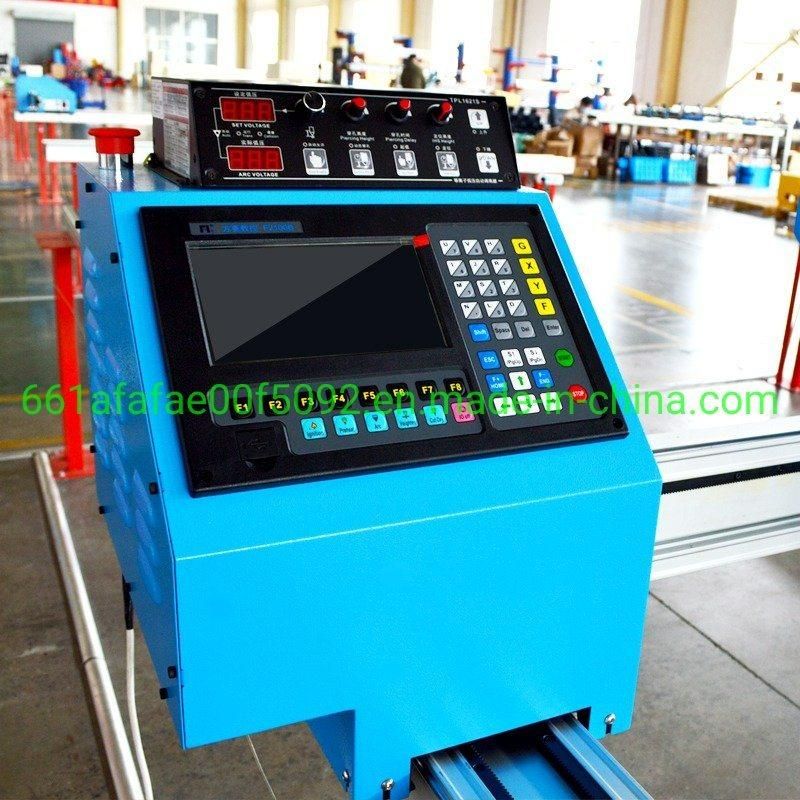

3. 10.4-inch high-resolution LCD screen, white characters on a blue background, dynamic/static processing graphics display, graphics zoom in or out, and dynamic tracking of cutting points in the zoomed-in state


 4.The whole Chinese or English menu system is convenient for domestic and foreign customers to operate and use
The file can be directly scaled, rotated, mirrored, and arranged in a matrix on the CNC system of the CNC plasma cutting machine F2100B, which is convenient for users and saves the user's re-layout time



5.The front U disk interface is convenient for program transfer and system upgrade.
And CNC portable type and dual drive plasma flame gas cutting machine is also equipped with an anti-USB extension cable to prevent the system U disk interface from being damaged due to multiple unplugging and unplugging for a long time.


6.Multiple files can be imported and exported at one time, saving disk reading time.
Portable cnc plasma and flame gas cutter has parameter backup function to prevent parameter loss due to improper operation, and system parameters can be restored at any time


7.Support oxygen gas, plasma cutting mode. Oxygen gas and plasma input and output are controlled separately and do not affect each other.
It supports edge cutting and reduces the number of perforations, thereby protecting the cutting nozzle, saving time, improving efficiency and reducing costs


8.According to the thickness of the steel plate, the speed can be automatically limited at the corners, which can effectively prevent over-burning and ensure the cutting quality
