• Model NO.：COLO-1218
• Condition：New
• Application：Powder Coating
• Worksize Dimensions：1100width X 1800 Height X 1200 Depth
• Power Supply：Electric, 16kw
• Warm-up Time：15-30 Min.
• Temperature：180-250′c
• Name：Customized Electric Powder Paint Oven
• Voltage：220,380V 3phase
• Frequency：50-60Hz
• After Sales Servi⪞es Provided：Engineer Is Available to Service
• Transport Package：Bulk
• Specification：CE
• Trademark：COLO
• Origin：China
• HS Code：8424909090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. COLO-1218 Condition New Application Powder Coating Worksize Dimensions 1100width X 1800 Height X 1200 Depth Power Supply Electric/ 16kw Warm-up Time 15-30 Min. Temperature 180-250′c Name Customized Electric Powder Paint Oven Voltage 220/380V 3phase Frequency 50-60Hz After Sales Servi⪞es Provided Engineer Is Available to Service Transport Package Bulk Specification CE Trademark COLO Origin China HS Code 8424909090 Production Capacity 100PCS/Month

Product Description

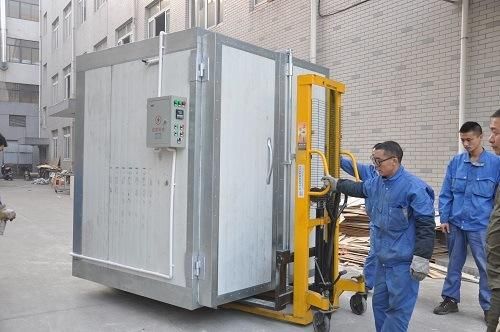

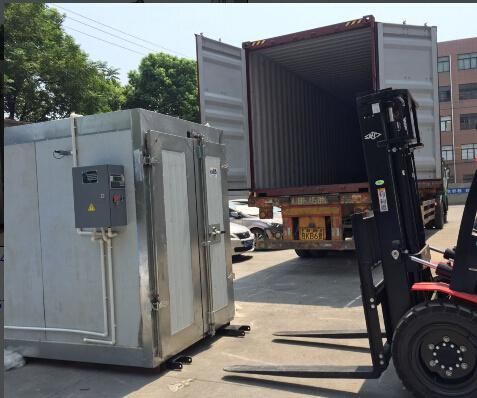

              COLO-1218 Customized Electric Powder Paint Oven
Working size: 1100width x 1800 height x 1200 depth

Design Instruction:
- Control Panel: provides high precision heating process, with temperature alarm, could set baking time and temperature, when baking time arrive,it will stop automaticly,
.
- Circulation fan motor provide enough air flow, curing a very good tempreture uniformity result.

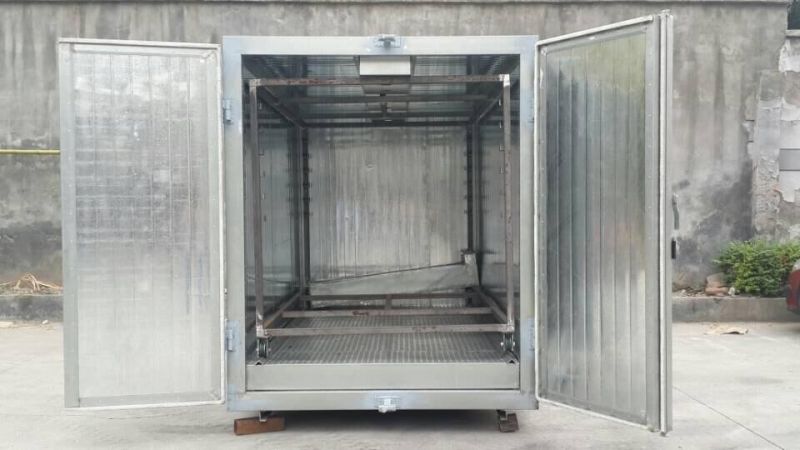

- Frame trolley: to Load the objects in and out

- Outside is stainless metal ,inside is galvanized steel,interlayer is heat-insulation rock wool board.




Technical Data:

Model	Colo-1218
Worksize dimensions	1100width x 1800 height x 1200 depth
Power supply	Electric/ 12kw
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3-5°C
Temperature max.	250° C
Ventilation performance	805-1677m3/h
Motor power	0.75kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Trolley
Warranty	12 months

After sales service:
Part 1: we will supply complete related instruction in operate, and if you need, engineer is available to overseas to trian your worker and install the device.

Part2: our warranty can be 12 months.

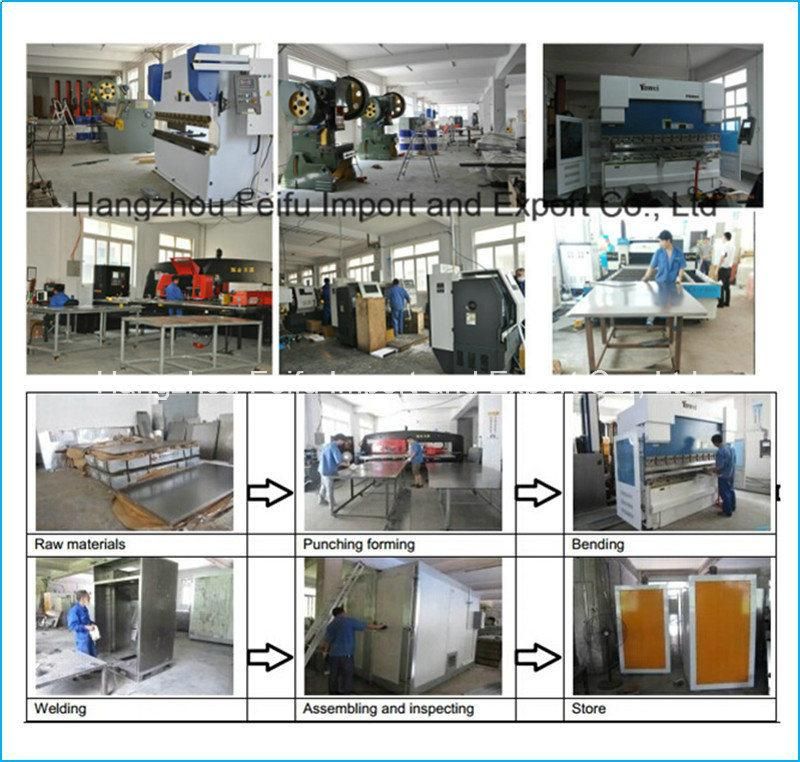

About us :
We are specialized in complete electrostatic powder coating line, paint coating plants ,curing and drying ovens, cartridge type and cyclone recovery systems, spray booth, conveyor systems, also we are supplier of powder coating machine, powder coating equipment,powder coatting gun, reciprocator, painting guns, pumps and their equipments.
