• Model NO.：ridge forming machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Product Name：Cap Ridge Roll Forming Machine
• Steel Thickness：0.4-0.6mm
• Roller Material：45# Steel
• Transport Package：No Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

NoSpecification of the material

1

Suitable MaterialColored Steel plate, Galvanized steel up 235Mpa

2

Width of the raw material400mm3Thickness0.4-0.6mm

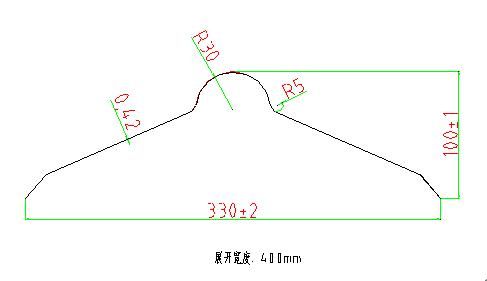

Profile drawing:

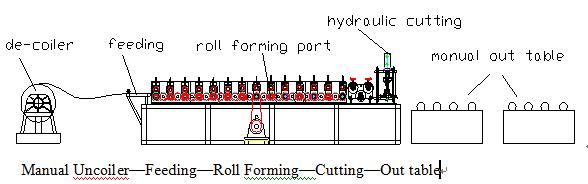

The Chart of Process Flow

Specification of Components

No Technical Specification & Remark1

Manual Uncoiler

• Width of feeding: 400mm
• Capability: 3 Ton
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

2

Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ¢56mm material: SAE1045 with tempering
• To avoid accidents, the driven parts of the machine will have the cover
• Main frame by 350H beam welding
• Machine structure: wall panel

3

Hydraulic cutting system

• Material of blade/pressing mould:Cr12, 58-62 HRC hardness
• Power by hydraulic,5.5KW
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

4

Computer Control Cabinet



• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• Control panel: Button-type switch and touch screen
• PLC brand: Panasonic
