• Model NO.：Z94 series
• Power Source：Electric
• Feature：Automation
• Certification：CCC, ISO9001, CE
• Warranty：24 Months
• Customized：Customized
• Advantage：Simple Structure
• Condition：New
• Name：Good Price Nail Making Machine High Speed Wair Na
• Video Factory Inspection：Provided
• Mechanical Test Report：Provided
• Raw Materials：Mild Steel
• Mini Nail Diameter：0.9mm
• Max Nail Diameter：5.5mm or Customize
• Mini Nail Length：9mm
• Max Nail Length：150mm or Customize
• Color：Customer Requirement
• Machine Type：Nail Making Machine
• Transport Package：Wooden Case or Suitable for Sea Shipping
• Specification：To make steel nails
• Trademark：Hongshuo
• Origin：China
• HS Code：8463300000
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. Z94 series Power Source Electric Feature Automation Certification CCC, ISO9001, CE Warranty 24 Months Customized Customized Advantage Simple Structure Condition New Name Good Price Nail Making Machine High Speed Wair Na Video Factory Inspection Provided Mechanical Test Report Provided Raw Materials Mild Steel Mini Nail Diameter 0.9mm Max Nail Diameter 5.5mm or Customize Mini Nail Length 9mm Max Nail Length 150mm or Customize Color Customer Requirement Machine Type Nail Making Machine Transport Package Wooden Case or Suitable for Sea Shipping Specification To make steel nails Trademark Hongshuo Origin China HS Code 8463300000 Production Capacity 300 Sets Per Month

Product Description

Good Price Nail Making Machine High Speed  Wair Nail Making Machine

I. Product description
This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact
characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are
suitable for high speed studs for welding machine and nail gun.

II. The process of nail making

Wire rod--wire drawing--nail making--nail polishing---finished nails.

III. Parameters & Photos of machines

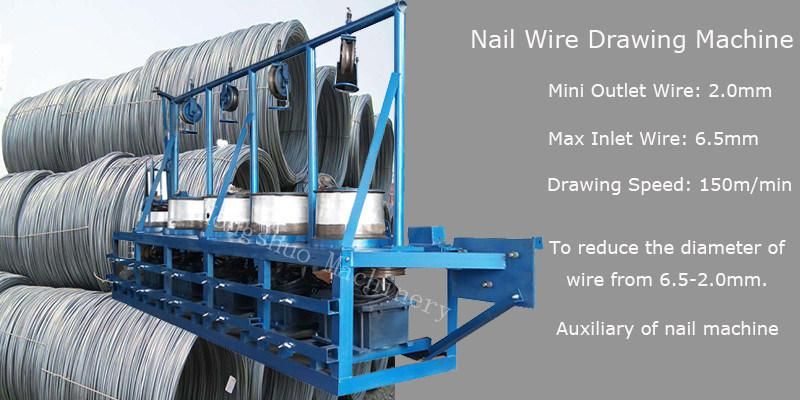

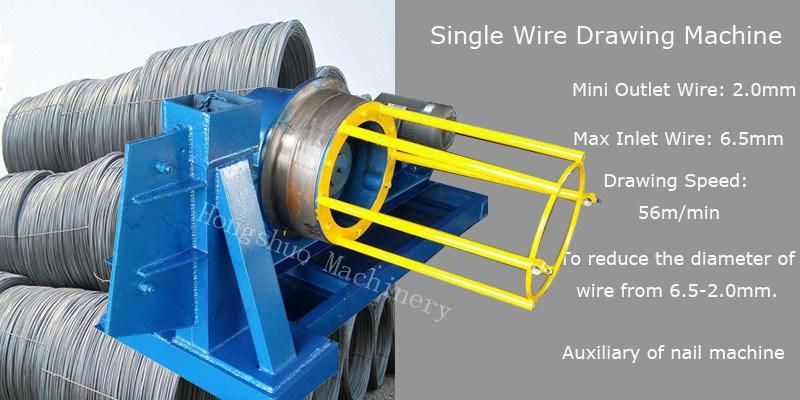

3.1Wire drawing machine

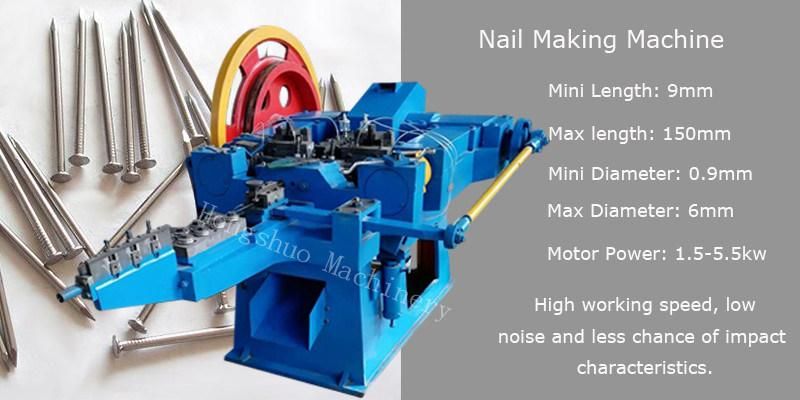

3.2Nail making and polishing machine

Model	Z94-5.5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Max. dia. of nail	5.5mm	4.5mm	3.5mm	2.8mm	1.6mm
Min. dia. of nail	3.8mm	2.8 mm	1.8 mm	1.2 mm	0.9 mm
Max. Length of nail	150mm	100mm	75mm	50mm	25mm
Min. length of nail	80mm	50 mm	30mm	16mm	9mm
Motor power	5.5kw	4kw	3kw	2.2kw	1.5kw
Nail making speed	220pcs/min	260pcs/min	320pcs/min	380pcs/min	450pcs/min
L*W*H	2.5*1.6*1.5m	2.2*1.6*1.65m	2.0*1.4*1.4m	1.7*1.3*1.4m	1.5*1.3*1.2m
Weight	2.1tons	1.8 tons	1.5 tons	1.15 tons	0.8 ton
Output	2000kg/8h	1500kg/8h	800kg/8h	500kg/8h	80kg/8

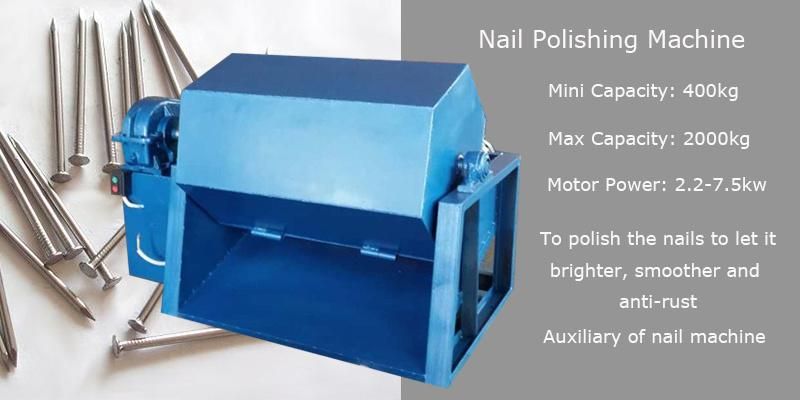

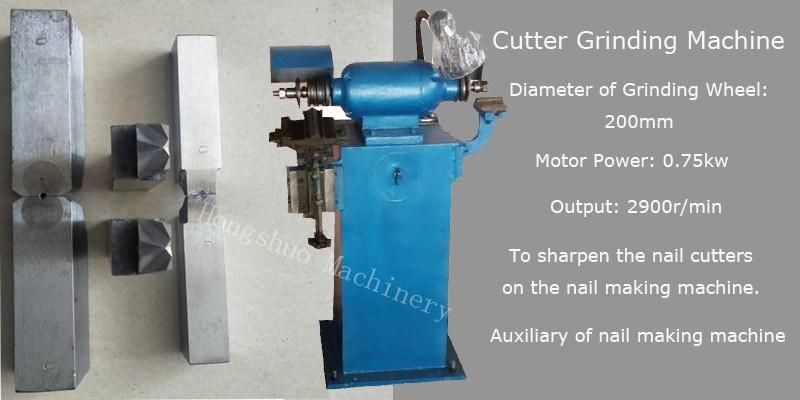

3.3 Auxiliary of nail making machine

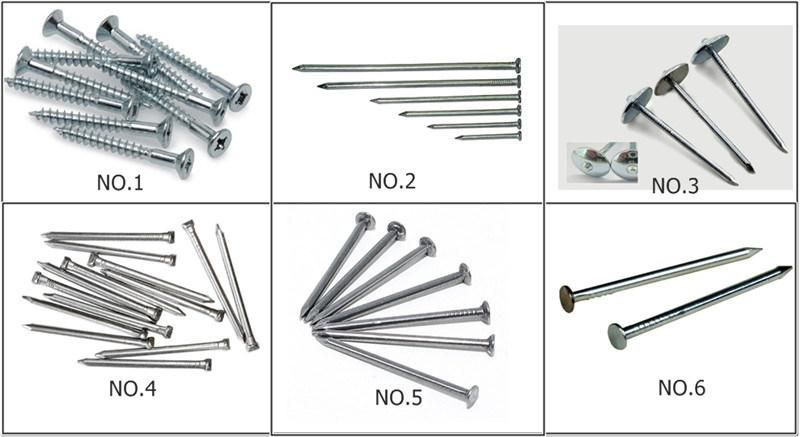

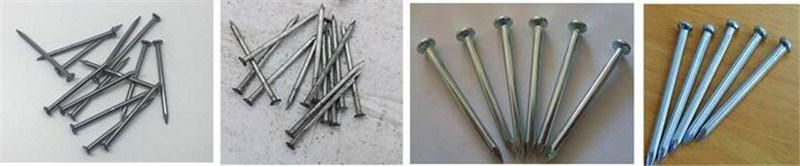

IV:End Products

V: Company Profile

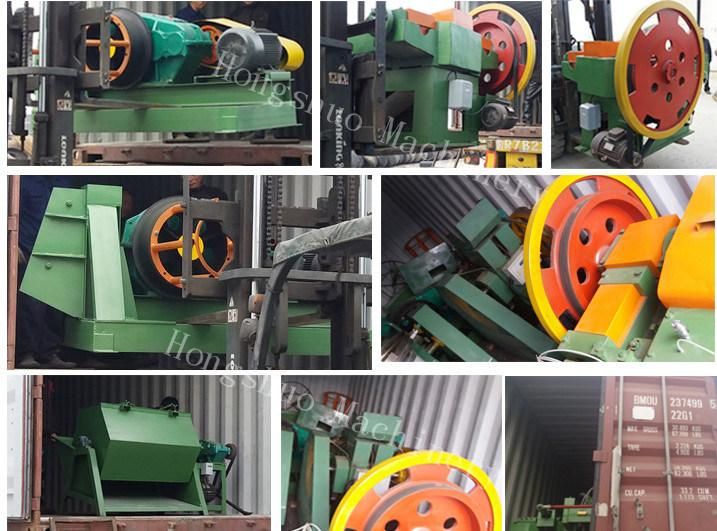

VI: Loading Photos


For more details, welcome to contact at any time !
