Automatic CNC Channel Letter Bending Machine with High Accuracy and Quality

Shandong Yuantong Century Intelligent Technology Co., Ltd.
  • Working Principle：Auto Feeding, Slotting and Bending
  • Availabe Material：Aluminum
  • Slot Angle：45°-135°(Just for Aluminum)
  • Bending Radius：≥10mm
  • Max Processed Width：≤128mm
  • Material Thickness：Aluminum 0.3-1.5mm

Base Info

  • Model NO.：BWZ-B1
  • Machine Power：≤1500W
  • Machine Size：≤1500W
  • Machine Weight：320kg
  • After-Sale Service：Engineer Speaking English Available
  • Transport Package：Standard Export Package Which Can Protect Machine
  • Specification：CE
  • Trademark：BaoYuanTong
  • Origin：Weifang, China
  • HS Code：84798190
  • Production Capacity：200sets,Month

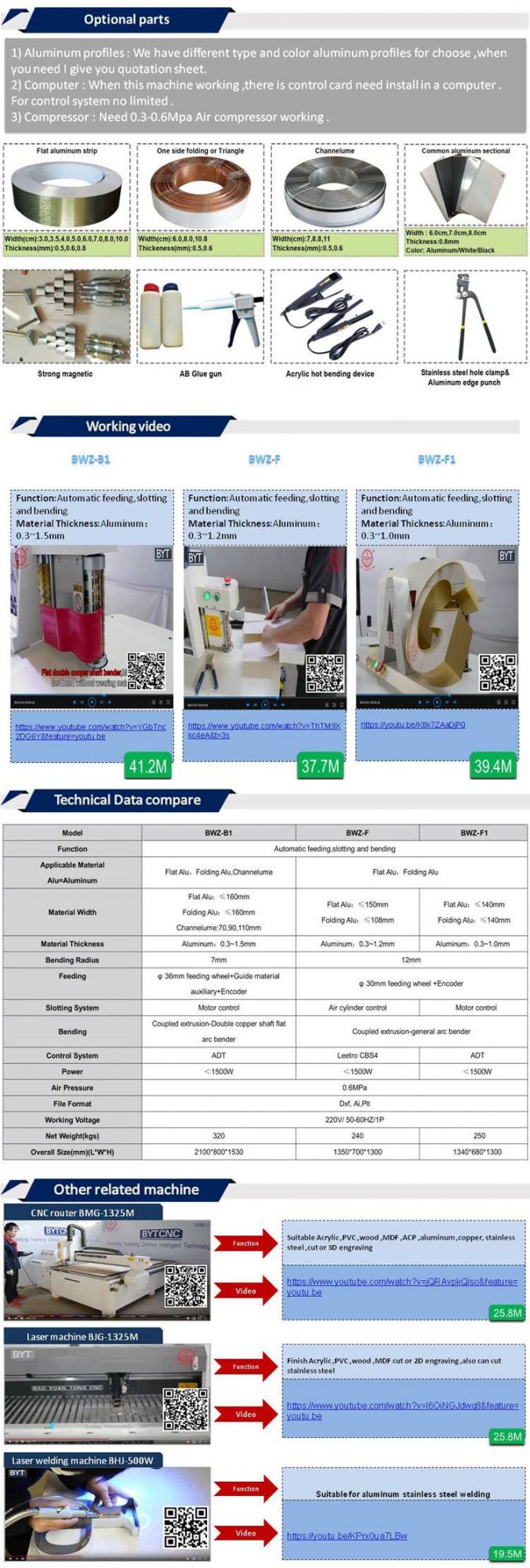

Description

Model

BWZ-B1

 BWZ-F BWZ-F1

Function

Automatic feeding,slotting and bending

 Automatic feeding,slotting and bending

Automatic feeding,slotting and bending

Applicable Material

    Alu=Aluminum

      Flat Alu,Folding Alu,Channelume

         Flat Alu,Folding Alu         Flat Alu,Folding Alu

   Material Width

             Flat Alu:≤160mm

           Folding Alu:≤160mm

        Channelume:70,90,110mm

         Flat Alu:≤150mm

       Folding Alu:≤108mm

          Flat Alu:≤140mm

        Folding Alu:≤140mm

Material   Thickness

 Aluminum:0.3~1.5mm

Aluminum:0.3~1.2mm

Aluminum:0.3~1.0mm

 Bending Radius 7mm 12mm

12mm

 Feeding       φ36mm feeding wheel+Guide material                             auxiliary+Encoder     φ30mm feeding wheel +Encoder

          φ30mm feeding wheel +Encoder

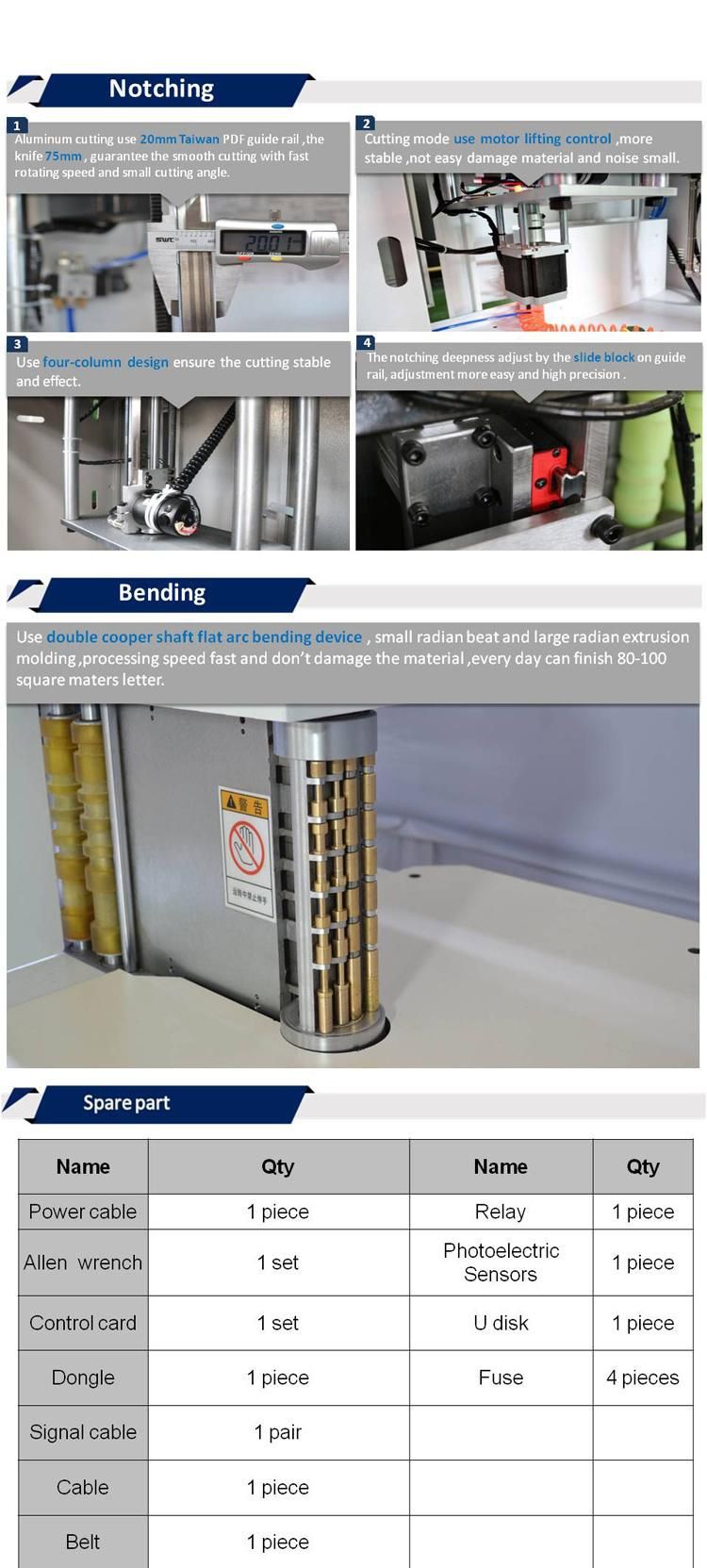

 Slotting System   Motor control

Air cylinder control

Motor control



          Bending

 Coupled extrusion-Double copper shaft flat arc bender Coupled extrusion-general arc bender Coupled extrusion-general arc bender     Control SystemADTLeetro CBS4ADT          Power<1500W<1500W<1500W       Air Pressure0.6MPa0.6MPa0.6MPa         File FormatDxf, Ai,PltDxf, Ai,PltDxf, Ai,Plt Working Voltage220V/ 50-60HZ/1P220V/ 50-60HZ/1P220V/ 50-60HZ/1P Net Weight(kgs)320240250 Overall Size(mm)(L*W*H)2100*800*15301350*700*13001340*680*1300
