• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Coil Thickness：0.4-0.7mm
• Roller Grinder Milling：Cr12 Mould Steel with Quench Treatment
• Diameter of Shaft for Rollers：72mm
• Main Power：7.5kw
• Voltage：380V,50Hz,3phase
• Control System：Mitsubishi PLC
• Transport Package：40gp
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：Hangzhou
• HS Code：84552210
• Production Capacity：10sets,Month

ItemSpecificationMaterialTypePre-painted steel coil & galvanized coilsThickness (mm)0.4-0.7Yield strength (mpa)235Roller material45#Chrome steelForming speed(m/min)About 20Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)7.5 kw (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)9.7 kwUncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 11.4*1.655*1.6m (Depend on final design)
Components of machineDecoiler

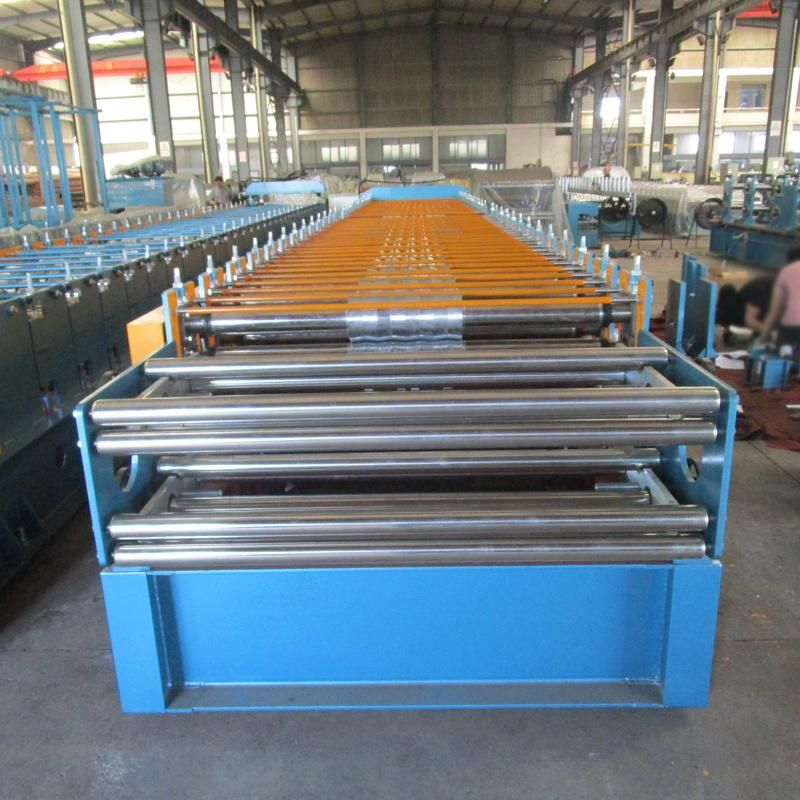

(manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table







Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.


Why us?
1.  Manufacturing roll forming machine since 2003
2.  With ISO,SGS,BV and CE certificate
3.  1 year quality warranty
4.  Introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
5.  Technician can be sent to your factory to install the machine and train your workers
6.  Export to more than 20 countries.



Customers Visit


 FAQ:

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).

Get Free:
Provide profile drawing & design technical support FOR FREE!


Contact Us:



Website:cnzhongyuan.en.made-in-china.com
Factory Address:No. 228 Yongli, Nanyang Street, Xiaoshan District, Hangzhou, Zhejiang, China
