• Model NO.：GB-S
• HS Code：84633000
• Production Capacity：1000pieces,Years

Basic Info.

Model NO. GB-S HS Code 84633000 Production Capacity 1000pieces/Years

Product Description

High Speed Screw Nail Making Machine, Automatic Nail Rolling Machine

About us:


ONE-STOP WIRE&NAIL MAKING MACHINERY EXPERT(Skilled in kinds wire&nail making project)

Wuxi shenda nail machienry factory professional manufactures nail making machine, wire drawing machine and High speed nail rolling machine,High speed coil nail welding machine,the accessory equipments since 1995
Capacity 1000pcs per year, customers cover Africa ,middle East, Asia,and latin-America ariea.
Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.
Advatage product:High speed rolling machine,high speed coil nail welding machine,Roofing nail making machinery;Blind rivet nail making machinery;Concrete nail making machinery;Barbed wire machine;Coil nail welding machine;High speed rolling machine

Machine Specification:

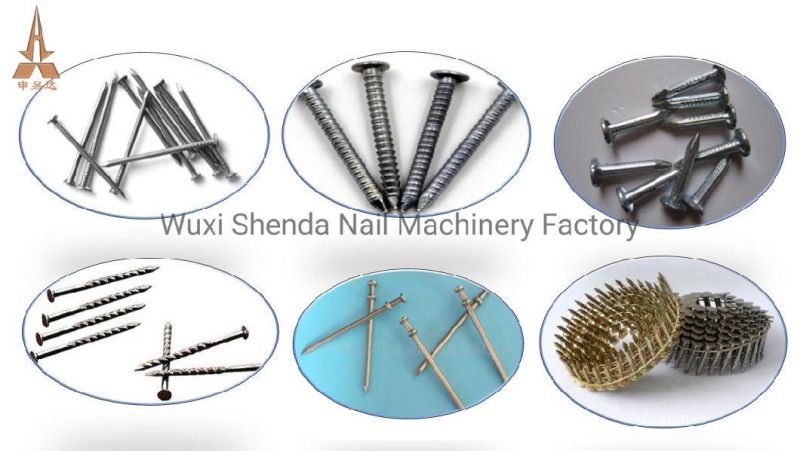

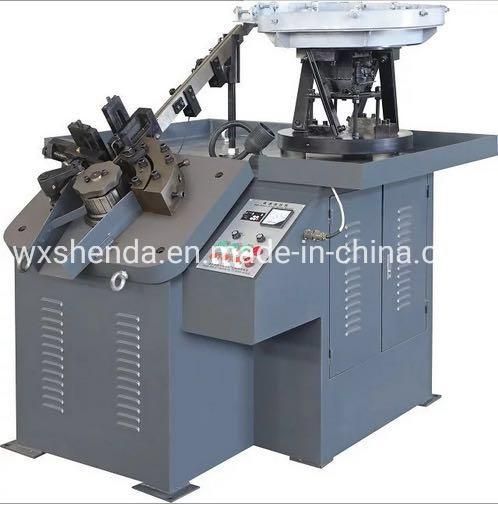

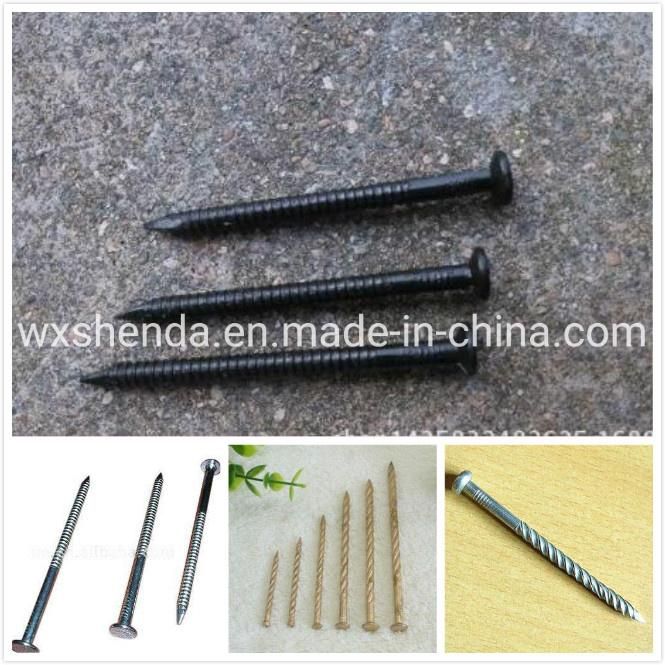

High speed thread rolling machine/Nail twisting machine is a product designed and improved by our factory by integrating the advantages of the same kind of products at home and abroad, keeping a leading position among the same kind of products at home. This machine is mainly used for processing the threaded nail, annular threaded nail and other new and special nails.


Thread rolling dia	2.0-4.1mm
Nail length	30-90mm
Production rate	500-1000 poa/min
Main motor power	3.0kw
Vibrate hopper capacity	5.0kg
Total weight	1300kg
Overall(LxWxH)	1300x1300x1500mm

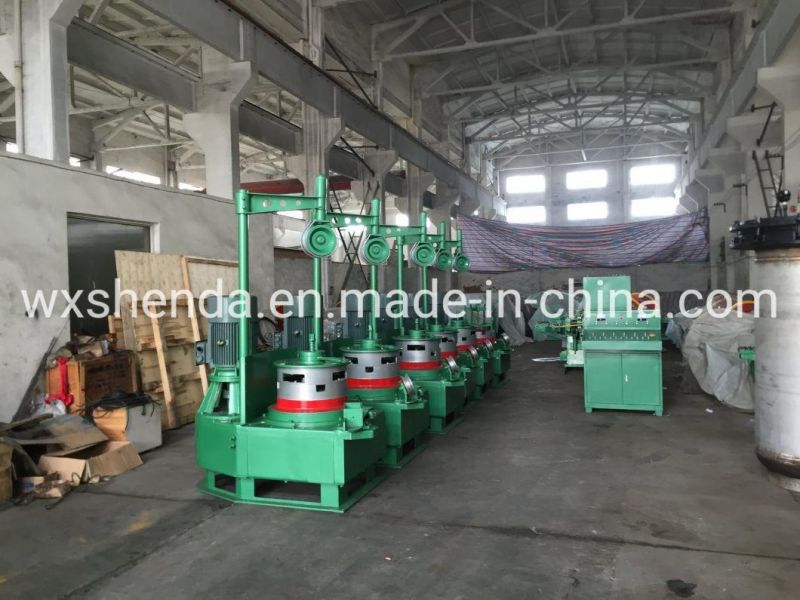

Nail making related wire drawing machine (for material drawing)

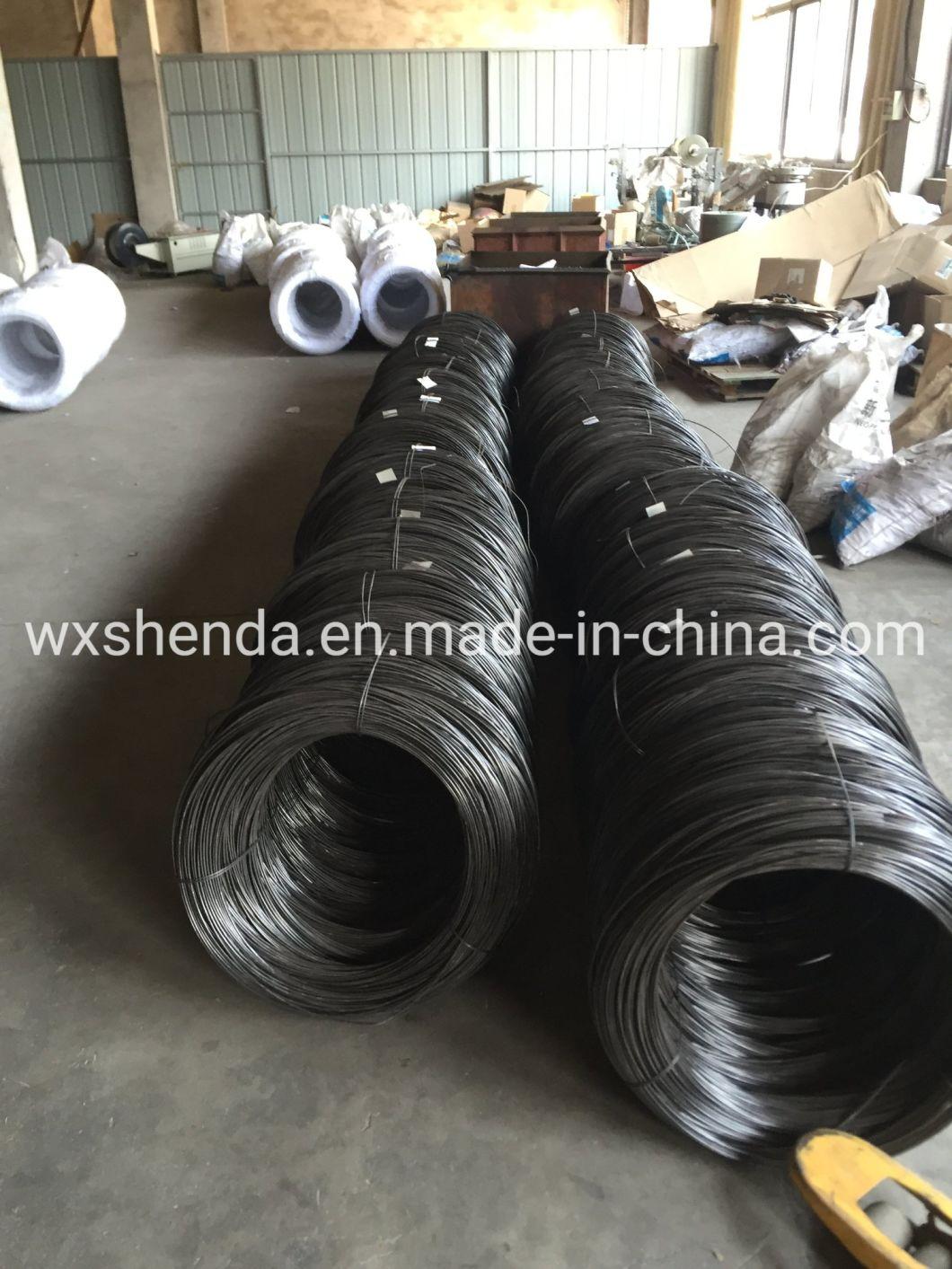

Material:Q195steel/SAE1006/1008/1010/1012steel


Model	LW-1-6/560	LW-1-7/450	LW-1-6/350
Material intensity	δb≥110kg/mm2	128kg/mm2	δb≥140kg/mm2
Max diam of material	6.5mm	3.4mm	2.5mm
Min diam of material	2mm	1mm	0.75mm
Diam of block	1-6/560	1-7/450	1-6/350
Max average condensation	30%	20%	21%
Total condensation	78-88.5%	77.90%	78%
Max.speed of block	245m/min	346.9m/min	200m/min
Total power	18.5-30kw	7.5-11kw	7.5-11kw
Weight	2000kg	1500kg	1000kg
Overal size	1700x1150x1750mm	1520x810x1700mm	1400x800x1500mm

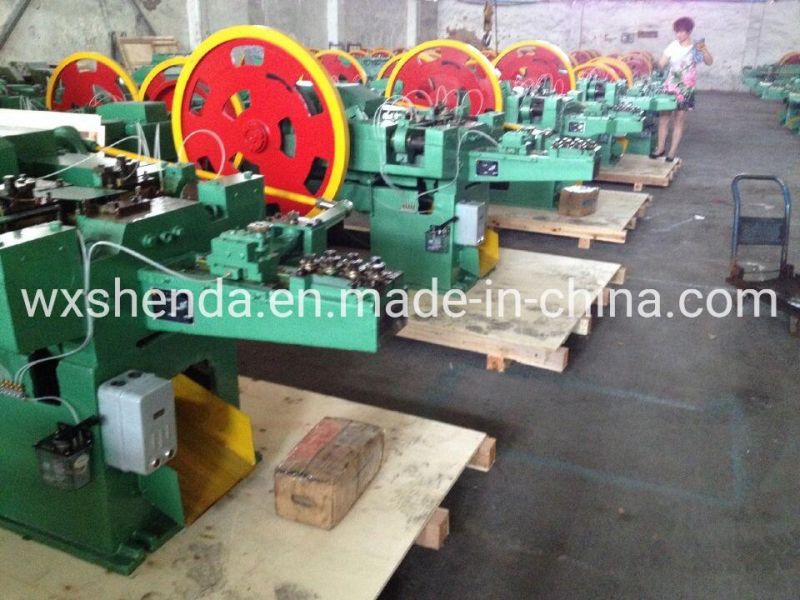

Nail making machine for different size



parameter	unit	Z94-6.5C	Z94-5.5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Dia of nail max	mm	6.5	5.5	4.5	3.4	2.8	1.6
Dia of nail min	mm	4.5	3.7	2.8	1.8	1.2	0.9
Length of nail max	mm	200	150	100	80	50	25
Length of nail min	mm	100	80	50	30	16	9
Dsigned out put	pcs/min	160	200	260	320	350	450
Moter power	kw	11	5.5	4	3	2.2	1.5
Weight(approx)	kg	5000	2500	2000	1400	1200	560
Overall dimensions	mm	3200x2200x2200	2800x1800x1800	2200x1600x1650	2000x1400x1400	1700x1300x1400	1500x1300x1200

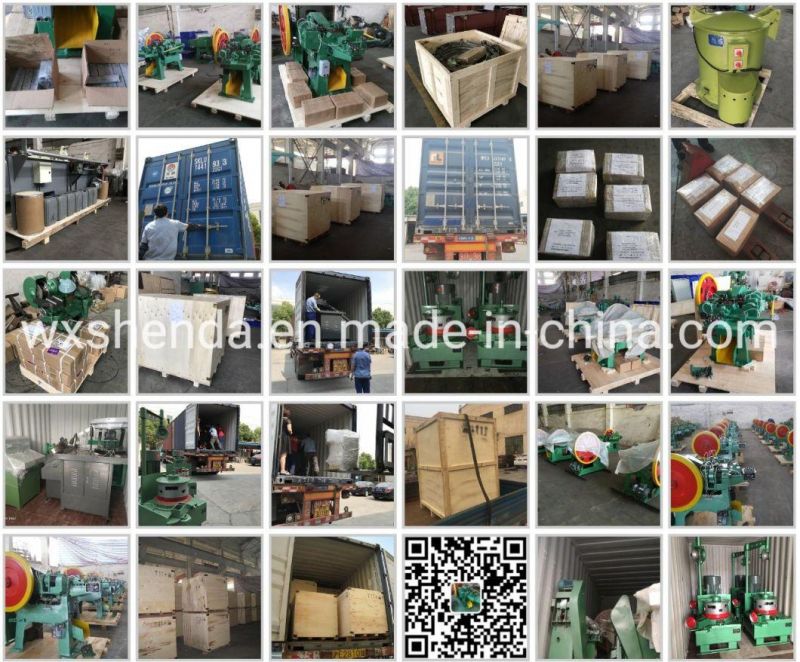

For our wire&nail making machine packing and delivery
