• Model NO.：WX-601
• Warranty：1 Year
• Carton：68.5X47.5X59cm
• Weight：41kgs
• Delivery Time：3-5days
• Ports：Shanghai, Ningbo
• Power：50W
• Transport Package：Wooden Carton or Carton
• Specification：CE, SGS, ATEX
• Trademark：WANXIN
• Origin：China
• HS Code：84243000
• Production Capacity：50 Sets,Day

Basic Info.

Model NO. WX-601 Warranty 1 Year Carton 68.5X47.5X59cm Weight 41kgs Delivery Time 3-5days Ports Shanghai, Ningbo Power 50W Transport Package Wooden Carton or Carton Specification CE, SGS, ATEX Trademark WANXIN Origin China HS Code 84243000 Production Capacity 50 Sets/Day

Product Description

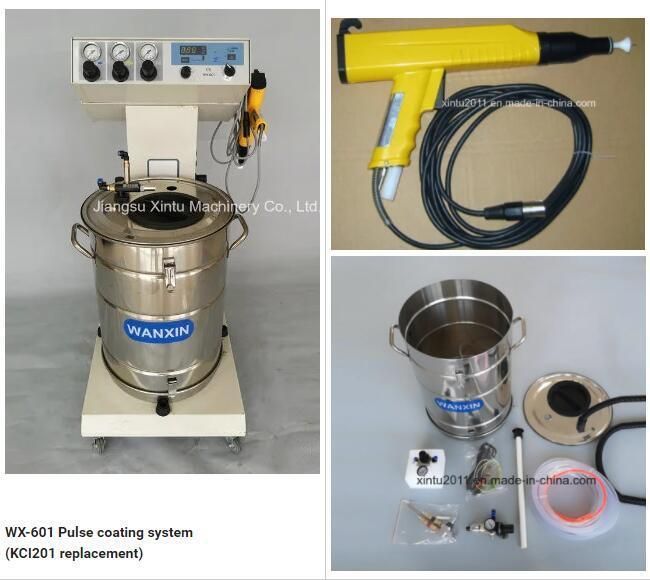

                                       Pulse type powder coating system

Model:WX-601 (KCI201 replacement)

Features :

1. Digital display for voltage
2. Pulse coating system ensures to save powder and can provide high quality of coating effects.
3. Can charge the powder continuously to coat well object's deepest corners.
4. Charge the powder with low current and high voltage .Be good for spraying on any shapes of work pieces with any kinds of powders .
5. Reduce orange peel effect significantly compare to common Electrostatic Coating .

Technical Data

Gun Weight	500g	Gun Cable	5 meters
Power source	AC 220V/110V	Frequency	50~60Hz
Power	40W	Max Output Current	150μA
Input Voltage	24V	Output Voltage	100 KV
Polarity	Negative	High Pressure Mode	Built-in
Max Power Injection	550g/min	Max Air Consumption	13Nm3/h
Pulse Frequency	15~20 Clock /S	Working Temperature Range	-10 ~45°C

Packing List
- Control Unit *1
- Powder Coating Gun *1
- Powder Hopper * 1
- Powder Injector *1
- Moving trolley*1
- Regulating Valve*1
- Oil water filter *1
- Powder Gun spare parts *1KIT
- OPERATION MANUAL*1



COMPANY Profile:

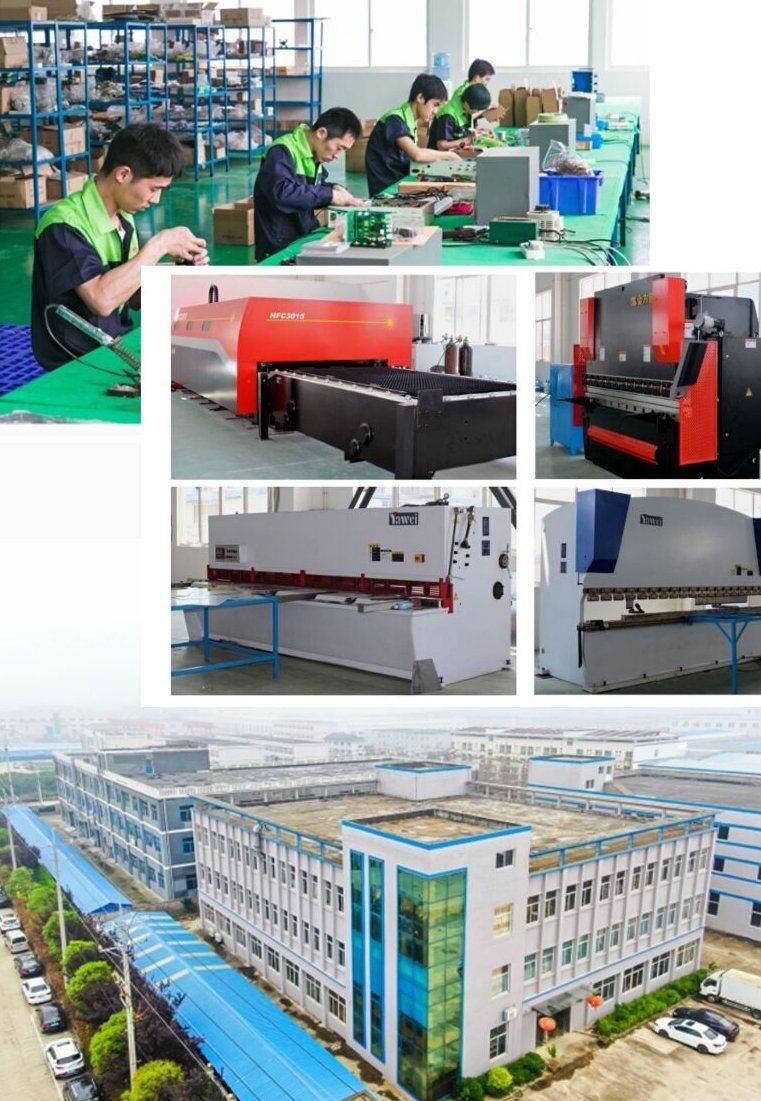

Jiangsu Xintu Machinery Co., Ltd is one of the leading Manufacturers in powder coating equipment or total line and flocking machine ,Our company found in 2011, with the factory in Jiangsu province nearby Shanghai city. it would take up a considerable 25,000square meters.
Almost 10 years experience in offering a wide variety products such as powder coating equipment,
flocking machine and their accessories, also if customers have a specific request can according to clients parameters to customized machine or line.
we have developed steady business relationship with clients from all over the world such as North America, Europe, middle East, Southeast Asia and so on.
We have experienced and skilled workers, QC team and QA system,also have ISO9001,CE,SGS certification.100%quality checking and tests before shipment.
We will offer you the most competitive price and best service!
