• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Thickness：0.25-0.6mm
• Yield Strength：Q235
• Main Motor Power：5.5kw
• Electric Condition：380V,3phase,50Hz
• Shaft Diameter：72mm Solid Steel
• Machine Size：About 11.3*0.9*1.3m
• Brand：Zhongyuan
• Quality System：ISO
• Quality Warranty：First Year Free, Lifetime Services
• Transport Package：1*40 Gp Container
• Specification：ISO; CE
• Trademark：zhongyuan
• Origin：Hangzhou City, Zhejiang Province, China
• HS Code：8455221000
• Production Capacity：15set,Month

ItemSpecificationMaterialTypeGalvanized coilsThickness (mm)0.25-0.6Yield strength (mpa)235Roller material45#Chrome steelForming speed(m/min)About 15-20mSpeed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurementEncoder Nemicon (Japan)Control modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)5.5 kw  (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)7.7 kwUncoiler's loading capacityMax. Capacity: 3000kgsMachine`s sizeAbout   (Depend on final design)

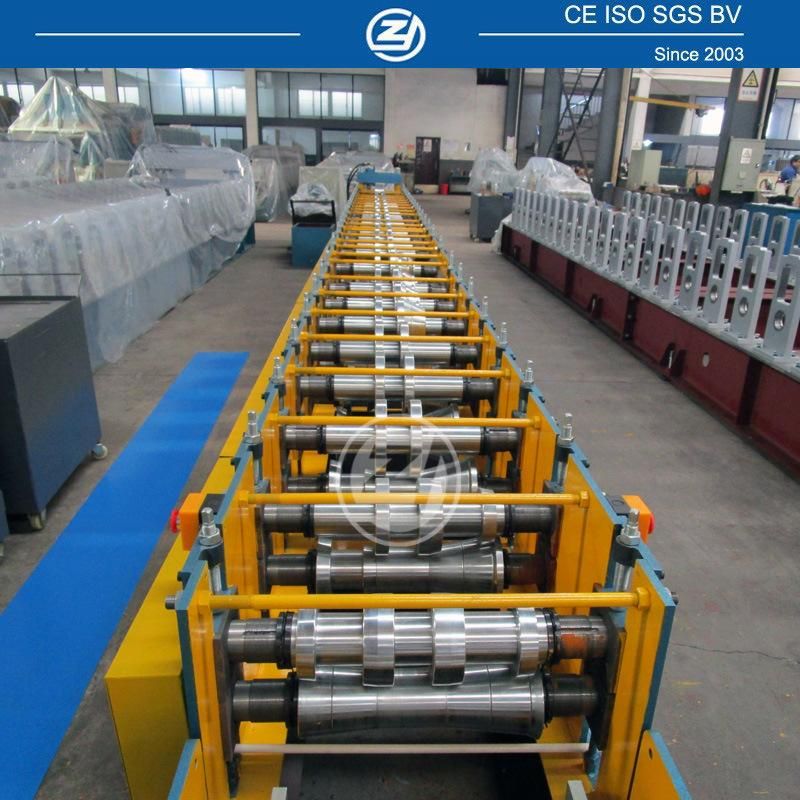

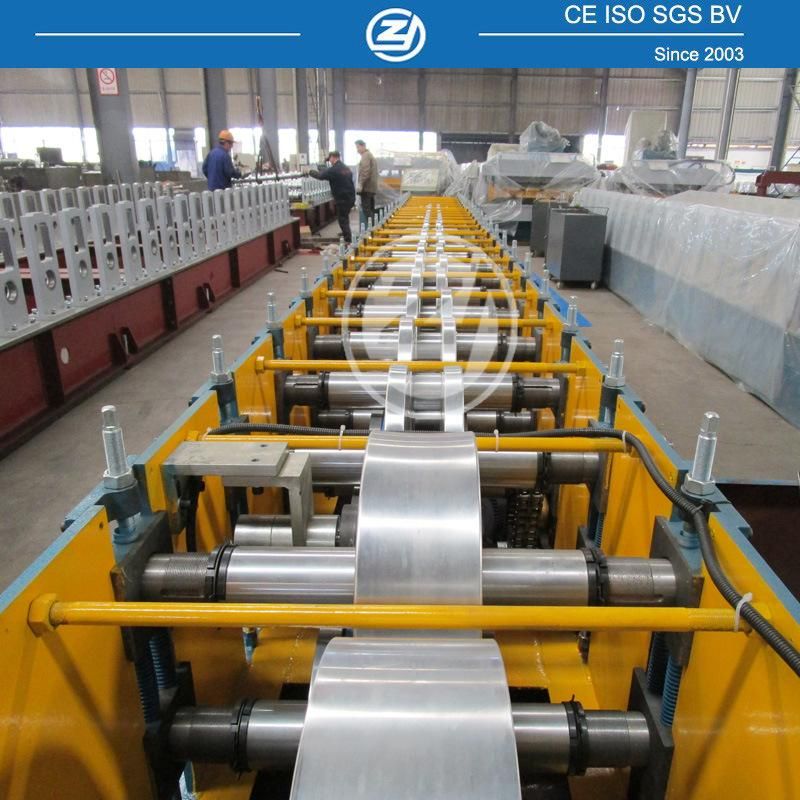

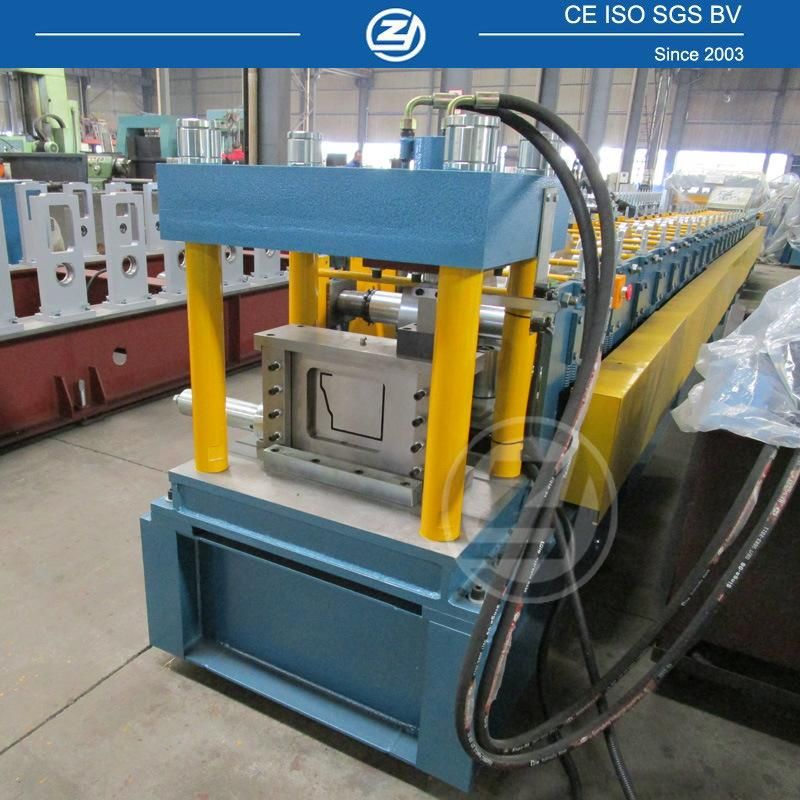

Components of machineDecoiler1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1set  Run out table 1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run O




Why us

We care about quality
1. ISO, CE certificate
2. Electric elements: Mitsubishi PLC & transducer from Japan.
Rollers: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
Active shaft: High grade No. 45 carbon wrought steel. Well resisting.
Cutter blade: Cr12 mould steel with quenched treatment
Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.

We care about user experience
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!

We care about your concern
 Delivery: in only 5-8 weeks
 Container was sealed
 Machine installing and training: engineer overseas sevices
 Inspecting and testing machine: before shiping

We care about the "special"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
                    15 years experience engineers


About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.


Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!

FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
