Nut Bolt Making CNC Machine/Used Thread Rolling Machine/Steel Rod Threading Machine
Xuchang Hongshuo Machinery Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
Base Info
- Model NO.：Z28 series
- Power Source：Hydraulic Pressure
- Feature：High Efficiency
- Certification：ISO9001
- Warranty：24 Months
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Transport Package：Wooden Case
- Specification：Thread Rolling Machine
- Trademark：Hongshuo
- Origin：China
- HS Code：8463200000
- Production Capacity：300 Sets Per Month
Description
Basic Info.
Model NO. Z28 series Power Source Hydraulic Pressure Feature High Efficiency Certification ISO9001 Warranty 24 Months Customized Customized Advantage Use Widely Condition New Transport Package Wooden Case Specification Thread Rolling Machine Trademark Hongshuo Origin China HS Code 8463200000 Production Capacity 300 Sets Per MonthProduct Description
Nut Bolt Making Cnc Machine/Used Thread Rolling Machine/Steel Rod Threading MachineDescription:
Z28-80 type thread rolling machine is mainly used in the processing M4-M48 standard bolt , ordinary bolt, high strength bolt, and the special bolt.The machine is welded by steel plates, reasonable structure, convenient operation.

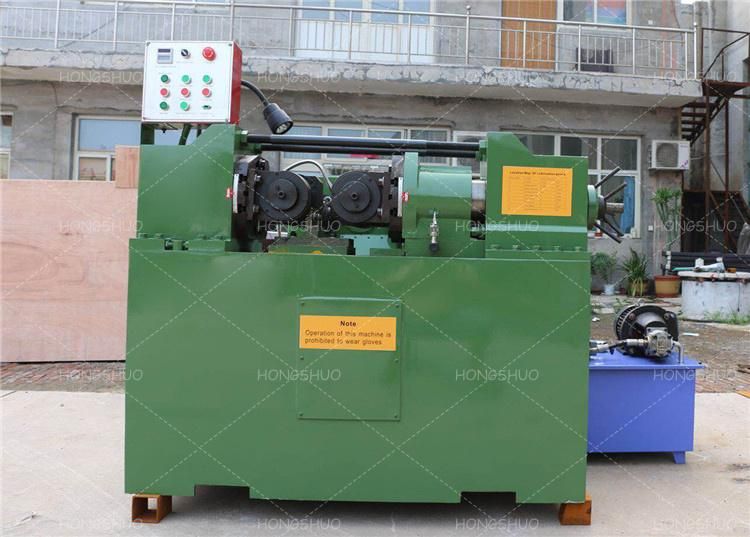

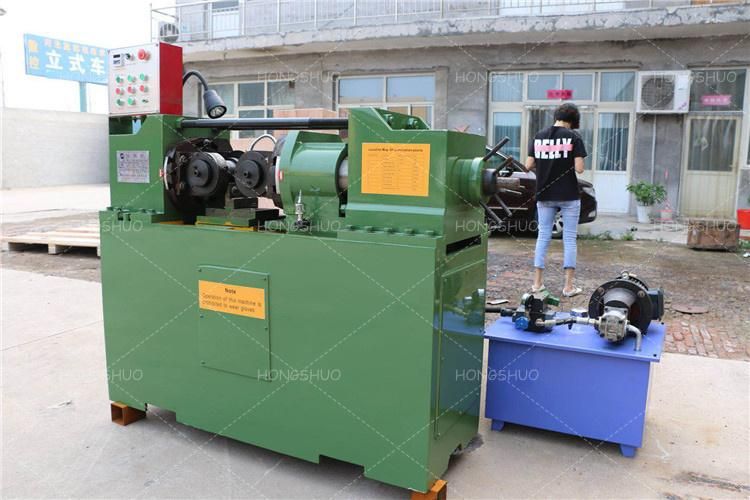

Machine Photos:
Machine Parameters:
| Model | Z28-80 thread rolling machine |
| Max rolling pressure | 150KN |
| The thread rolling wheel outer diameter | 120-170mm |
| maximum width of Thread rolling wheel | 110mm |
| Spindle center distance | 120-240mm |
| Feed speed of the dynamic spindle | 5mm/s |
| The active force | 5.5kw |
| Size | 1480*1330*1440mm |
| Rolling diameter | 4-48mm |
| The thread rolling wheel hole diameter | 54 |
| Spindle tilt angle | ±3° |
| Spindle speed | 35,47,60,76r/min |
| Length of thread | Unlimited (Plus protection) |
| Hydraulic power | 2.2kw |
| Weight | 1750kg |

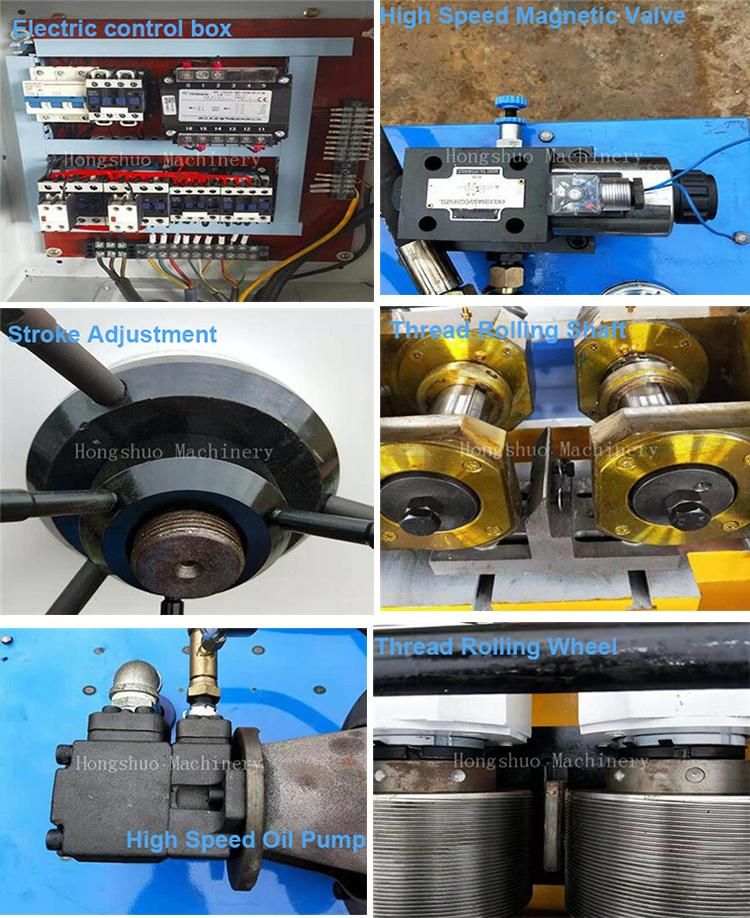

Machine Details:

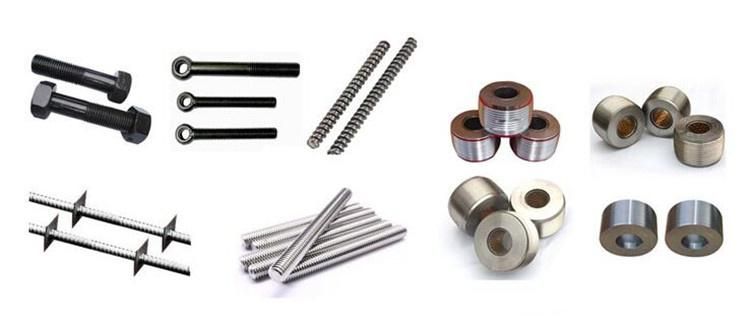

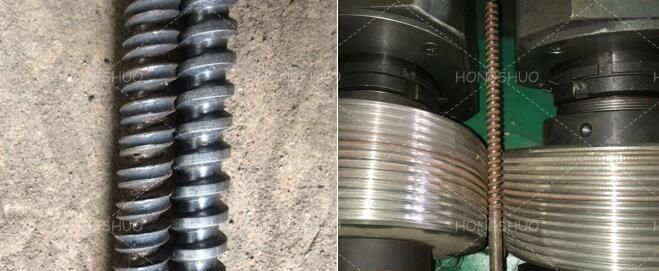

Work Pieces:
Shipment Photos:
