• Model NO.：AFD-600
• Main Motor Power：1.5kw
• Temperaute：40~120 Centigrade
• Electric Heating Power：2.4kw
• Working Speed：1-35 M,Min, Adjutable
• Transport Package：Wooden Package
• Specification：GB
• Trademark：BOBO
• Origin：China
• HS Code：8455229090
• Production Capacity：2sets,Month

Basic Info.

Model NO. AFD-600 Main Motor Power 1.5kw Temperaute 40~120 Centigrade Electric Heating Power 2.4kw Working Speed 1-35 M/Min, Adjutable Transport Package Wooden Package Specification GB Trademark BOBO Origin China HS Code 8455229090 Production Capacity 2sets/Month

Product Description

Material
1- Single side aluminum foil
2- Double side aluminum foil
3- Metalized PET film
4- Fibergalss reinforced scrim film

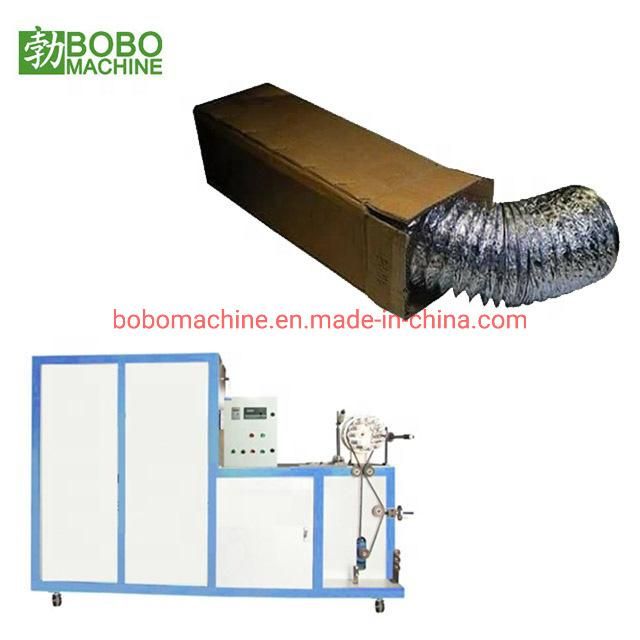

1- Metalized PET film flexible duct machine

2- Aluminum flexible duct foming machine

3- Flexible aluminum duct forming machine

4- Flexible ventilation duct machine

5- Spiral flexible duct making machine

Main technical data

1.1 Diameter range: 80mm~600mm

1.2 Length of aluminum tube: 1-10m

1.3 Raw material: Metalized PET film, 0.012mm, width 35-50mm

1.4 Dimension (L x W x H): 2200 x 820 x 1550mm

1.5 Weight: 500kg

1.6 Main motor power: 1.5kW

1.7 Temperaute: 40~120 centigrade

1.8 Electric heating power: 2.4kW

1.9 Working speed: 1-35 m/min, adjutable

1.10 Features of finished ducts:

Temperature resistance: -30° C-140° C

Max. Air flux: 30m/s

Max. Working pressure: 2500Pa

Pitch between corrugations: 20mm
