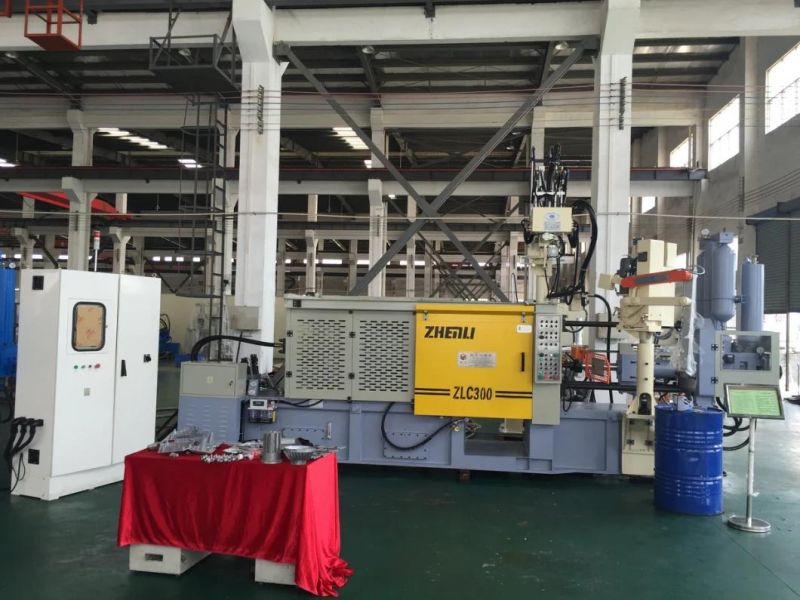

• Model NO.：ZLC-300T
• Type：Special Casting
• Color：Customized
• Main Motor：18.5kw
• Injection Weight(Max)：2.9kg
• Transport Package：Wooden Pallet+Nude
• Specification：6500*1700*2700mm
• Trademark：ZHENLI
• Origin：Guangdong, China
• HS Code：845430100
• Production Capacity：100sets,Year

Basic Info.

Model NO. ZLC-300T Type Special Casting Color Customized Main Motor 18.5kw Injection Weight(Max) 2.9kg Transport Package Wooden Pallet+Nude Specification 6500*1700*2700mm Trademark ZHENLI Origin Guangdong, China HS Code 845430100 Production Capacity 100sets/Year

Product Description

 Product Features :
-Pull-bar structure and hydraulic lifting device are good for the mold
-The exclusively designed necon system s equiped with piston-type fast speed an intensifier accumulators .
-Equpped with bg-diamerogc ave and ow contol valve wh can mprove naction qualty and keep theol pressure stable .
-Hydraulic gear-type mold adjustment structure is easy for operation
-Unique high speed die lock system helps to improve production efficiency .
-With automatic lubrcation system you can adjust the lubrcation perod and oil volume which can lengthen theworking life of the machine .
-Hydraul system s quipped with high pressure and ow pressure two pumps so as to save energy and improvefficiency .

Technological data:

ITEMS	UNIT	ZLC-300
Locking Force	kN	3000
Die Open Stroke	mm	470
Ejector Force	kN	150
Ejector Stroke	mm	110
(-) Die Height(Min.-Max.)	mm	250-650
(×) Die Platen Size(HXV)	mm	900×950
Space Between Tie Bars	mm	560×560
Shot Position	mm	0,-125
Shot Strock	mm	440
() Casting Force(intensify)	kN	330
Plunger Diameter	mm	50,60,70
(AI) Injection Weight	kg	1.5,2.1,2.9
() Casting Pressure	MPa	170,118,87
Casting Area	cm²	172,252,343
(40MPa) Casting Area Max	cm²	750
Chamber Flange Diameter	mm	110
Chamber Flange Protrusion	mm	12
Plunger Penetration	mm	165
/ Main Pump Driving Motor	kW	18.5/30
Working Pressure	MPa	14
Oil Tank Capacity	L	750
(××) Machine Dimensions (L×W×H)	mm	6500×1700×2700
Referential Machuine Weight For Uplifting	T	11.8

Standard Configuration :

Double-toggle lock mould structure, high strength spheroidal graphite iron casting plate.

Low pressure mold closing protection.

Mould adjustment device for gear train oil motor.

Concentrated automatic lubrication system.

Fast hydraulic ejector device and core pulling device.

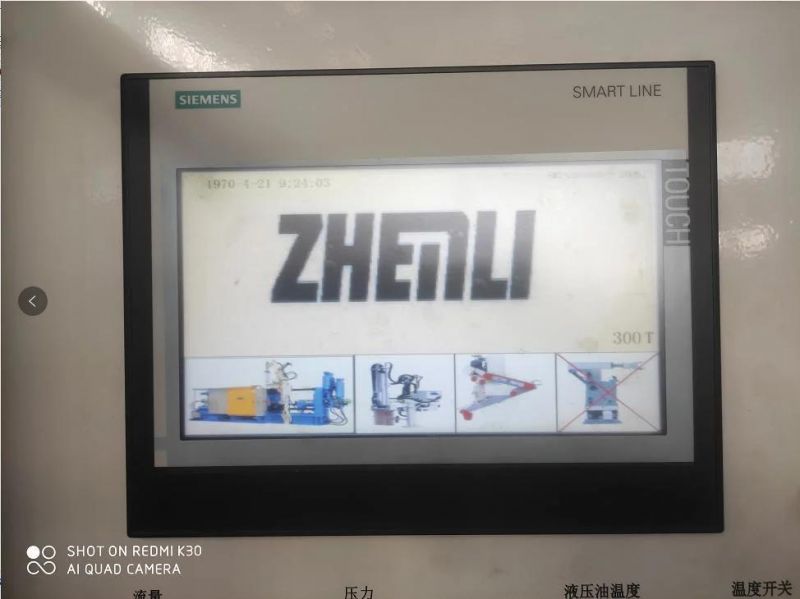

4th level injection control system.

Independent piston 2-speed and pressure charging energy accumulator.

Hydraulic elevator sprue platform.

E-ruler control on mould opening and closing

Power saving high and low pressure twin pump hydraulic system.

Warranty & package
we provide one year warranty for machine and three months for hot-working Parts.

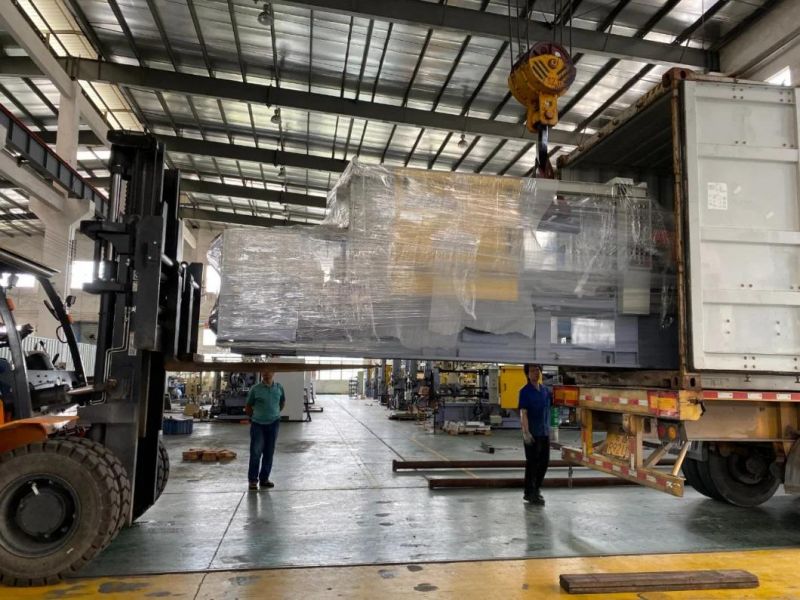

we are bliged to ship the equipment in wooden pattet package, which will ensure complete safety and protection of handling damage during the transportation.

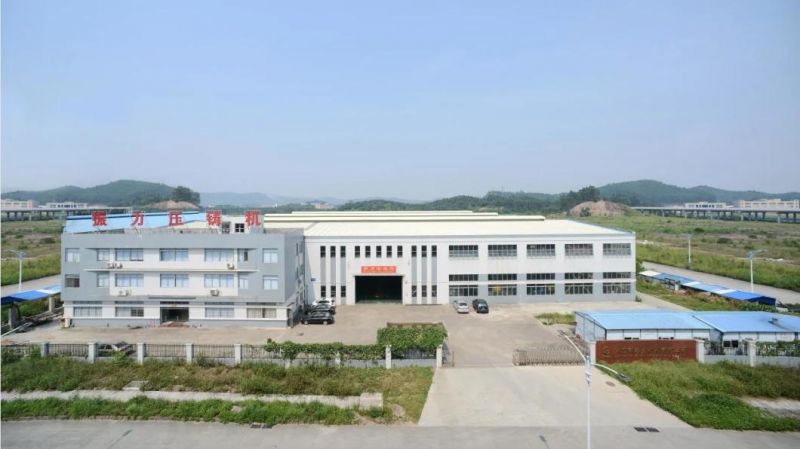

About us Located in Jiangsha Industrial District of Jiangmen City , China ' famous motorcycleproduction base , Jiangmen Zhenli Machinery Co , Ltd is a high-tech company specializingin R & D , design , production , and after-sale services . Since its foundation in 2002 , aftera decade ' s development and dedication , Zhenli has developed into a modern factorywith imported CNC machining center , gantry milling , planer , grinder , and other advancedequipment . The main products of Zhenli include " ZL " series of hot chamber die castingmachines , ZLC " series of cold chamber die casting machines , servo die castinmachines , real-time control die casting machines , magnesium alloy die casting machines ,and peripherals , etc .

Adhering to the business philosophy of Keeping Improvement and HighPerformance " and the faith of Innovation and Integrity " , in pursuit of high qualityreliance and reputation , Zhenli always places more emphasis on the technology andmanagement . Because of its advanced technology , high quality and effective managementZhenli' s hot chamber as well as cold chamber die casting machines have won the trustand love of our clients at home and abroad . Besides , our machines are widely appliedin the sectors of toys , appliances , building materials and hardware , industrial parts , autoparts , electronics , etc In a word , our machines almost can satisfy all kinds of production ofcastings .

Apart from professional equipment , a qualified R & D team , the stable performance andreliable quality of machines , Zhenli will provide excellent pre-sale and after-sale services .which makes Zhenli become a best-selling brand in the domestic and extemal market . Sofar , in addition to 30 provinces or cities in China , Zhenli' s die casting machines have beensold to more than 50 countries in Europe , South America , Africa , Southeast Asia and theMiddle East . and so on .

We love die casting machines , so we try to be professional ; we are professional , so weare excellent . It is our good hope to promote , by joint effort , both business and friendship toour mutual benefit.
