• Model NO.：LT-560
• Max. Number of Block：15
• Certification：REACH, RoHS, ISO
• Condition：New
• Coulor：Any
• Voltage：380,415,440,220
• Drawing Material：High, Medium, Low Carbon
• Warranty：One Year
• Market：All of The World
• After Sell Service：Engineers Available to Service Outside
• Power：18.5-132kw
• Technology：Complete Program in Offer
• Drawing Speed：10-12m,S
• No of Block：According Clients Needs
• Transport Package：PE
• Specification：weight 8 ton
• Trademark：wandeshun
• Origin：Wuxi
• HS Code：8463102000
• Production Capacity：300 Set One Year

Basic Info.

Model NO. LT-560 Max. Number of Block 15 Certification REACH, RoHS, ISO Condition New Coulor Any Voltage 380/415/440/220 Drawing Material High, Medium, Low Carbon Warranty One Year Market All of The World After Sell Service Engineers Available to Service Outside Power 18.5-132kw Technology Complete Program in Offer Drawing Speed 10-12m/S No of Block According Clients Needs Transport Package PE Specification weight 8 ton Trademark wandeshun Origin Wuxi HS Code 8463102000 Production Capacity 300 Set One Year

Product Description

 1.    About us

Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.

Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey,Bolivia,Saudi Arabia and so on

Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.

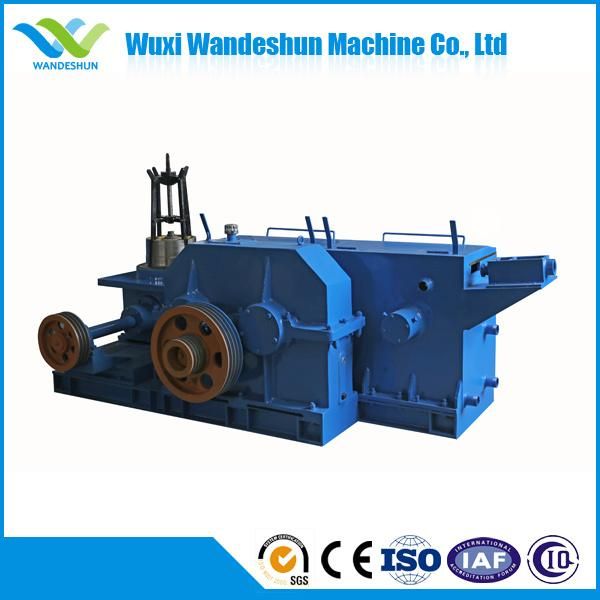

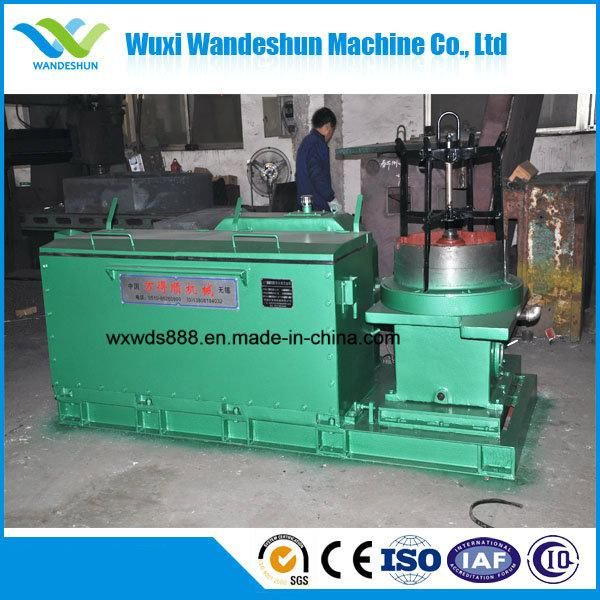

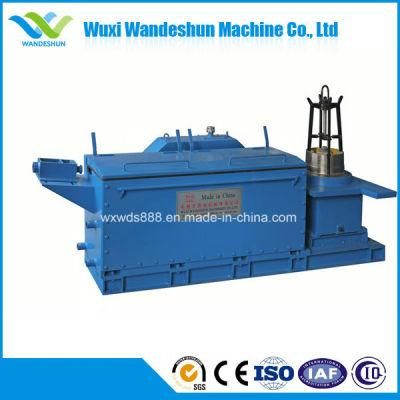

Wet Type Wire Drawing Machine for low and hig carbon steel

Product  Details

The Heavy Wet Wire Drawing Machines improved by our company are the ideal equipment for drawing medium and high carbon wire rods.Max inlet diameter is 8mm.The equipment is suitable for drawing rope making wire,high-strength spring steel wires,card clothing steel wires,bead wires,steel strand steel wires,aluminum wire cores,wire spoke steel wires and umbrella skeleton steel wires.

The equipment can be hoisted integrally,structure is compact.

Transmission has two kinds of ways:

One is via strong two-stage narrow V-belt combination special gear box. The other one is via entire gearbox, buyers can choose the one you want to buy.

Control part: Normal control,frequency control,soft starting control. It's very popular with users because of energy saving, less cost, smaller space area and less workers labor.

Main Technical Parameters

Model	LT9/700-900	LT11/700-900	LT7/560-650	LT9/560-650	LT11/560-650	LT13/560-650	LT15/500-650	LT17/450-560
Capstan diameter	Φ700/900mm	Φ700/900mm	Φ560/650mm	Φ560/650mm	Φ560/650mm	Φ560/650mm	Φ500/650mm	Φ450/560mm
Drawing dies	9	11	7	9	11	13	15	17
Max.inlet dia	Φ8.0mm	Φ8.0mm	Φ6.5mm	Φ6.5mm	Φ8-6.5mm	Φ8-6.5mm	Φ6.5mm	Φ6.5mm
Min.outlet dia	Φ3.5mm	Φ3.0mm	Φ3.2mm	Φ2.6mm	Φ3.0-2.2mm	Φ2.5-2.0mm	Φ1.6mm	Φ1.4mm
Drawing speed	180m/min	180m/min	200m/min	200m/min	250m/min	250m/min	280m/min	280m/min
Inlet wire intensity	≤1150Mpa	≤1150Mpa	≤1150Mpa	≤1150Mpa	≤1150Mpa	≤1150Mpa	≤1150Mpa	≤1150Mpa

Finished Products
