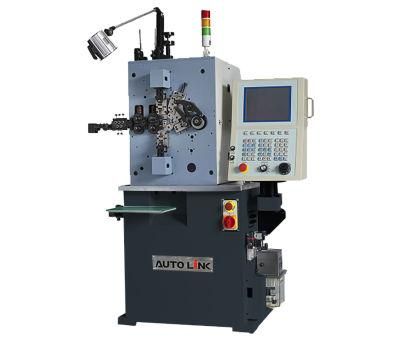

Customized Wire Forming Machine 3/4 Axis

Auto Link Technology Co., Ltd.
  • Automatic Grade:Automatic
  • Warranty:1 Year
  • Certification:CE
  • Axis:3-4
  • Max. Wire Feed Value:9999.99mm
  • Min. Wire Feed Value:0.01mm

Base Info

  • Model NO.:WF-35
  • Rotary Quill Axis:1.0kw
  • Wire Feeding Axis:5.5kw
  • Transport Package:CNC Machines Packed in an Air-Tight Containers
  • Specification:Wire Diameter: 0.8-3.5mm
  • Origin:China

Description

The wire forming machines builds complex shape springs. The advanced and the higher version of the CNC bending and Spring coiling machine is wire-forming machines. The machine comprises 4 models. Hence, 3/4axis is one of the basic models of a CNC wire forming machine.

Input Materials: Stainless Steel, Aluminium, Brass, Bronze, Carbon Steel, Cold-Rolled Steel, Copper, Nickel, Titanium, etc. The input wire diameter ranges between 0.8mm and 3.5mm.

Features of 3/4Axis CNC Wire Forming Machines

  • The machine comprises an imported Wire Feed Bearings.
  • Equipped with High-Strength Transmission Belt (German Technology)
  • Special Design of Zero-Degree Gear
The servo motor and CNC Programming units are the main units of the spring-forming CNC machines. The Auto Link makes use of a Japanese Servo Motor for ensuring better performance. Hence, the control unit controls the overall operation of the machine.Customized Wire Forming Machine 3/4 Axis

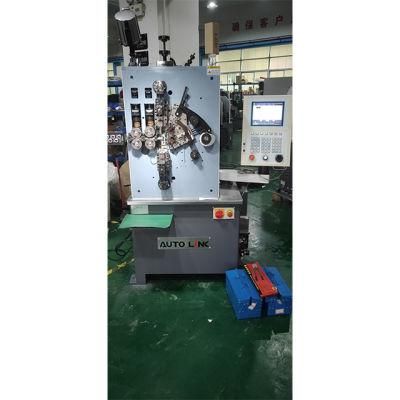

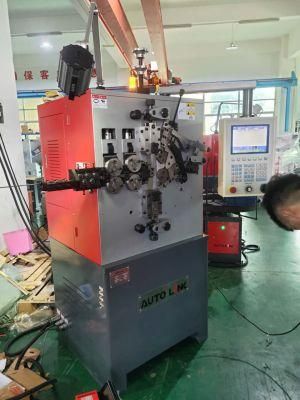

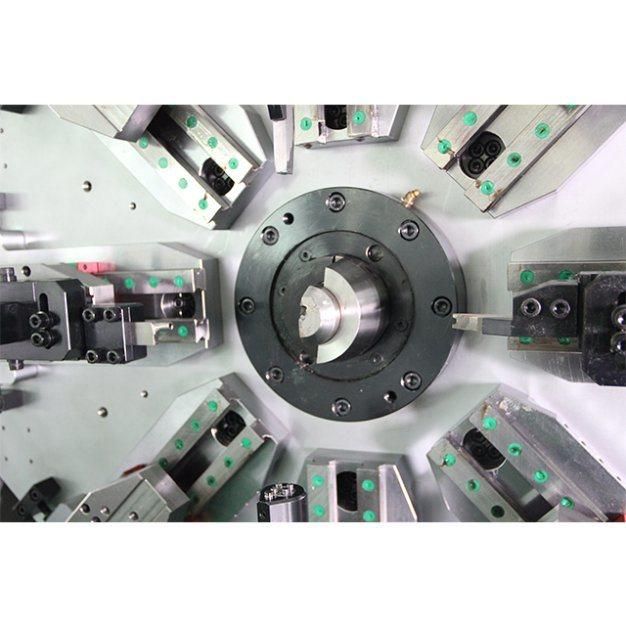

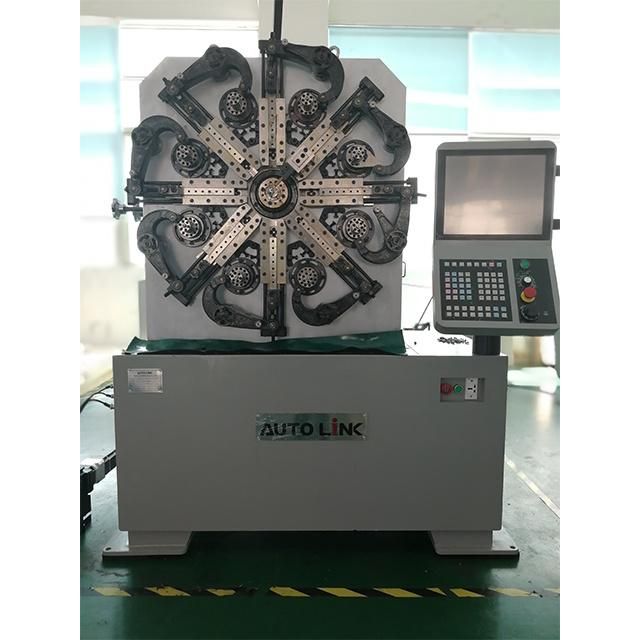

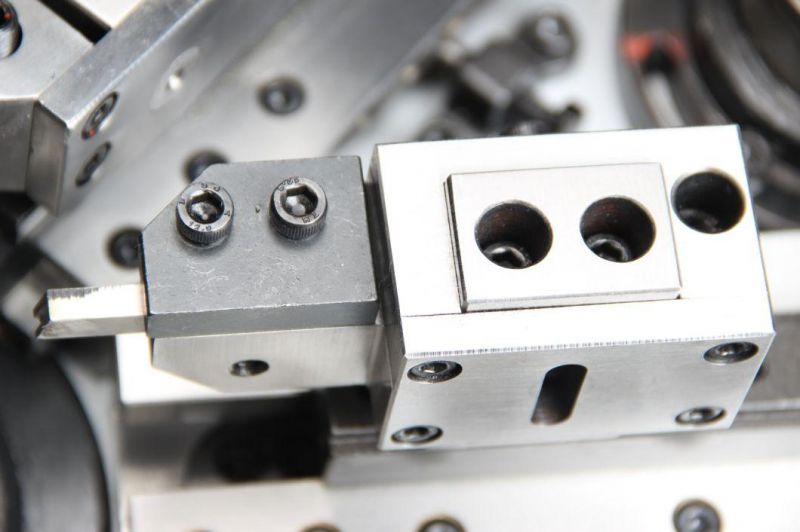

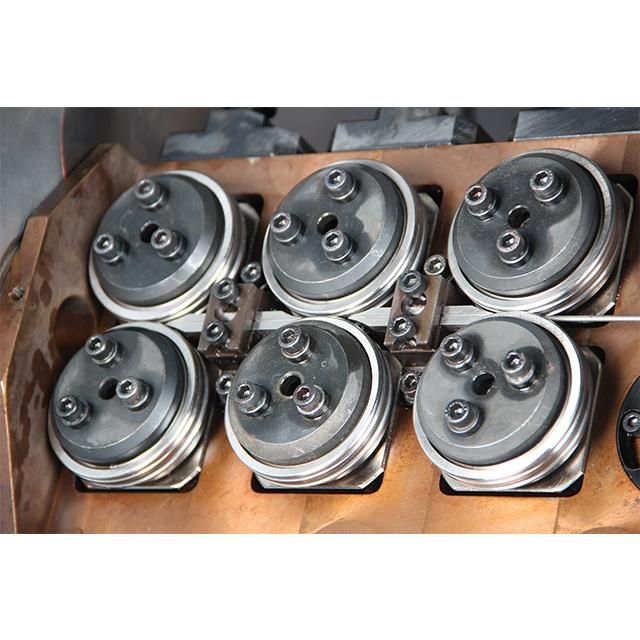

DETAIL IMAGESCustomized Wire Forming Machine 3/4 AxisCustomized Wire Forming Machine 3/4 AxisCustomized Wire Forming Machine 3/4 Axis
SPECIFICATIONS
 ModelWF-35Wire Diameter0.8-3.5mmAxis3-4Max. Wire Feed Value9999.99mmMin. Wire Feed Value0.01mmRotary Quill Axis1.0KWWire Feeding Axis5.5KWSpinner Axis(Optional)1.0KWCam Axis5.5KWCompressor Air Pressure5-6kg/cmProbe4pcsDimension(M)1.5*0.9*1.7Weight900KG

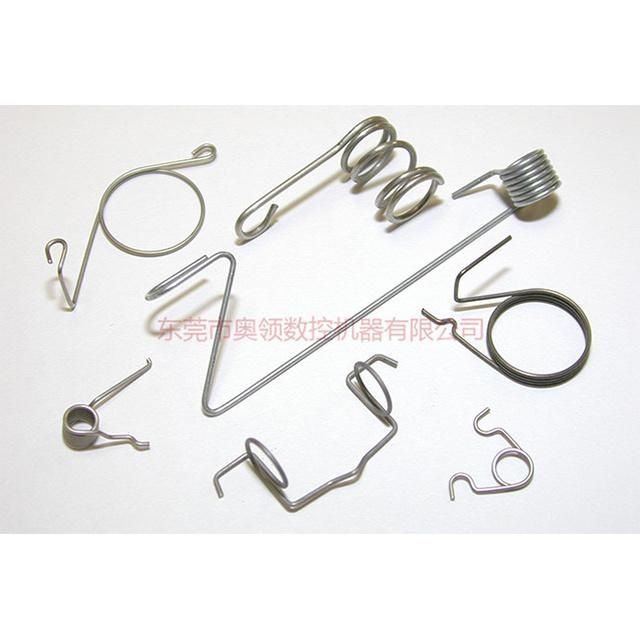

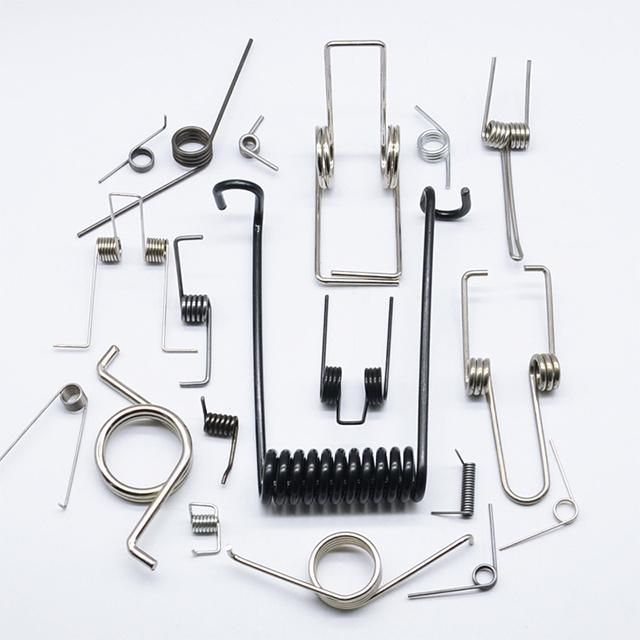

OUTPUTCustomized Wire Forming Machine 3/4 AxisCustomized Wire Forming Machine 3/4 Axis

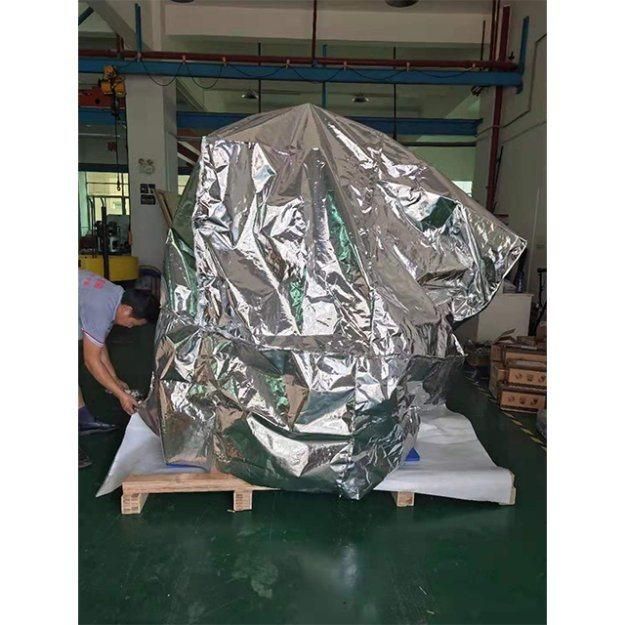

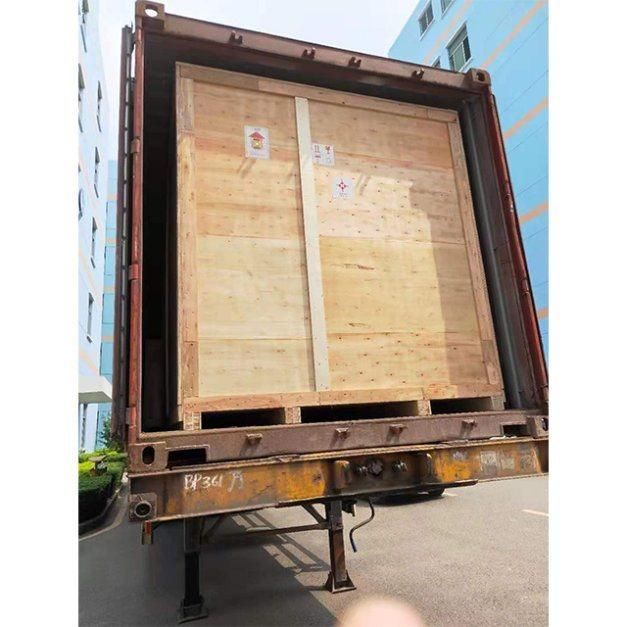

PACKING & DELIVERYCustomized Wire Forming Machine 3/4 AxisCustomized Wire Forming Machine 3/4 Axis

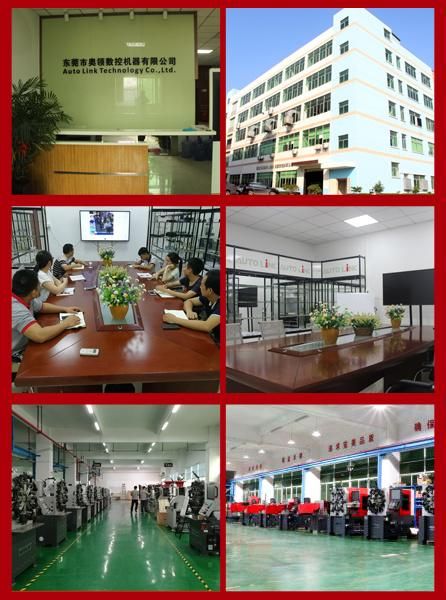

COMPANY PROFILE
 Customized Wire Forming Machine 3/4 AxisAuto Link CNC Machine Co., Ltd. is leading at R&D, production, and sales of multi-axis cam-free/cam-switching CNC spring machines/3D wire forming machines, that provide overall solutions for wire processing and spring forming. The company is highly committed to the establishment of products in the foreign market such as Southeast Asia, the Middle East, and European and American markets, with a huge welcome from the customers.

Our business policy of "Latest technology, quality assurance, and honest service". In order to improve product quality and reduce cost with advanced technology to enhance your competitiveness in the global market.

FAQ

Q: What information should the customer provide to get a Wire Forming Machine offer from Autolink?
A: Please you usually share the below info to check suitable machines.
             *Specific drawing
             *Wire material
             *Additional functions you need with the machine, such as chamfering, threading, etc.
    We will check the best solution and offer for your requests after checking the details.

Q: How can I know if the Auto Link wire forming machine can produce my product precision?
A: If you have high precision outputs requests, would you please send a check gauge or parts which these outputs will fit, we will set parts for you to fit them. Or we can send samples for you to measure
Q: How can I get training if have no experience with Spring Forming Machine?
A: We will give 5days of training in our factory, we warmly welcome you to our factory to check and learn machine training before shipment. We will send the manual book with a machine and also can send a video to show you how to run a machine if you have doubts.
Q: If the computer can set customer's own language to let their work run the machine?

A: Surely, we can set two languages in the controller, we can set the language you asked for, we just need your help with some key translation to load into the controller.

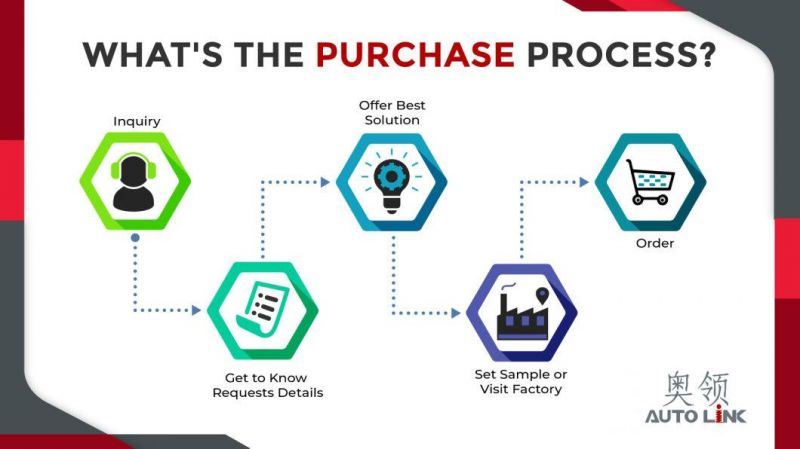

Q: What's the purchase process
