• Model NO.：TD-H
• Application：Surface Treatment,Electroplating
• Coatings：Zinc Nickel Copper Chrome Gold Silver Coating
• Service：Longlife Technology Support
• Manufacturer：Yes
• Plating Style：Hang Plating , Barrel Plating
• Equipment Type：Manual ,Semi-Automatic , Full-Automatic
• Extranl Equipment：Rectifier , Filter , Water Chiller
• Pre-Treatment Machine：Polishing Machine , Virbarting Machine
• Pre-Treatment Porcess：Ultrasonic , Electronic ,Heating Oil Remove
• After-Treatment Machine：Hot Rinse , Dry Machine , Oven
• Thickness of Tank：15 mm, Customized
• Material of Tank：PP , PVC , Ss
• Available for：Machine Part,Nail,Faucet,Bolt,Customization
• Packaging Details：1.Non-Standard 2. Wood CTN
• Transport Package：by Plywood or Shipping by Container Directly
• Specification：customized
• Trademark：Tongda
• Origin：Shandong, China
• HS Code：8543300090
• Production Capacity：2 Sets, Month

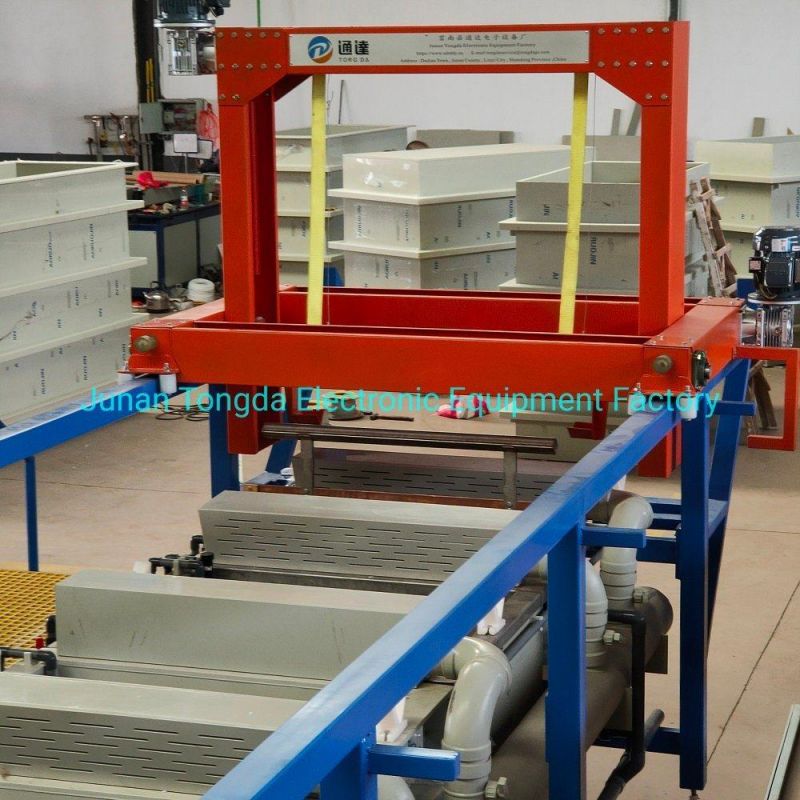

 Fully Automatic Electroplating Machine Hang Plating
Automatic Hang Electroplating Line 1.Its has mix function with full-automatic and semi-automatic, with degree of automation .
2.High Productivity ,stable quality ,saving time ,human and area
3.Intelligent operating System:Controlled by PLC .Using the Man-Machine touched interface controlling panel,can monitor and
adjust the every process and data.
4.The motor with reducer transmission to insure the barrel rolling .
5.The most produce capacity can arrive 1-2 ton/hour.



Features:
1.Before assembly have a long time of test Working time can be adjusted. 2.under human-computer interface control.including fault display and warning device. 3.This Automatic electroplating line is good quality and reasonable price. High efficiency and capacity with easily maintenance. 4.This type of plating line are applied for hardware, stationery material,automobile, motorcycle parts , ASB industry and so on. 5.Applicable for plating simplex product without process change. 6.Electric conductivity equable, plating thickness equable, the horizontal and up/down motion controlled by hydraulic pump,the equipment is stable and silent while operating.

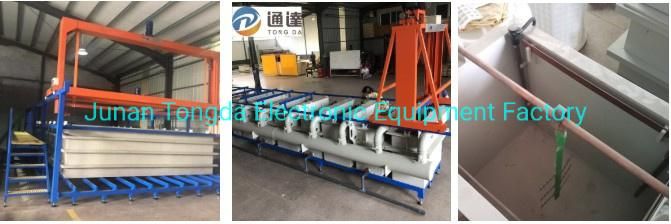

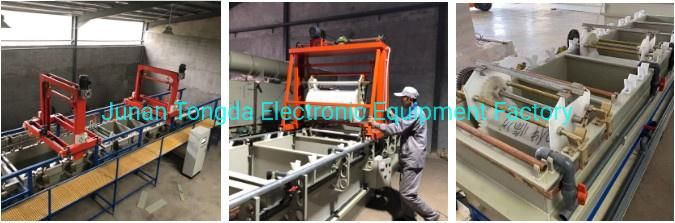

Product Show:


Testing before delivery :
(1) Anti-leakage testing : We will fill the tanks with water after welding and before installation , the testing time last 72 hours .
(2) Runing testing : We will installed the equipment and operate it . Meantime , we will take the testing videos to the customer to confirm it .

Barrel plating line

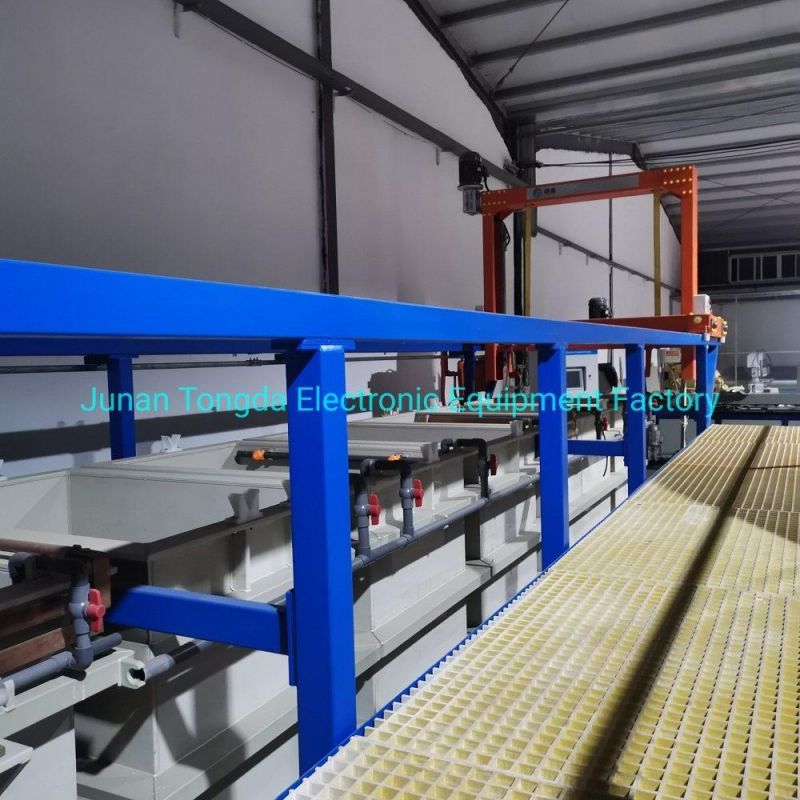

Hanger plating equipment

Product detail

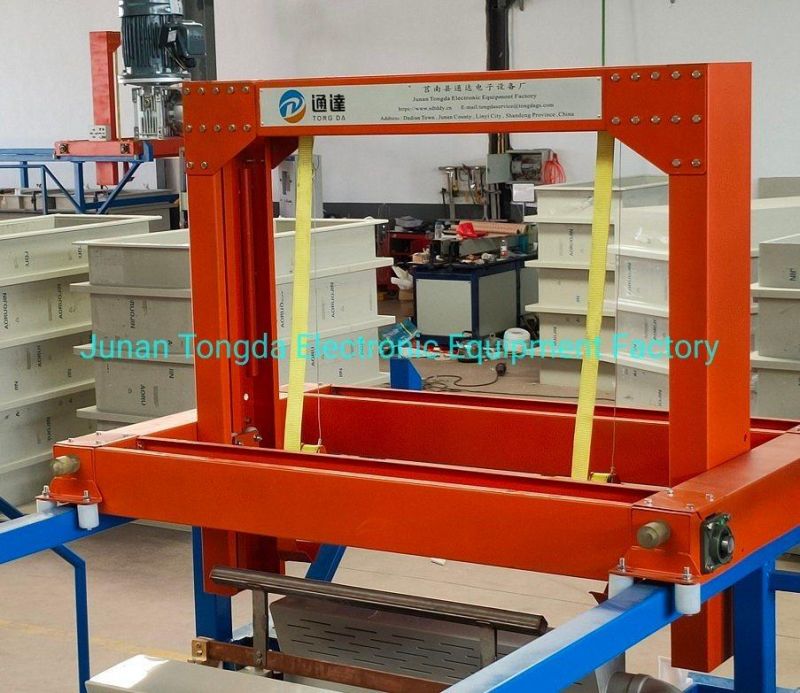

Crane:Coatings:Square steel pipe with 3 layers Epoxy resin paint.Could loading heavy goodsIt's strong

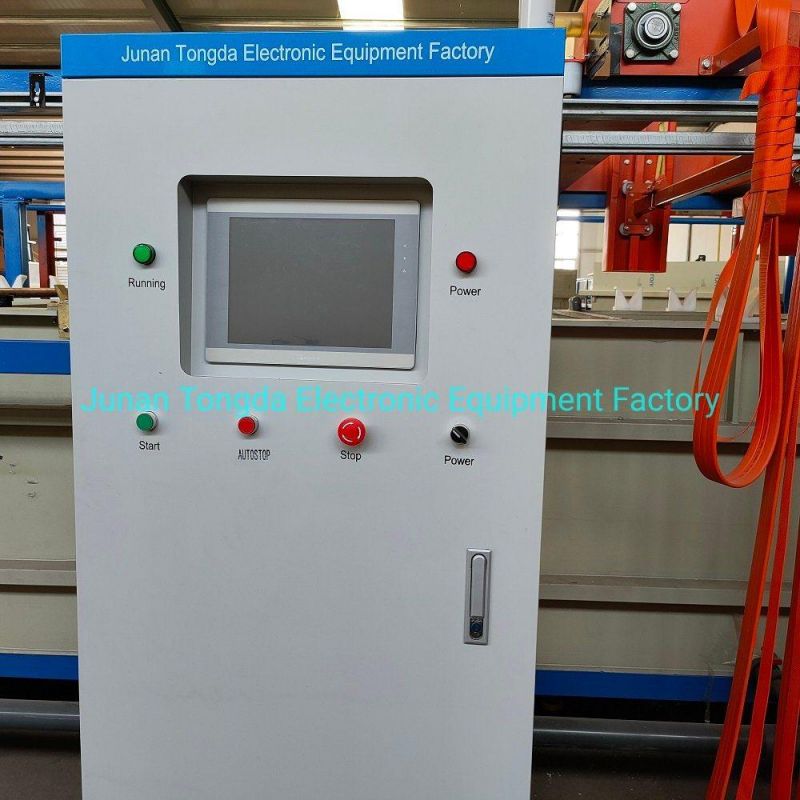

Control by PLC:Intelligent operating system controlled by PLC.Using the Man-Machine touched interface contralling panel,
can moniter and adjust the every process and date.



Hanger:

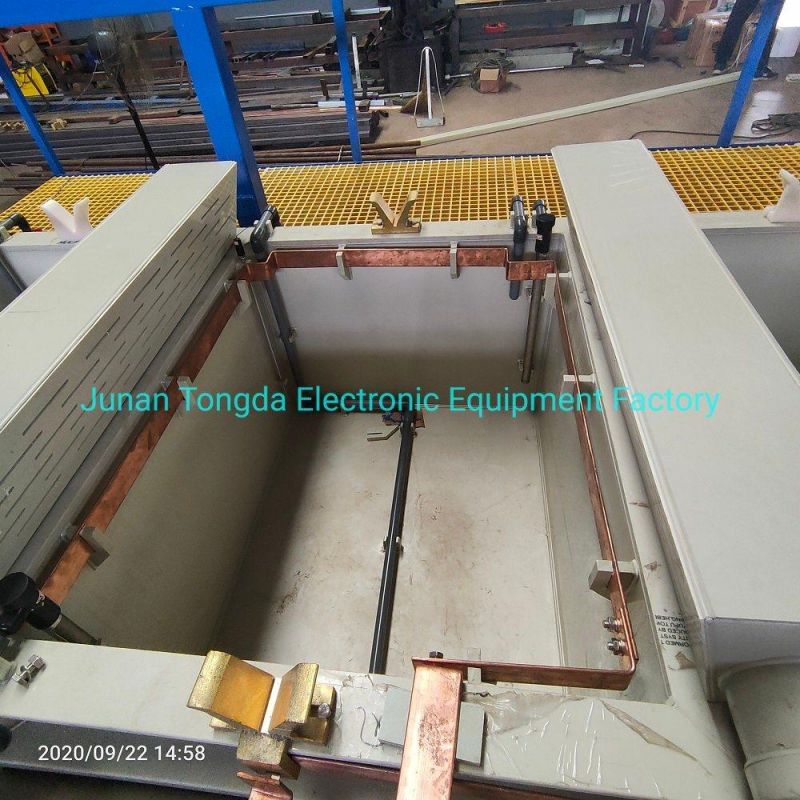

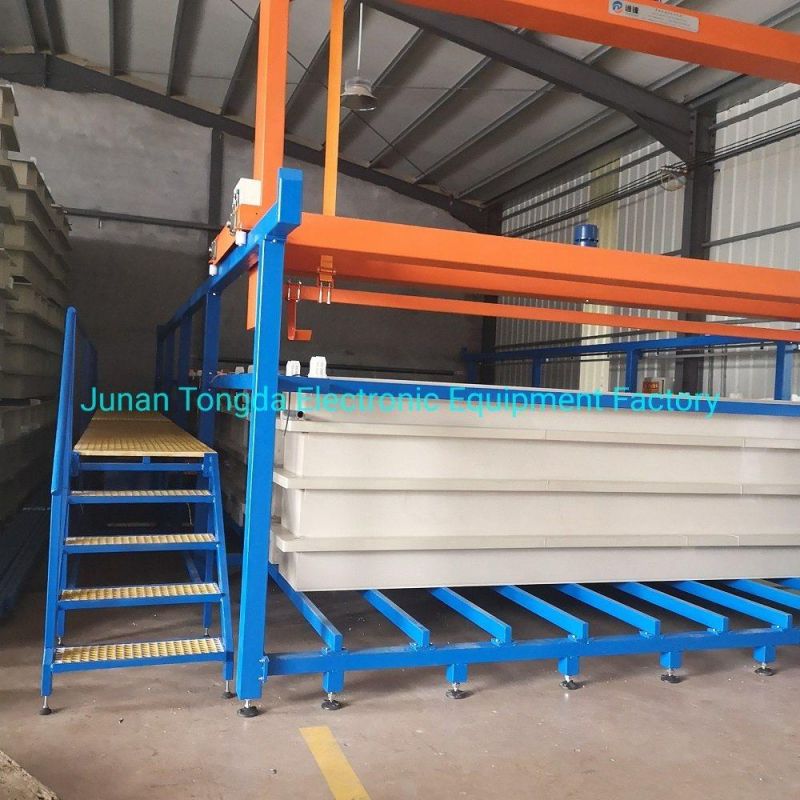

Tank:Our standard PP /PVC plate thickness is 15mm , after serioiusly testing and market research , this is the most cost-effect thickness ,
there will have a good balance for price and quality .

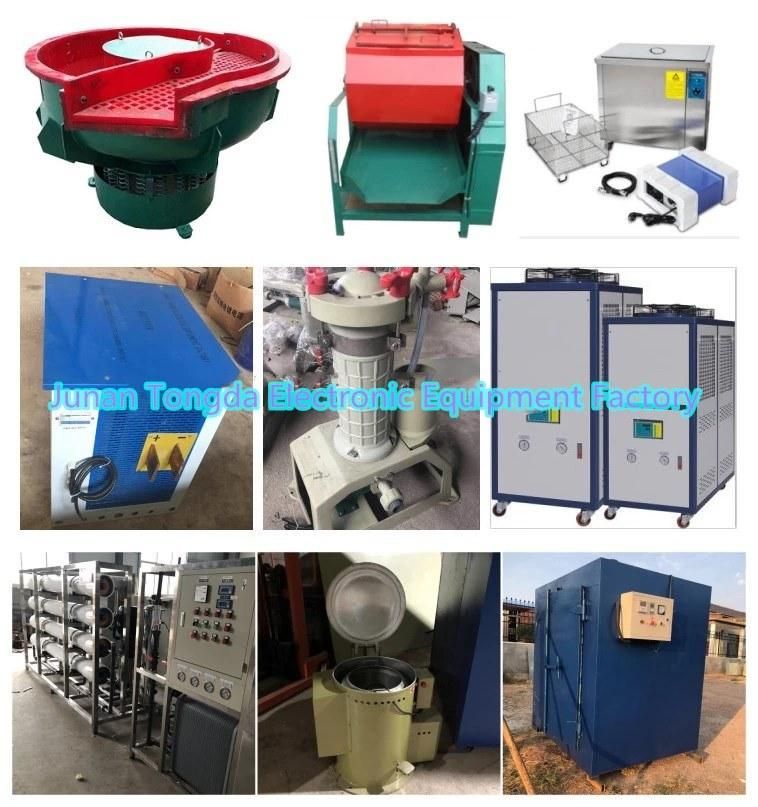

External Device:


PACKAGE & DELIVERY
Package mode : by plywood or shipping by container directly .
Shipping : Ocean shipping
Lead time : 30-35 working days.

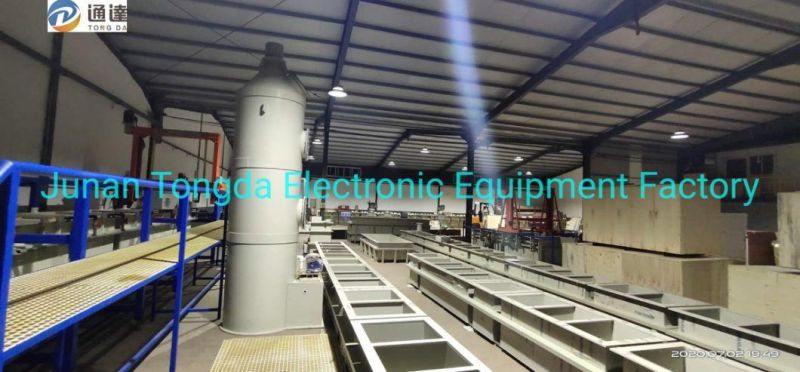

FACROTY AND SERVICE:

Our services:
1. Manufacturer of Electroplating Machine
2. One year Warranty
3. Free spare Parts
4. Full set after-sale services
5. Detailed Instruction of Machine : We will give you a detailed manual before delivery , you could install machine according this If possible ,
we will let our engineer come to your country to help.
