4 Axis Metal Drilling Marking CNC Plasma Cutter 1325 Plasma Cutting Machine
SHANDONG IGOLDEN CNC TECHNOLOGY CO., LTD.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting
Base Info
- Model NO.：Plasma cutting machine
- Working Size：1500*3000mm
- Plasma Source：Lgk,Hypertherm
- Table：Sawtooth Table
- Control System：Starfire
- Rotary Axis：Option 100,150,200,250,300,400mm...
- Cooling System：Air,Water Cooling
- Flies Transfer：USB Interface
- Transmission：X,Y-Helical Rack Pinion, Z Ball Screw
- Arc：Untouched Arc Striking
- Traveling Speed：0-40000mm,Min
- Software：Fastcam
- Working Voltage：3 Phase 380V,50Hz
- Transport Package：Wooden Box Packing
- Specification：1500*3000
- Trademark：iGOLDENCNC
- Origin：Jinan
Description
Basic Info.
Model NO. Plasma cutting machine Working Size 1500*3000mm Plasma Source Lgk/Hypertherm Table Sawtooth Table Control System Starfire Rotary Axis Option 100/150/200/250/300/400mm... Cooling System Air/Water Cooling Flies Transfer USB Interface Transmission X,Y-Helical Rack Pinion, Z Ball Screw Arc Untouched Arc Striking Traveling Speed 0-40000mm/Min Software Fastcam Working Voltage 3 Phase 380V/50Hz Transport Package Wooden Box Packing Specification 1500*3000 Trademark iGOLDENCNC Origin JinanProduct Description
4 axis metal drilling marking cnc plasma cutter 1325 plasma cutting machine
| NO. | Model | IGP-1325 | Optional |
| 1 | Working area | 1300x2500mm | 1500*3000/2000*3000/2000*6000mm |
| 2 | Torch height controller | with | |
| 3 | Working table | Saw tooth table | |
| 4 | Plasma power supply | Hypertherm 125A | Hypertherm 65/85/200A |
| 5 | Cooling system | Air cooling | |
| 6 | Control system | F2300A control system | |
| 7 | Flies transfer | USB interface | |
| 8 | Transmission | X,Y-helical rack pinion, Z ball screw | |
| 9 | Guide rail | Taiwan Hiwin guide rail | |
| 10 | Drive system | Japan servo motor and drivers | |
| 11 | Arc | Untouched Arc Striking | |
| 12 | Traveling speed | 0-40000mm/min | |
| 13 | Working speed | According to the cutting thickness | |
| 14 | Working voltage | Single phase 220V and 3 phase 380V/50HZ | |
| 15 | Software | Fastcam | |
| 16 | Rotary axis | With | |
| 17 | Drilling head | With | |
| 18 | Marking head | With |

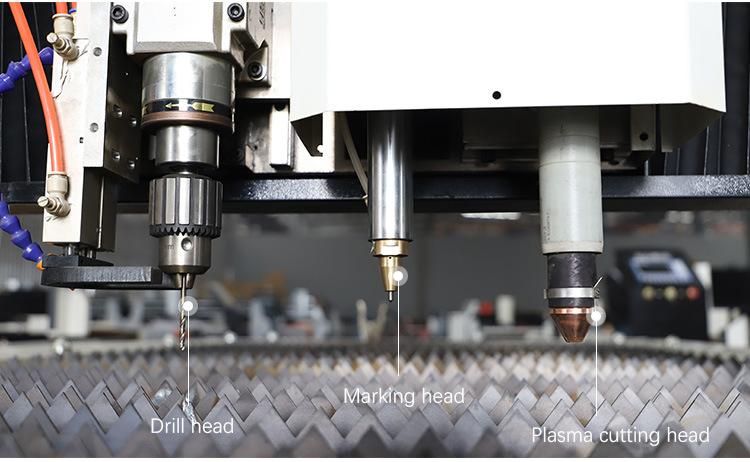

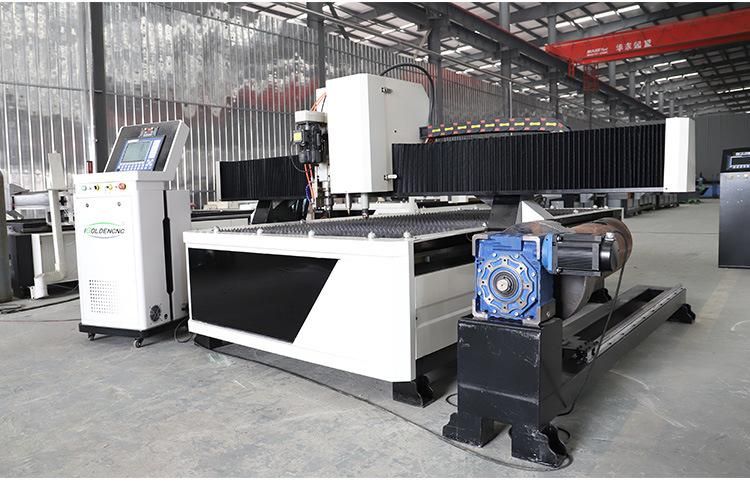

Multifunctional plasma cutting machine, with drilling head and marking head
For multiple purposes

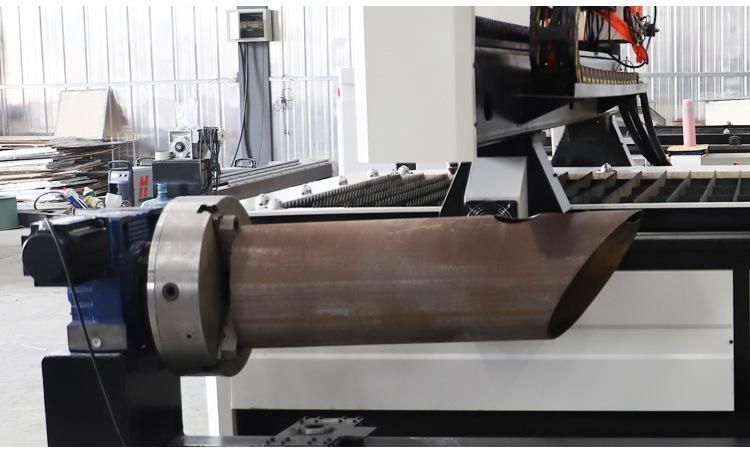

Rotary axis cutting

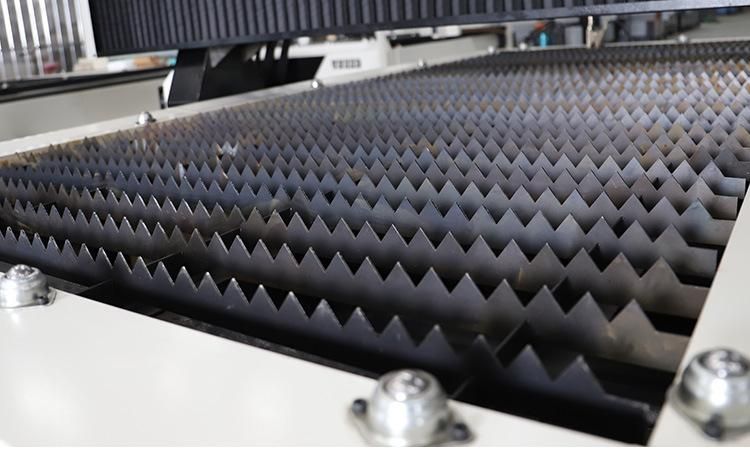

Saw tooth working table
F2300A control system

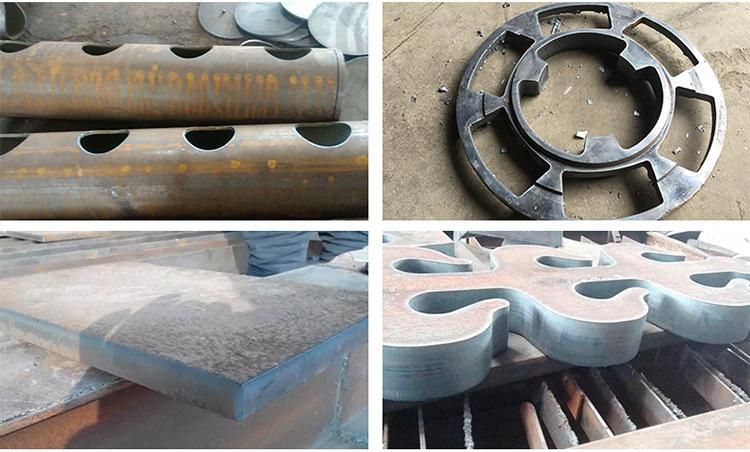

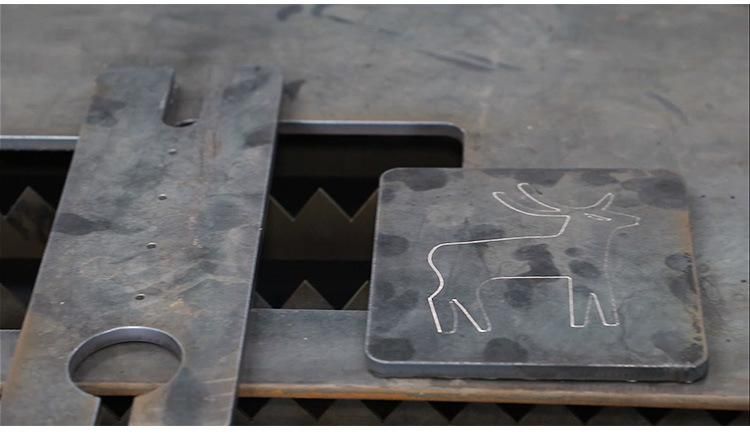

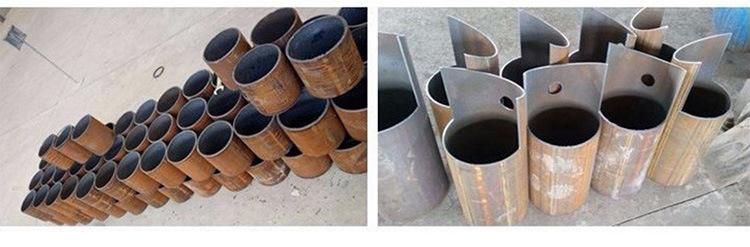

Plasma cutter Application & Samples:
