• Voltage：380V,50Hz
• Rated Power：7.5kw
• Dimension(L*W*H)：1300*2500 , 1500*3000mm
• Certification：Ce ISO FDA SGS
• Weight (Kg)：1700kg
• Warranty：3 Years
• Machinery Test Report：Provided
• Video Outgoing-Inspection：Provided
• Control System：Start Control System
• Application：Industrial Metal Cutting
• Transport Package：Wooden Box
• Trademark：Vmade
• HS Code：845640100
• Production Capacity：1000PCS,Year

Basic Info.

Voltage 380V/50Hz Rated Power 7.5kw Dimension(L*W*H) 1300*2500 / 1500*3000mm Certification Ce ISO FDA SGS Weight (Kg) 1700kg Warranty 3 Years Machinery Test Report Provided Video Outgoing-Inspection Provided Control System Start Control System Application Industrial Metal Cutting Transport Package Wooden Box Trademark Vmade HS Code 845640100 Production Capacity 1000PCS/Year

Product Description

Product Description
1.Welded lathe bed of thick profiled steel, more solid and stable.
2.Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath.
3.Advanced material inclined discharging design.
4.Support FASTCAM nesting software such as the standard G code path generated file can also be read by software conversion software such as AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.5. Professional HVAC software CAMDUCT, have all the shapes of ducts

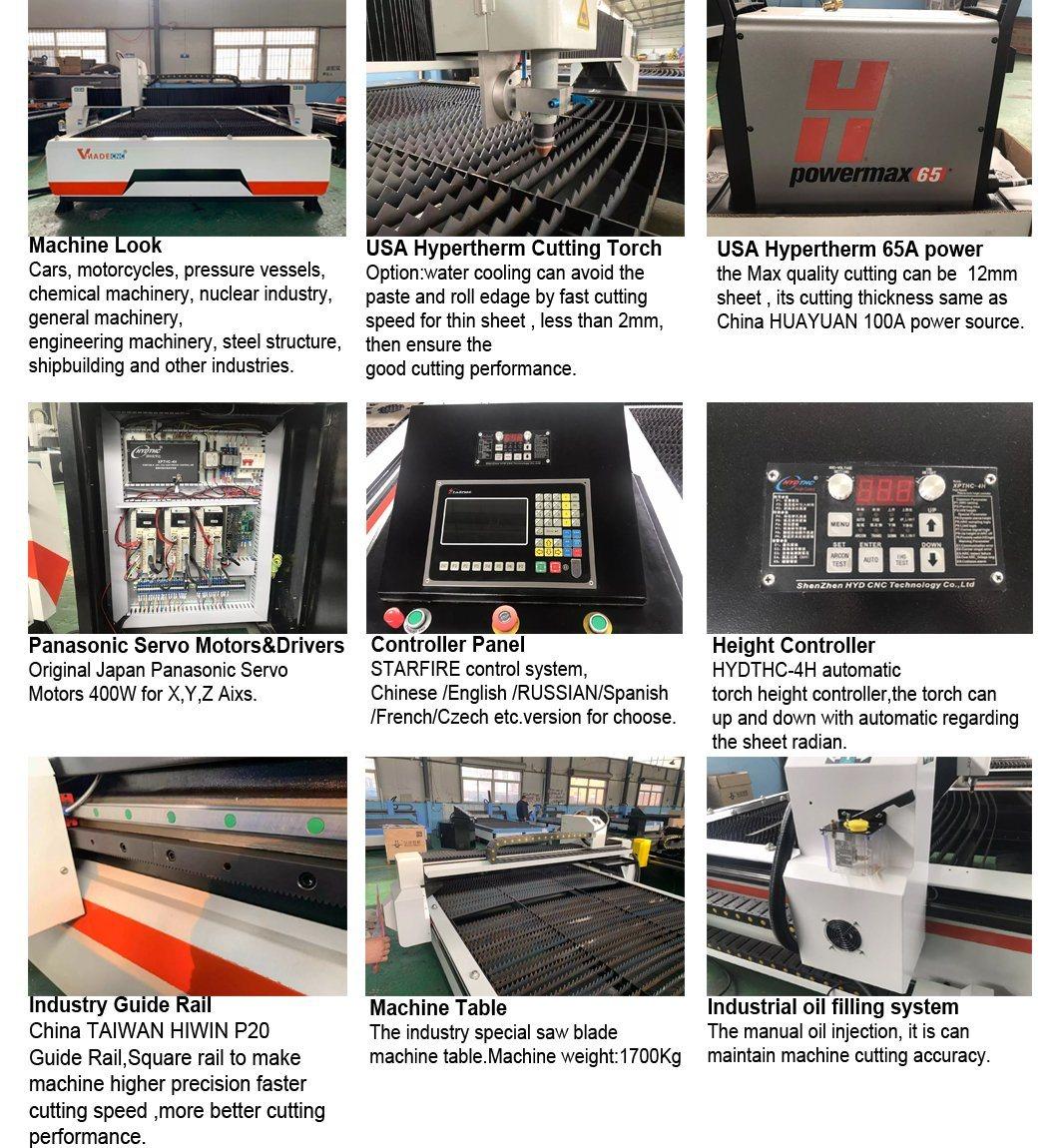

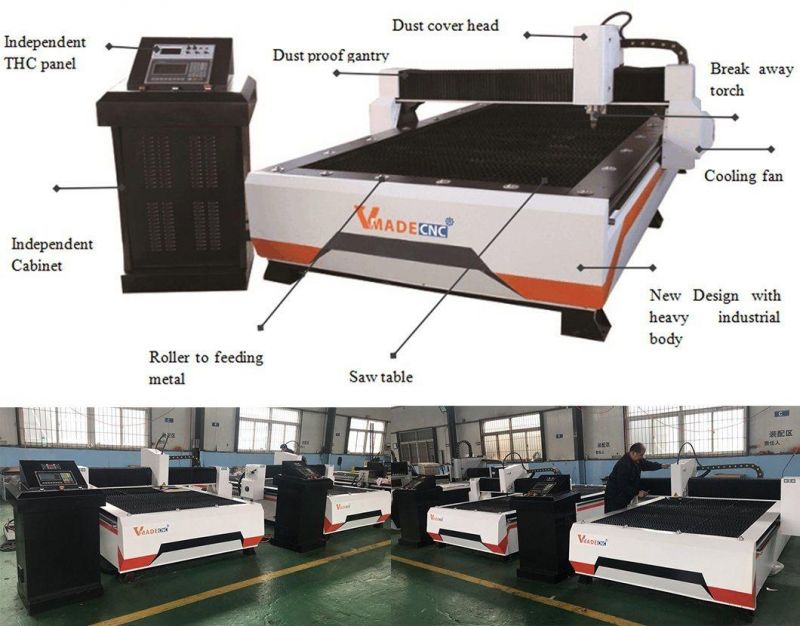

Detailed Images
Product Paramenters

Model	Plasma Cutting Machine
Working Size	600*900mm,1200*1200mm,1300*2500mm,1500*3000mm,2000*4000mm
Repeat positioning accuracy	+-0.05mm
Traveling Speed	0-24000rpm/min
Cutting Speed	10-15mm/min
Transmission model	Gear Rack Drive
Transmission System	X,Y Axis Taiwan Hiwin High-precision, Zaro Clearance increased, Linear guide+rack
Operation System	START or DSP with USB Interface
Drive	Stepper, Leadshine-Stepper,YASKAWA or Pansonic
Plasma Power Supply	USA Hypertherm or China best HUAYUAN
Cutting thickness	0.1-30mm(different power cutting different thickness)
Cutting type	Plasma/Oxy[-acetylene or Propane
Input Voltage	3 phase ,220V/380V+-10%
Model of file transfer	USB Interface
Guide Way	Imported square rail
Table-board	Steel blade saw tooth mesa
Straight line positioning precision	+-0.2mm/10m
Straight line positioning precision	+-0.3mm/10m
Environmental Temperature	-5~45ºC
Humidity	<90% NO concreting

Plasma Source Brand and Cutting Thickness

China HUAYUAN Source:	USA Hypertherm Source:
63A(Max 5mm thickness matel plate)	45A(Max 5mm SS,Aluminum.8mm CS.)
100A(Max 6mm SS,Aluminum.12mm CS.)	65A(Max 8mm SS,Aluminum.12mm CS.)
120A(Max 10mm SS,Aluminum.18mm CS.)	85A(Max 12mm SS,Aluminum.16mm CS.)
160A(Max 15mm SS,Aluminum.25mm CS.)	105A(Max 16mm SS,Aluminum.20mm CS.)
200A(Max 20mm SS,Aluminum.30mm CS.)	125A(Max 18mm SS,Aluminum.25mm CS.)

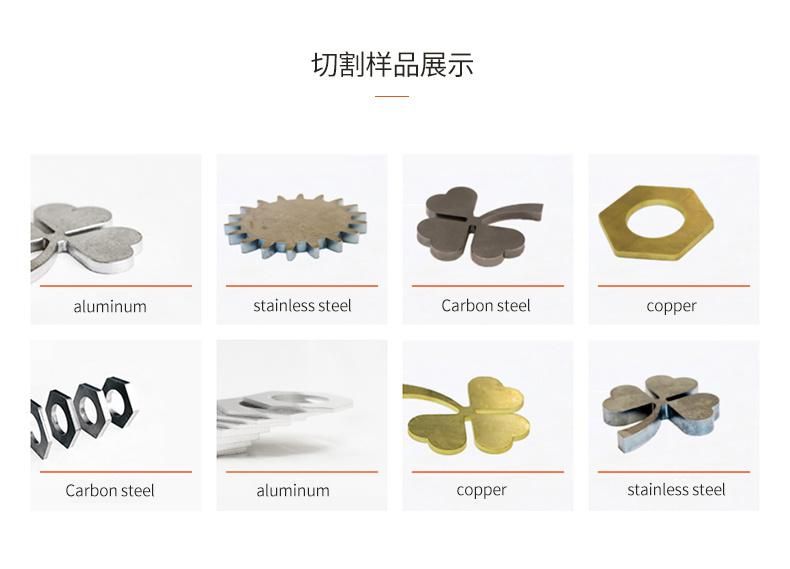

Sample



VLP-1325 model Packing Size:3300*2280*1750mm Weight:1100Kg
VLP-1530 model Packing Size:3900*2280*2220mm Weight:1700Kg
VLP-2060 model Packing Size:6800*2260*1700mm Weight:2000Kg

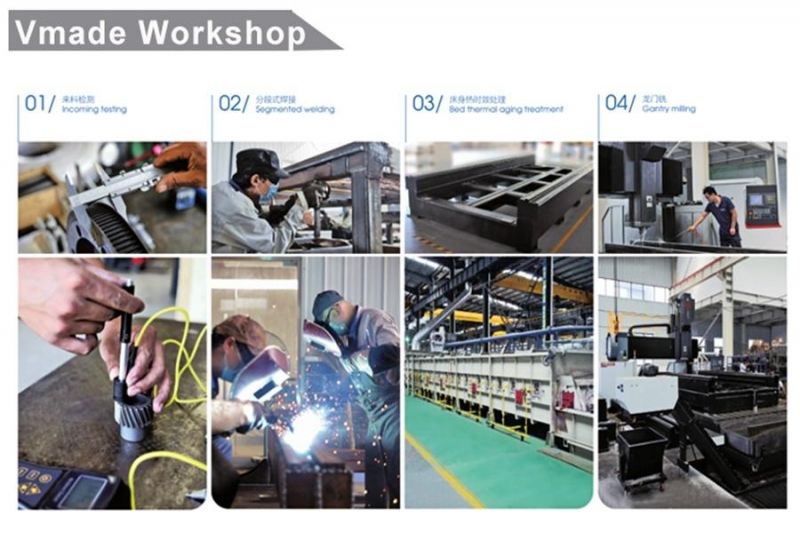

Company Profile
