1250 Galvanized Steel PPGI Trapezoidal Metal Roofing Sheet Roll Forming Machine Design Manufacture
Hangzhou Zhongyuan Machinery Factory- Type:Mechanical Press
- Forging Forming Method:Cold Roll Forming
- Power Source:Electric
- Feature:Automation
- Certification:ISO9001, CE
- Warranty:12 Months
Base Info
- Model NO.:Roofing Sheet Roll Forming Machine
- Customized:Customized
- Advantage:Use Widely
- Condition:New
- Name:Hydraulic Cutting Sheet Metal Forming Machinery
- Voltage:415V,50Hz,3phase
- Main Motor:7.5kw
- Shafts for Rollers:72mm Diameter Solid Steel
- Rollers Material:No.45 Forged Steel, Plated with Hard Chrom
- Cutter Material:Cr12 Mould Steel Being Quenched Treatment
- Controlling System:Mitsubishi PLC & Converter
- Quality System:ISO9001
- Guarantee Time:First Year Free, Lifetime Services
- Transport Package:1*20gp&1*40gp
- Specification:CE SGS BV ISO
- Trademark:Zhongyuan
- Origin:China
- HS Code:84552210
- Production Capacity:10sets,Month
Description
ItemSpecification
Raw Material Type Pre-painted steel coil & galvanized coils Thickness(mm) 0.3-0.7 Yield strength(mpa) 235-550 Roller material 45# steel , coated with Chrome Shaft for rollers Solid shaft with 72mm,processed with cylindrical grinder Forming speed(m/min) About 20-25 Output speed(m/min) About 12 for 6m length sheet Speed adjusting mode Mitsubishi frequency transformer Roller drive Decelerating motor + Chain drive Cutting mode Hydraulic cutting Cutter material Cr12 mould steel Length measurement Nemicon Encoder Control mode Mitsubishi PLC Operating mode Button + Mitsubishi Touch screen Main motor power(kw) 7.5KW Total power(kw) 9.7 KW

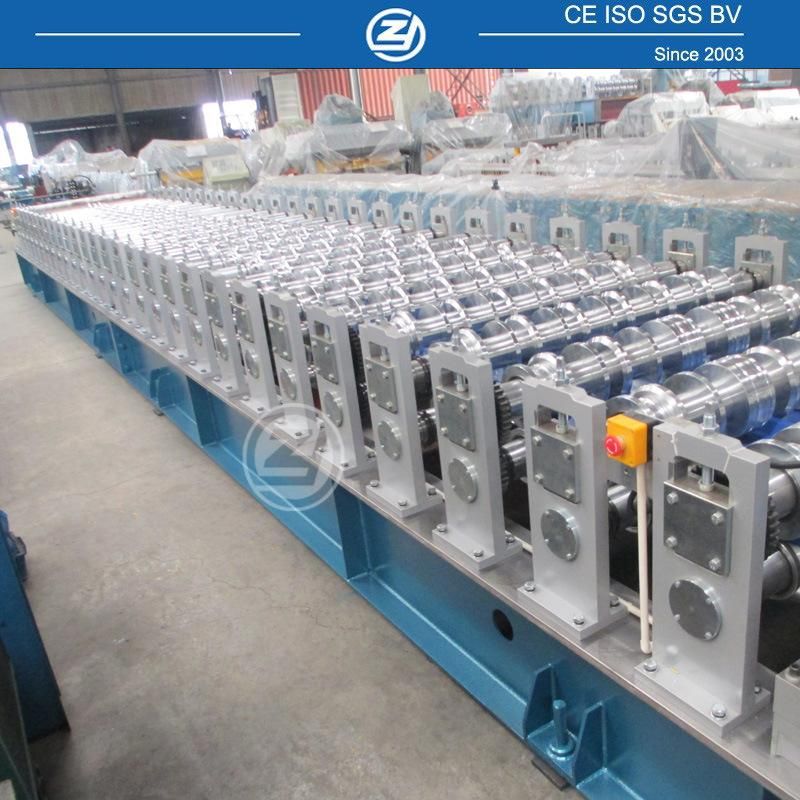

Components of Metal roof roll forming machineDecoiler (manual decoiler and
hydraulic decoiler for option)1set Feeding & guiding device 1set Main roll forming machine 1set Hydraulic cutting system 1set Controlling system 1set Run out table (auto. Stacker for option) 1set
Components spec.:
1. Decoiler Max. Capacity: 5000kgs
2. Hydraulic station power: About 2.2Kw (Depend on final design)
3. Control system: Mitsubishi PLC with touch screen
4. Cutting length: Cut-to-length
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table
Why choose this Metal roof roll forming machine?
1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years

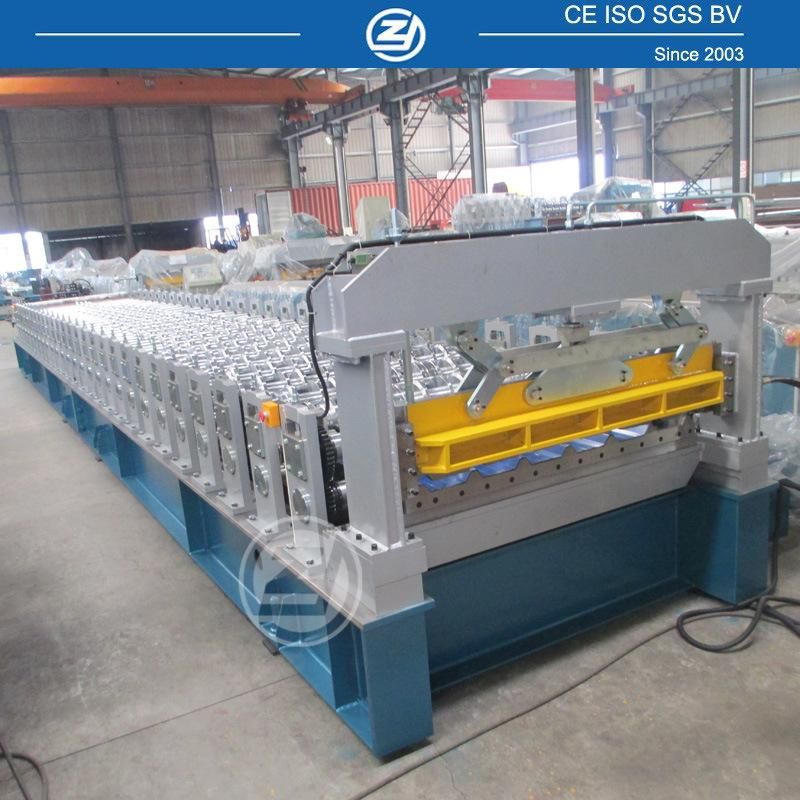

5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
Improved structure, more stable cutting performance.
6. Product cut-to-length.
7. 72mm diameter solid steel shaft
Packing of Metal roof roll forming machine:
1. One 40feet container for loading one set machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
Delivery : about 50 days
Please feel free to contact us for more information.
