Automatic High Efficiency Gantry Type CNC Plasma Flame Cutting Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Cutting Mode：Plasma Cutting
- Model：Cncp Series Cutting Machine
Base Info
- Model NO.：CNCP
- Cutting Gas：Oxyacetylene Oxygen,Oxyfuel Propane Acetylene
- Rail Gauge：3000,4000,5000,600,7000,9000mm
- Effective Cutting Width：2200,3200,4200,5200,6200,8200mm

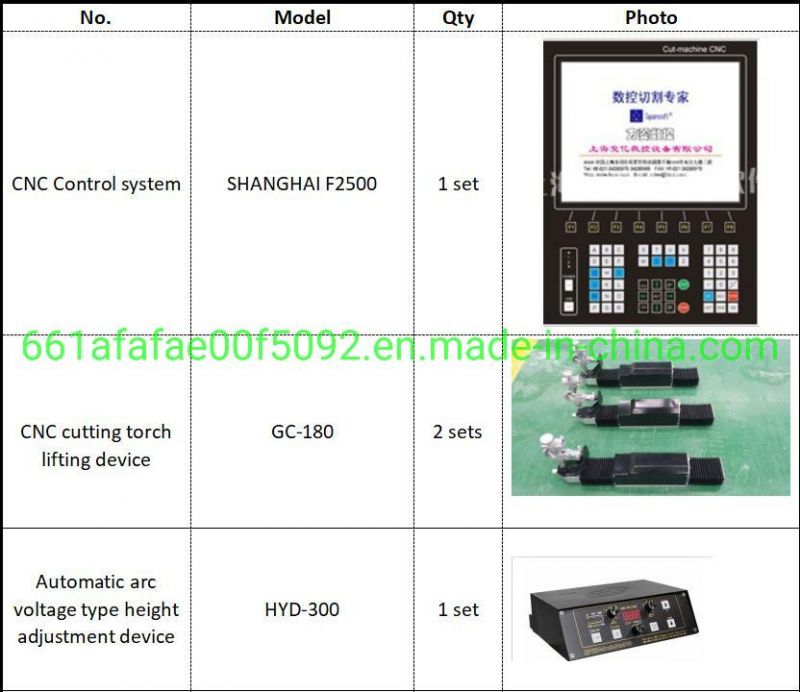

- CNC System：FL(Shanghai) or Starf(Beijing)
- Plasma Model：Lgk, Hypertherm or Customized
- Transmission Mode：Double Drive Precision Rack Transmission
- Plasma Auto Height：Have
- Horizontal Rail：Precision Double-Axis Guide Rail
- Longitudinal Rail：18kg T-Type Rail,24kg Heavy-Duty Rail (Optional)
- Idle Speed：50-10000mm,Min
- Cutting Lift Stroke：1-200mm
- Repeatability：0.5mm
- Plasma Supply Pressure：0.8 MPa
- Flame Supply Pressure：Oxygen Pressure 0.8MPa,Gas Pressure 0.1MPa
- Transport Package：Standard Package
- Specification：Flame Acetylene Gas or Liquefied CNC cutter
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8461909000
- Production Capacity：1000 PCS,Year
Description

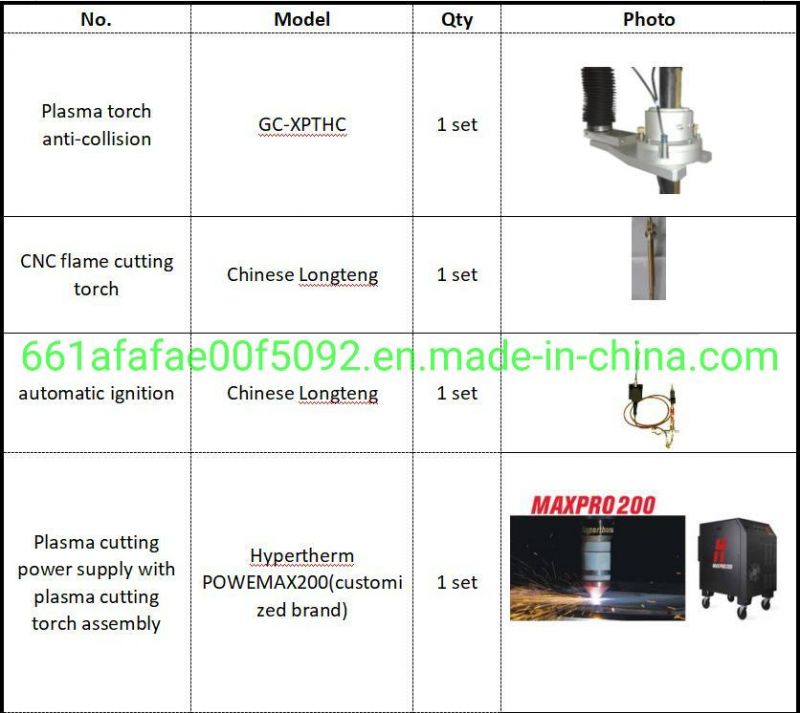

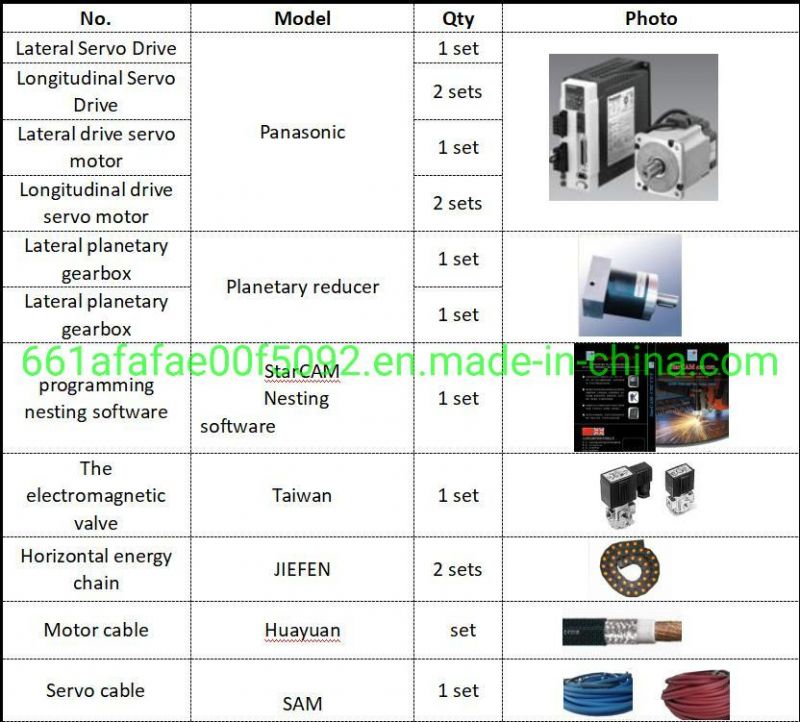

Japan's Panasonic, Xinbao, Mitsubishi, Germany's NEUGART, Australia's FastCAMCNCP-4000 unilateral 4000mm 3200mm 12000 150mm CNCP-5000 bilateral 5000mm 4200mm 12000 150mm CNCP-6000 bilateral 6000mm 5200mm 12000 150mm CNCP-7000 bilateral 7000mm 6200mm 12000 150mm CNCP-8000 bilateral 8000mm 7200mm 12000 150mm CNCP-9000 bilateral 9000mm 8200mm 12000 150mm CNCP-10000 bilateral 10000mm 9200mm 12000 150mm

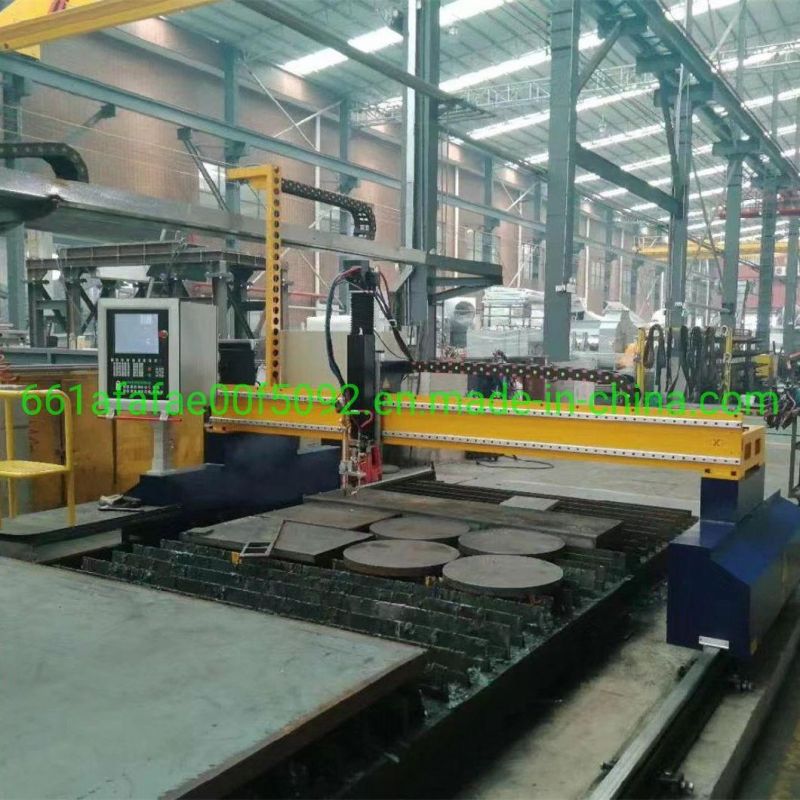

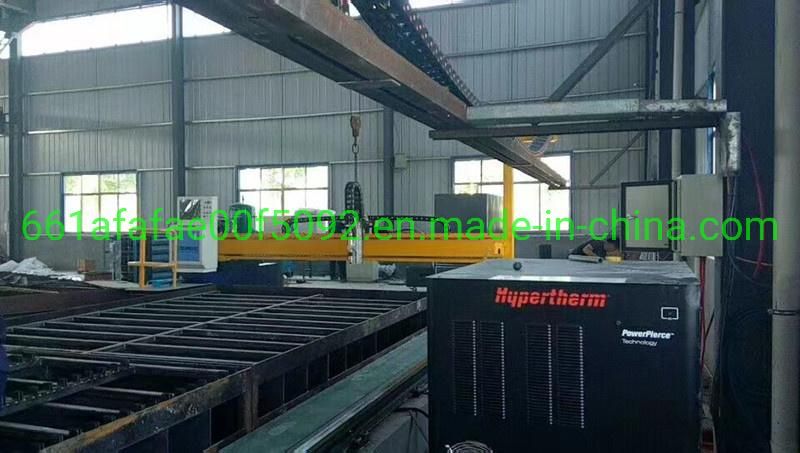

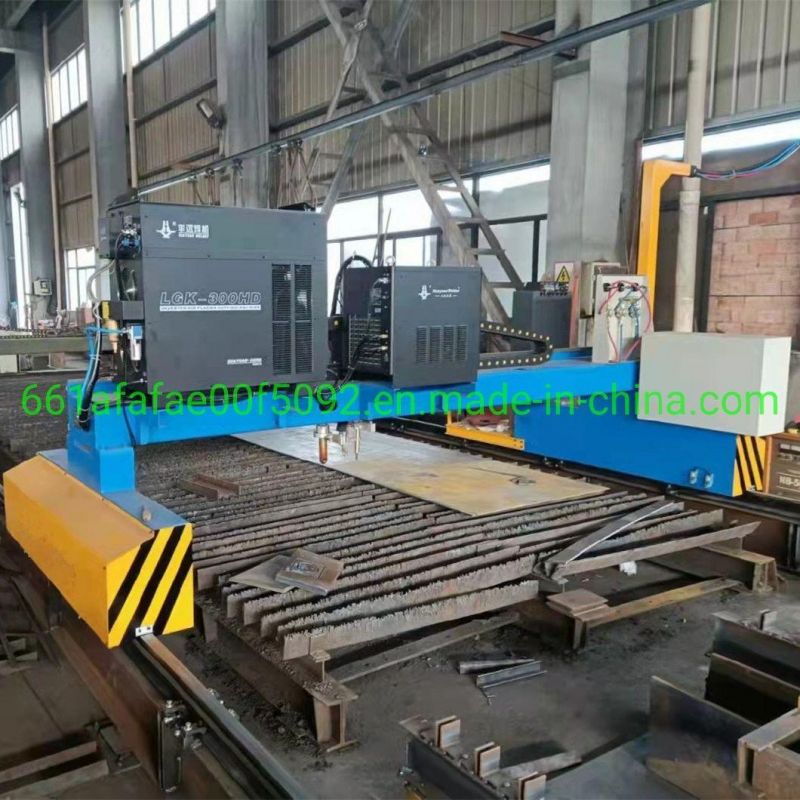

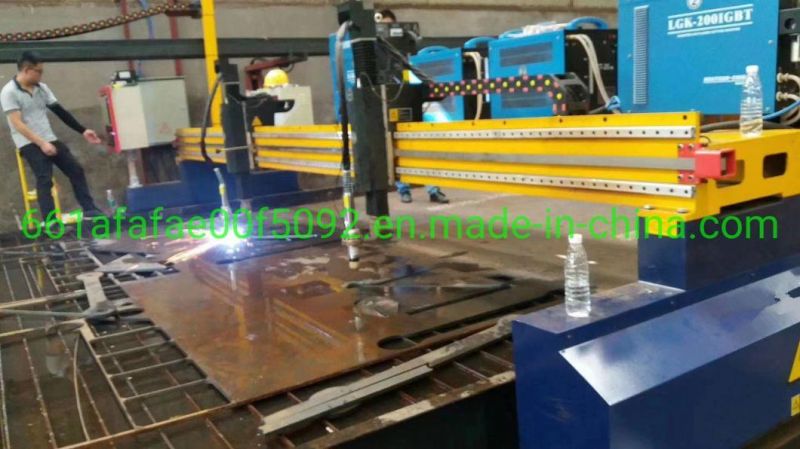

Details of CNC Plasma Flame cutting machine:

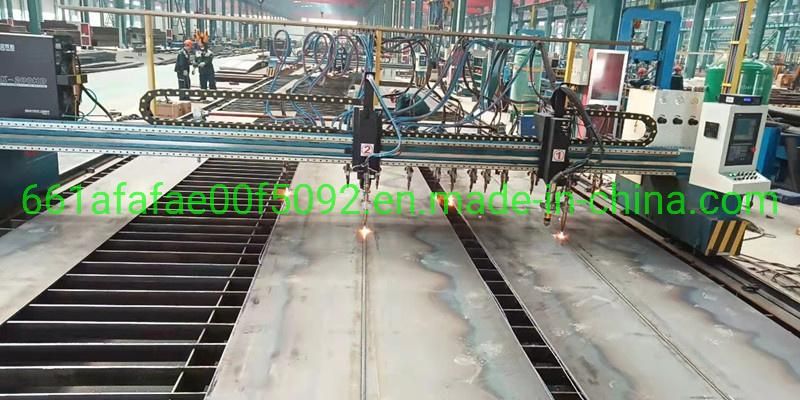

Features of CNC Plasma Flame cutting machine Gantry table type:
1.The main beam of the large-scale gantry CNC plasma flame cutting machine adopts a special rectangular steel plate tailor-welded structure, which is tempered to relieve stress, increase rigidity and prevent deformation
2.Longitudinal working accuracy and positioning accuracy of metal sheet CNC plasma flame gas cutter are high.
We use high-precision gear and rack transmission, and the meshing between the gear and rack is spring-pressed.
Equipped with high-precision precision planetary gearbox and AC servo system, under the control of CNC numerical control system, it is easy to control the working accuracy of the machine
3.The requirements of the transverse drive working accuracy and positioning accuracy of the carbon steel plasma cutting machine are the same as those of the longitudinal drive.
Linear guide rails are used for guidance, bearings and eccentric wheels are used for clamping, and high-precision gear and rack transmission are used.Realize the cnc plasma flame gas cutting machine smooth movement of the torch in the same direction and in the mirror direction.
4.CNC Plasma Flame Oxygen cutting machine adopts Split electrical cabinet:
The integrated circuit mode is adopted to minimize the interference, greatly speed up the work efficiency, and prolong the life of the system to the greatest extent
FAQ:
Q1: What is the difference between portable plasma cutting machine and gantry plasma cutting machine?
Portable plasma cutters are low cost and easy to carry. Compared with portable and cantilever CNC cutting machines, gantry CNC plasma cutting machines are more stable. It can add multiple torches and even achieve multi-head straight cutting.
Q2: During the epidemic, installation cannot be provided. How can we use the machine after we receive it?
We provide a complete operating manual or and instructional video. If you have difficulty studying, we can also help you online, explain by phone, whatsapp or skype, wechat.
Q3: Can you customize the machine?
of course can. According to customer requirements and sheet size, we provide customized solutions.
Q4: How to ensure the quality of the machine? What if the machine breaks?
The machine has a 1-year warranty, and faulty parts will be replaced free of charge. After the warranty period, customers need to buy accessories, we provide free technical support.
Q5: What are the random documents shipped?
Including packing list, commercial invoice, bill of lading and other proofs required by customers.
Q6: Delivery time?
For standard machines, 7-10 working days; for non-standard machines, it will be 20-30 working days.
Q7: How to pay?
Usually we accept T/T or L/C.
Q8: Do you arrange delivery for me?
For FOB or CIF prices, we will arrange the shipment for you, for EXW prices, you should arrange the shipment yourself.
