• Name：Steel Bending Machine
• Rotating Speed：1440r,Min
• Curvature Radius：More Than 100mm
• Model：Gwh-24
• Transport Package：Wooden Case
• Specification：860*600*700
• Trademark：YUGONG
• Origin：China
• HS Code：8463900090
• Production Capacity：100 Set,Month

Basic Info.

Name Steel Bending Machine Rotating Speed 1440r/Min Curvature Radius More Than 100mm Model Gwh-24 Transport Package Wooden Case Specification 860*600*700 Trademark YUGONG Origin China HS Code 8463900090 Production Capacity 100 Set/Month

Product Description

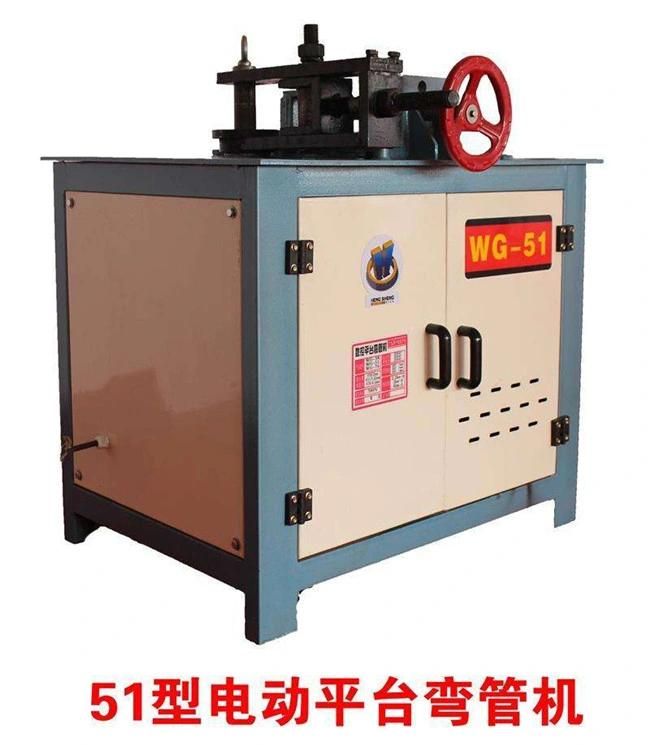

Description of tube bender

Reinforcing steel bar bending machine one of the processing machinery.

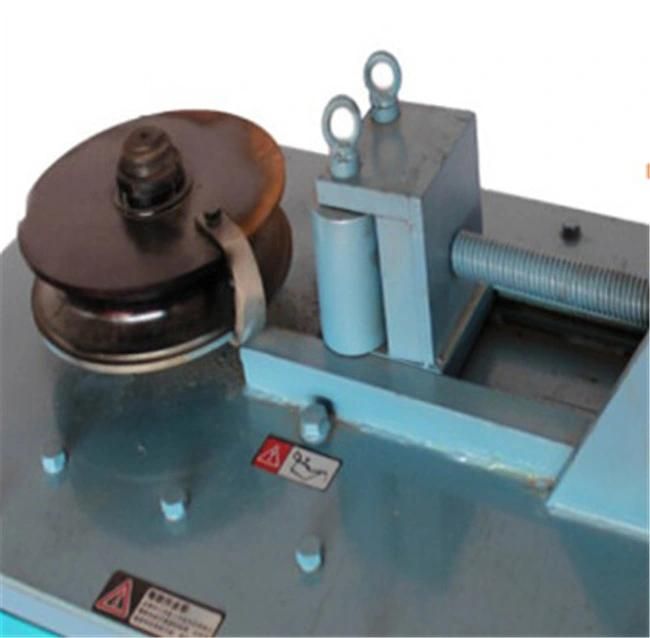

The working mechanism is a horizontal working disk rotating on the vertical axis, placing the reinforcing bar in the dotted line position, the supporting pin is fixed on the machine tool, the center pin and the bending pin are mounted on the working disk, When they bend the steel bar.

In order to bend a variety of diameter of the bar, there are several holes in the working plate to insert pressure bending pin, and it also can be replaced by a different diameter of the central pin

Feature of tube bender    Advanced design,Solid and reliable,Compact structure,Convenient operation,Safe and durable,Stable performance.

1. Special use thickening steel plate,High rigidity iron disc,High-power medium-speed national standard motor,Quality more stable.
2. Totally enclosed transmission,low noise,equipped with adjustable speed gear,and two kinds of speed,it is more convenient to use.
3. Specially added eccentric sleeve,ultra-high hardened attachments,adjustable damper,longer service life.

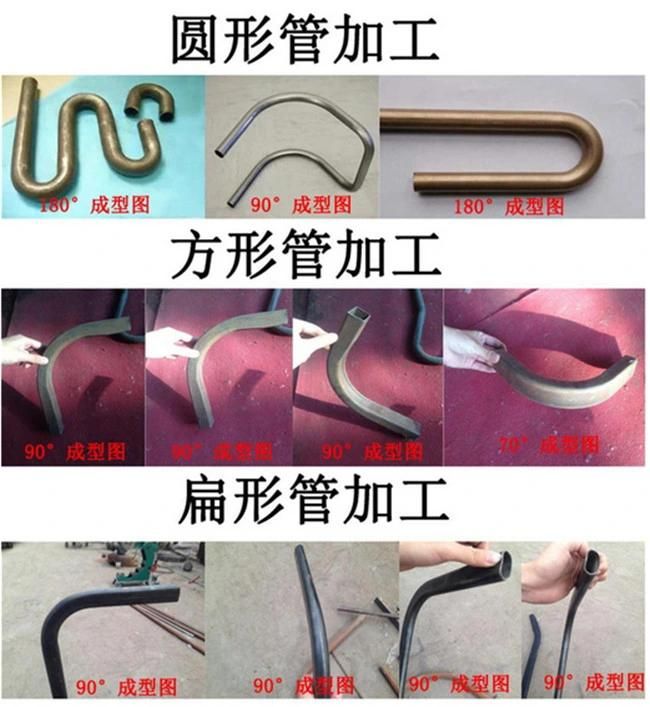

Application for tube bender
The box is fully enclosed design, to prevent the machine deformation in heavy loads and loading and unloading machine oil spills.
Intermediate shaft, intermediate shaft gear, input shaft, output shaft, intermediate shaft, work plate, stop block and pile head cover are all quenched, tempered and high-frequency heat treated.
 High-quality alloy steel, 12mm thick box,heavy load work, long service life.Technical parameter of  tube bender

Model	YG-40	YG-45	YG-46
Spindle speed	-	2.685r/min	8-12r/min
Working plate size	Φ350mm	Φ400mm	Φ320mm
Motor power	4kw	4kw	4kw
Voltage	380v	380v	380v
Motor speed	1420r/min	1440r/min	1420r/min
Weight	350kg	450kg	-
Size	930*730*710mm	1060*810*720mm	-
Bend diameter range	ordinary carbon steel≤Φ40mm  grade rebar ≤Φ36mm	ordinary carbon steel≤Φ50mm  grade rebar ≤Φ40mm	ordinary carbon steel≤Φ45mm  grade rebar ≤Φ34mm

 Our services
1.Any inquiries will be replied within 12 hours.
2.Professional manufacturer, Welcome to visit our factory at any time.
3.High quality, fashion designs, reasonable & competitive price and fast lead time.
4. Protection of your sales area, ideas of design and all your private information.
5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.

Company Information
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery.

packaging &shipping

1. Packaging: 1)Wrapped by proctective film;
                         2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:    By logistics; by automobile; by train; by shipping; by air etc.
