840/836 Kenya Type Courrgated Trapezoidal Double Layer Roof Metal Sheet Rolling Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Hydraulic Pressure
  • Feature：Automation
  • Certification：CCC, ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：DX-840,836-1000
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Name：Double Layer Roof Metal Sheet Rolling Machine
  • Processing Material：Aluzinc,Galvanized Steel,Colored Steel Coil
  • Material Thickness：0.3-0.8mm
  • Feeding Width：1250mm
  • Main Motor Power：4kw
  • Pump Power：4kw
  • Shaft Diameter：75mm
  • Forming Steps：13 Rolls
  • Main Frame：300h Steel
  • Medium Plate Thickness：16m
  • Transport Package：Simple Waterproof Fit for Ocean Ship, Need a 20 Gp
  • Specification：ISO CE BUV
  • Trademark：DIXIN
  • Origin：Botou City, Hebei Province
  • HS Code：845522
  • Production Capacity：20 Set Per Year

Description


1Name840/836 Kenya type courrgated trapezoidal Double Layer Roof Metal Sheet Rolling Machine2Main motor power5.5kw3Hydraulic motor power4kw4Hydraulic Pressure10-12MPa5Voltage380V /3phase/ 50 HZ (or as your requirement)6Control SystemPLC Delta Inverter7Main Frame300mm H-Beam8Backboard Thickness16mm9Chain Size1inch10Feeding Materialcolor steel coils11Feeding Thickness0.3-0.8mm12Feeding Width1000mm13Effective width840/836mm14Productivity8-12m/min15Roll Station13rollers16Roller Diameter75mm17Roller material45# steel18Cutter materialCr12 , quenched19Cr-Plating Size0.05mm20Overall Size7500×1400×1500mm21Total Weight4.0T22ComponentsManual Uncoiler-------------------2 sets
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------2 sets23WorkflowManual decoiling----feeding and guiding----roll forming----cut to length----run out table24PackageMain machine is nude in the container25Minimum order quantity1 set26Payment termsT/T(30% T/T pay in advance, the remaining 70% pay before ship)27Delivery time30 working days later after receiving the deposit840/836 Kenya Type Courrgated Trapezoidal Double Layer Roof Metal Sheet Rolling Machine
840/836 Kenya Type Courrgated Trapezoidal Double Layer Roof Metal Sheet Rolling Machine


Specific description

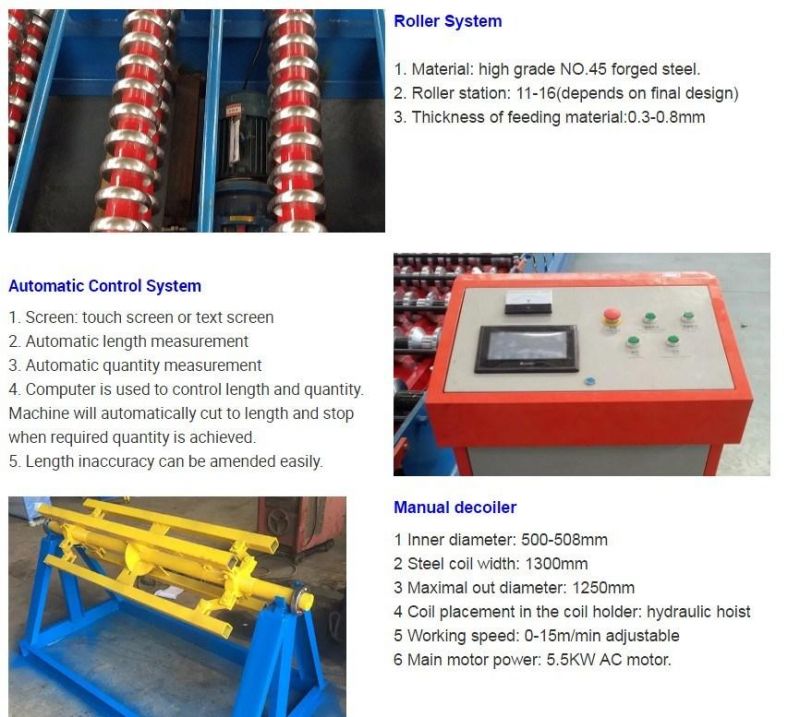

(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

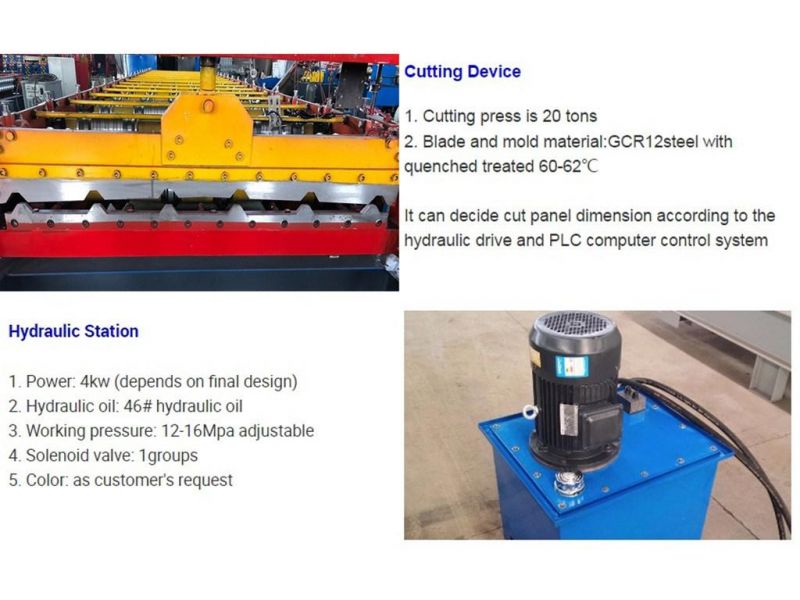

(2) Hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts Delta PLC to control, the target sheet length is adjustable.
Computed mode has two modes: automatic and manual.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
6. Payment term
 TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
7. Warranty
12 months, and lifelong technical support service
8. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 50 USD/day for salary.
9. Package
Standard export package, water-proof package, covered with plastic film
 840/836 Kenya Type Courrgated Trapezoidal Double Layer Roof Metal Sheet Rolling Machine

10.Service
One year warranty and lifelong technical support will be provided.
If you come here,we can teach you how to use it on-site for free.If not,We can learn by video.It is easy to operate.
We can send our technicians to you to give you on-site training. The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of USD 80.
