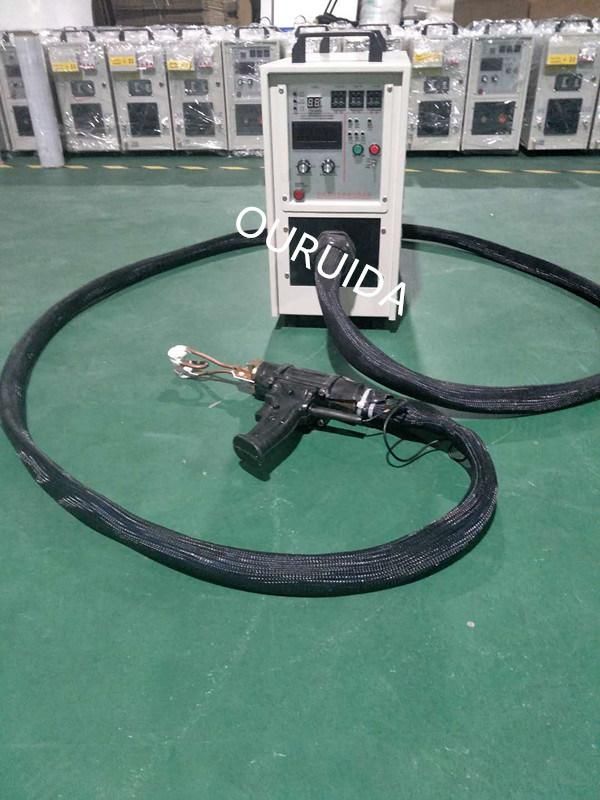

Monthly Deals Hfh-25kw Portable Handheld Induction Heating Machine

Foshan Sinfor Electro-Machanical Equipment Co., Ltd.
  • After-sales Service:Within 24hours Response
  • Warranty:18months From Delivering, 12months From Receiving
  • Type:Induction Heating Machine
  • Max Current:28A
  • Coaxial Cables:>,=4.5m
  • Application Range:Heating, Soldering, Welding

Base Info

  • Model NO.:HFH-25KW
  • Power:25kw
  • Heating Way:Remote,Manual,Time
  • Frequency:30-80kHz
  • Input Voltage:380V,415V,440V,480V,220V*3phase
  • Working Frequency:50-60Hz
  • Time:100.9s
  • Cooling Way:Water Cooling
  • Transport Package:Export Wooden Box
  • Specification:CE, SGS
  • Trademark:ORD
  • Origin:China
  • HS Code:8514400090
  • Production Capacity:100000set,Year

Description

TypeHF-25KW Work power3×380V(415V,440V,480V)50-60HZThe range of operating voltage340V-430V(370-480)V ACOutput power25KWFluctuating frequency   30-80KHZ    Max Input Current25A-28ATiming (Heat time, Retain time , Cool time)1-99SThe flow rate of cooling water  0.08-0.16 Mpa 9L/MinWater temperature protection point   40ºCDuty cycle100%(40degree room temperature)Weight45Kg +5KG Size600*230*500MM


Monthly Deals Hfh-25kw Portable Handheld Induction Heating MachineMonthly Deals Hfh-25kw Portable Handheld Induction Heating Machine
Monthly Deals Hfh-25kw Portable Handheld Induction Heating MachineMonthly Deals Hfh-25kw Portable Handheld Induction Heating MachineMonthly Deals Hfh-25kw Portable Handheld Induction Heating Machine

Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.

3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenane
6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee.
