• Model NO.：Z94-5.5C,4C,3C,2C,1C
• Production Capacity：200PCS,Month

Basic Info.

Model NO. Z94-5.5C/4C/3C/2C/1C Production Capacity 200PCS/Month

Product Description

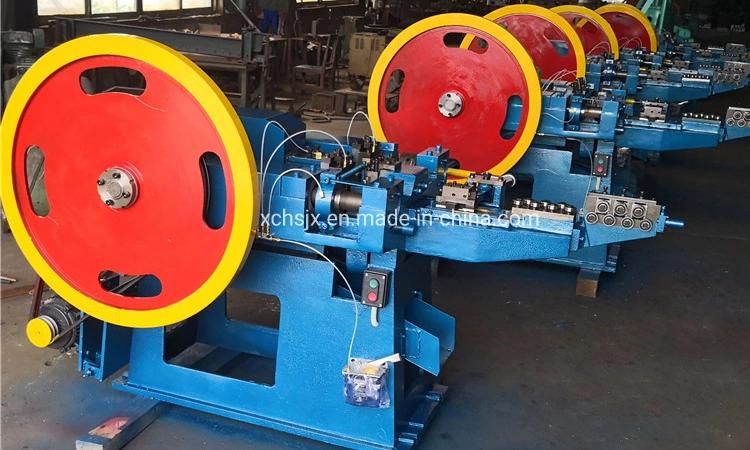

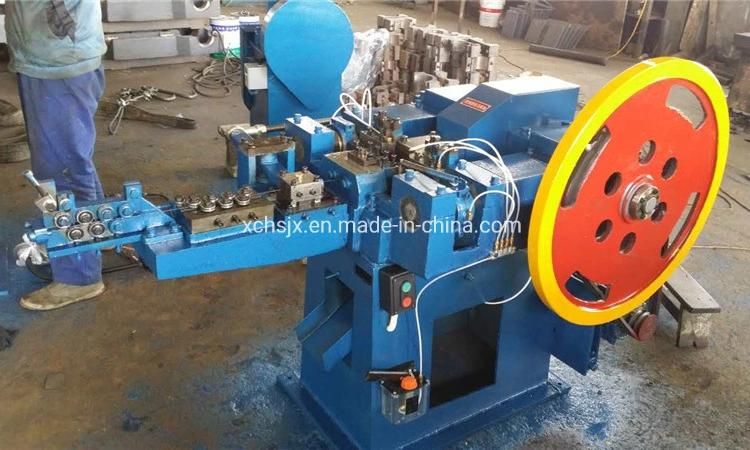

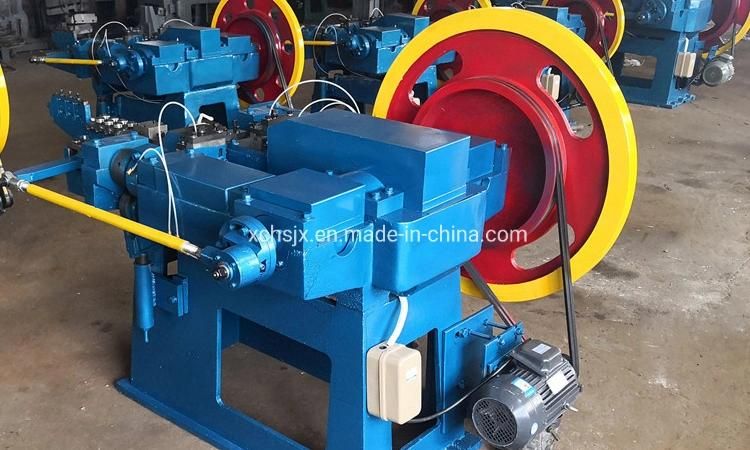

Product Photos

Product Description
This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.
Product Parameters

Model	Z94-5.5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Max. dia. of nail	5.5mm	4.5mm	3.5mm	2.8mm	1.6mm
Min. dia. of nail	3.8mm	2.8 mm	1.8 mm	1.2 mm	0.9 mm
Max. Length of nail	150mm	100mm	75mm	50mm	25mm
Min. length of nail	80mm	50 mm	30mm	16mm	9mm
Motor power	5.5kw	4kw	3kw	2.2kw	1.5kw
Nail making speed	220pcs/min	260pcs/min	320pcs/min	380pcs/min	450pcs/min
L*W*H	2.5*1.6*1.5m	2.2*1.6*1.65m	2.0*1.4*1.4m	1.7*1.3*1.4m	1.5*1.3*1.2m
Weight	2.1tons	1.8 tons	1.5 tons	1.15 tons	0.8 ton
Output	2000kg/8h	1500kg/8h	800kg/8h	500kg/8h	80kg/8h

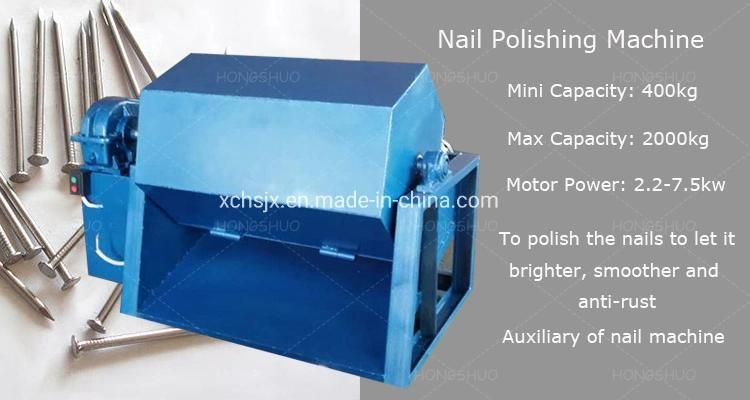

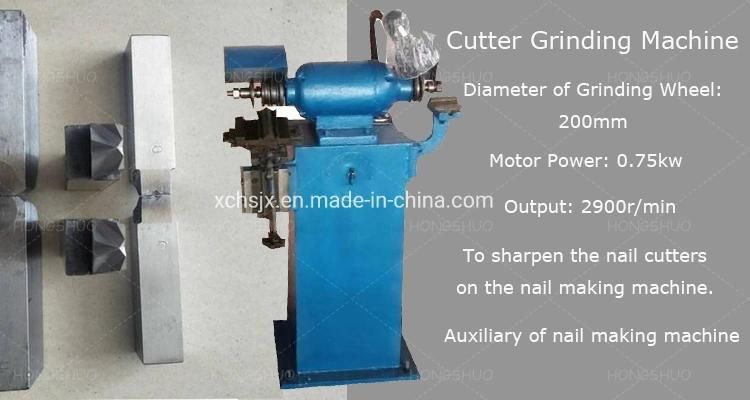

Auxiliary Equipment

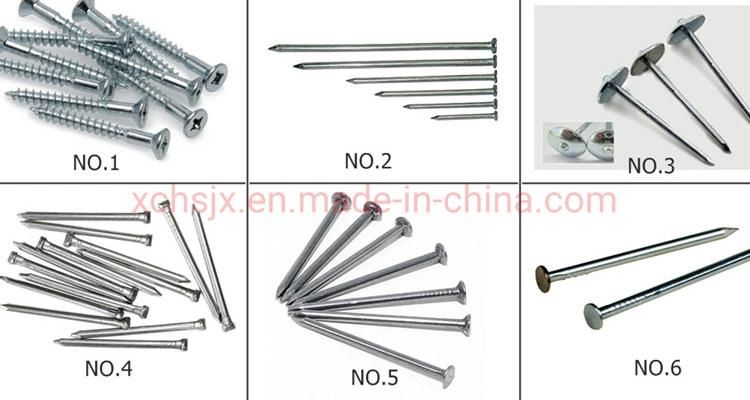

End Product

Company Overview

Remarks:
1. The payment terms: 30% deposit by T/T, 70% balance should be paid before shipment.
2. Delivery time: 10days after receiving 30% deposit.
3. Warranty time: Two years (wearing parts are not included in the warranty scope.)
