• Model NO.：KIM-35AB, KIM-45AB, KIM-70AB, KIM-90AB, KIM-110AB
• Color：Blue and Yellow
• Warranty：One Year
• Transport Package：Angle Iron Frame and Human Made Wooden Sheet Box
• Specification：CCC, ISO, UL, CE
• Trademark：DuroWelder
• Origin：USA and China
• HS Code：8514400090
• Production Capacity：1000sets,Year

Basic Info.

Model NO. KIM-35AB, KIM-45AB, KIM-70AB, KIM-90AB, KIM-110AB Color Blue and Yellow Warranty One Year Transport Package Angle Iron Frame and Human Made Wooden Sheet Box Specification CCC, ISO, UL, CE Trademark DuroWelder Origin USA and China HS Code 8514400090 Production Capacity 1000sets/Year

Product Description

Main Features
1. Big power, low frequency and good diathermancy.
2. High efficiency, economize on power, easily installed and simply operating.
3. The absolute load merit rate design, can work continuously for 24 hours.
4. Adopted IGBT inverting device tracking frequency automatically.
5. The function of protection itself is perfect, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc.
6. Manual, automatic regulating automatically, enhances the workpiece heating quality, the heating quality, the heating duplication and the continuity.

Main Technical Parameters

Type	The input voltage	The largest output power	Fluctuating frequency	The pressure of cooling water	The main/ Extension weight	The input water temperature
KIM-15AB	3- phase, 380-440V	15KW	1-20KHZ	0.02 MPA	20kg/ 30kg	<40ºC
KIM-25AB	3- phase, 380-440V	25KW	1-20KHZ	0.02 MPA	28kg/ 30kg	<40ºC
KIM-35AB	3- phase, 380-440V	35KW	1-20KHZ	0.03 MPA	43kg/ 50kg	<40ºC
KIM-45AB	3- phase, 380-440V	45KW	1-20KHZ	0.03 MPA	50kg/ 55kg	<40ºC
KIM-70AB	3- phase, 380-440V	70KW	1-20KHZ	0.05 MPA	70kg/60kg	<40ºC
KIM-90AB	3- phase, 380-440V	90KW	1-20KHZ	0.05 MPA	75kg/65kg	<40ºC
KIM-110AB	3- phase 380-440V	110KW	1-20KHZ	0.05 MPA	80kg/70kg	<40ºC
KIM-160AB	3- phase 380-440V	160KW	0.5-10KHZ	0.05 MPA	85kg/75kg	<40ºC
KIM-260AB	3- phase 380-440V	260KW	0.5-10KHZ	0.06 MPA	190kg/160	<40ºC
KIM-360AB	3- phase 380-440V	360KW	0.5-10KHZ	0.06 MPA	250kg/200kg	<40ºC

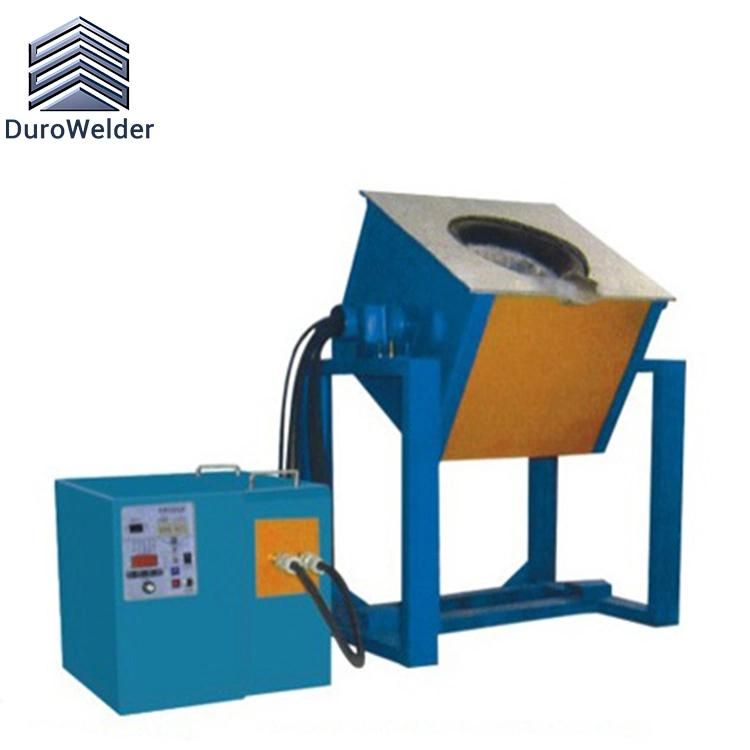

Machine Photo

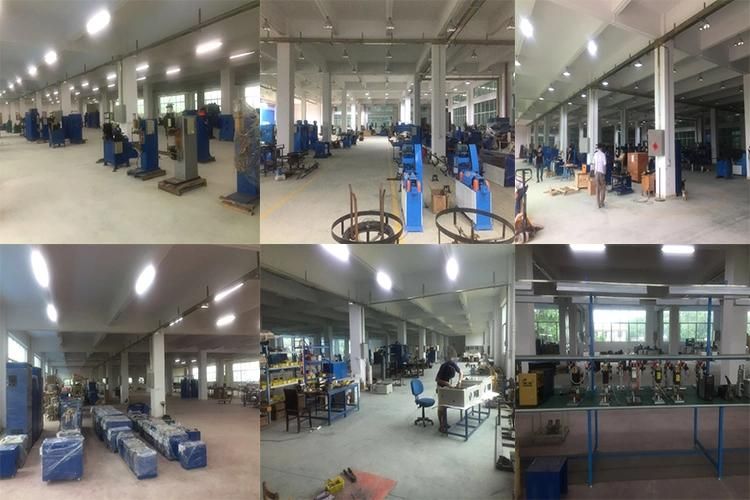

Factory Photo
