Yx153 Galvanized Metal Floor Deck Roll Forming Machinery for Sale

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Roll Forming
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：Yx153
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Color：Blue and Yellow
  • Machine Name：Yx153 Metal Deck Roll Forming Machine
  • Main Power：3*11kw
  • Roll Station：42stations
  • Transport Package：Sea Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：China
  • HS Code：84552210
  • Production Capacity：300set,Year

Description

Basic Info.

Model NO. Yx153 Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Machine Name Yx153 Metal Deck Roll Forming Machine Main Power 3*11kw Roll Station 42stations Transport Package Sea Packing Specification CE SGS Trademark SAIBO Origin China HS Code 84552210 Production Capacity 300set/Year

Product Description

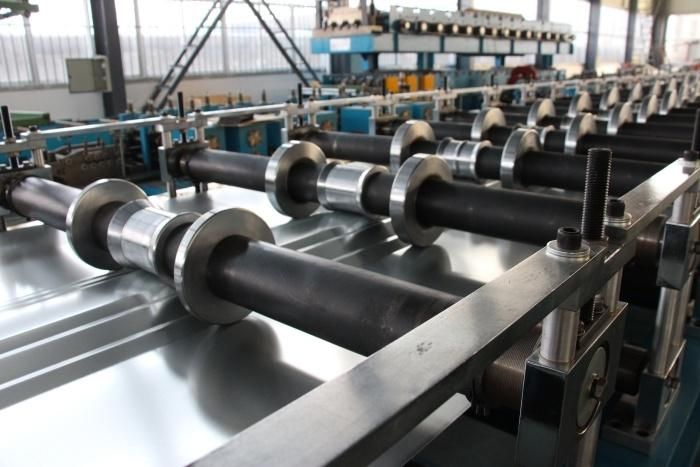

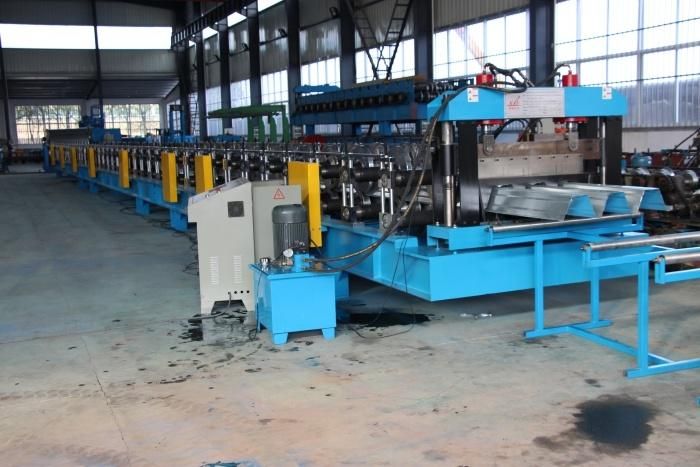

Product name:YX153 Metal deck roll forming machine
Description:
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.

2. Main technology parameter:
1) Main power: 3*11KW
2) Roll stations: 42stations
3) Drive way: 1.5 inch double chains
4) Diameter of shaft: 115mm
5) Cutting system: Hydraulic cutting
6) Length tolerance: ± 1.5mm
7) Working speed: 12-16m/min
8) Thickness of material: 0.8-1.5mm
9) Material of shaft: GCr15 steel, quenching HRC58-62
10) Material of blade: Cr12, quenched 58-62
11) Material of Rolls: Q195, Q235.
12) Transducer: Panasonic
13) Hydraulic pressure: 20Mpa
14) Hydraulic power: 5.5kw
15) Control system: PLC, Panasonic
