Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine

Hangzhou Suntech Machinery Co., Ltd.
  • Type:LZ Straight-Line Metal Drawing Machine
  • Usage:Wire, Rope Wire, Prestressed Steel Wire
  • Metal Material:Steel
  • Outlet Diameter:0.5-4.5mm
  • Max.Inlet Wire Dia.:8mm
  • Block Dia.:700mm

Base Info

  • Max. Number of Block:8
  • Certification:REACH, RoHS, ISO, CE
  • Condition:New
  • Transport Package:Seaworthy Packing
  • Trademark:SUNTECHMACH
  • Origin:China
  • HS Code:846330
  • Production Capacity:100 Sets,Year

Description

Model (Block diameter)

300

350

400

450

500

560

600

700

800

900

1200

Strength of inlet wire (MPa)

≤1250

Number of Block

2~11

2~11

2~11

2~12

2~12

2~12

2~12

2~9

2~9

2~9

2~9

Maximum diameter of inlet wire (mm)

2.8

3.5

4.2

5

5.5

6.5

8

10

12.7

14

16

Minimum diameter of outlet wire (mm)

0.5

0.6

0.75

1

1.2

1.4

1.6

2.2

2.6

3

5

Highest drawing speed (m/s)

 ~25

 ~20

 ~20

 ~16

 ~15

 ~15

 ~12

 ~12

 ~8

 ~7

 ~6

Drawing power (kw)

7.5~18.5

11~22

11~30

15~37

22~45

22~55

30~75

45~90

55~110

90~132

110~160



4. Detailed instruction to wire drawing machine:

4.1Transportation system:

Two grade belt transmission, double enveloping worm wheels, gearbox with hard tooth surface.

4.2Way of speed adjusting:

AC Frequency conversion speed adjusting or DC speed adjusting.

4.3Way of control:

Profibus field bus control system, touching screen show, human-computer communication, long-distance diagnose function.

4.4Way of take-up:

Spooler take-up, trunk take-up, headstand take-up, and all can take-up wire without stop work.

4.5Way of pay-off:

Spooler pay-off, high pay-off frame, "-" type pay-off, duck-nip pay-off, can pay-off without stop work.

4.6 Main function:

Slowdown to stop at fixed length automatically, wire broken test and stop work automatically, cut off any block to compose new technical process freely,slowdown to stop automatically when the protecting shield is open, show of all kinds of fault information and the solution, inspection and control of all kinds of running information.

4.7 Material that can be drawn:
Steel wire (High, middle, low carbon steel wire, stainless steel wire, pre-tension steel wire, bead wire, rubber tube wire, spring steel wire, cord wire and so on).Welding wire (Air protecting welding wire, submerged arc welding wire, flux cored wire and so on).lectric wire and cable (Aluminum-clad steel wire, copper wire, aluminum wire and so on).Alloy wire and other kinds of metal wire.

Notes: All the parameters might be changed according to the actual situation.

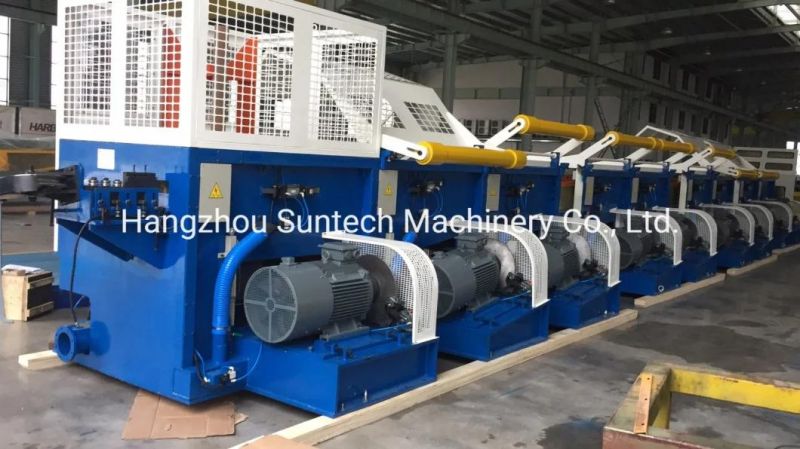

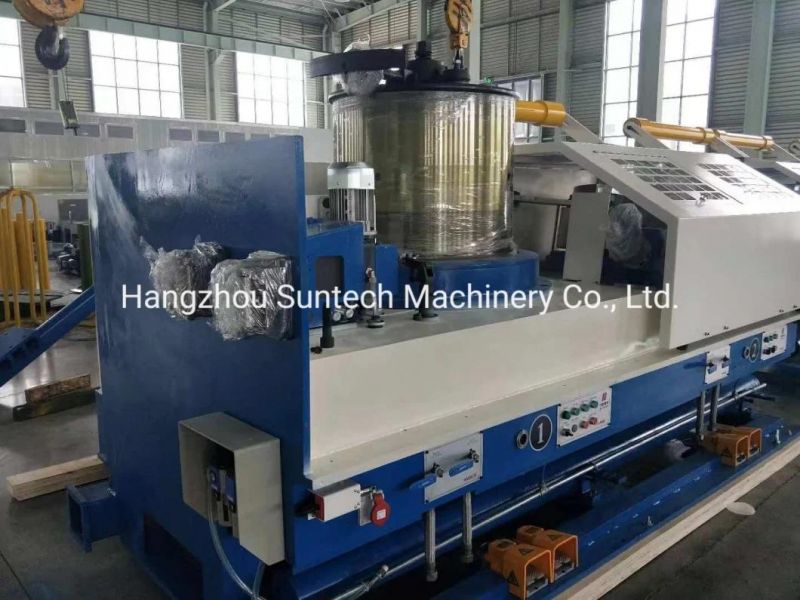

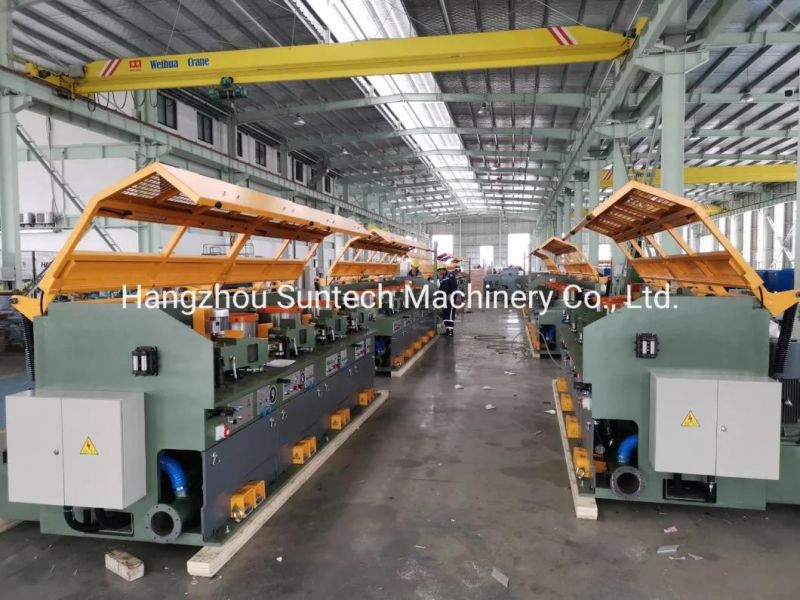

5. Details of machine for reference:
Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine



Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine
Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine

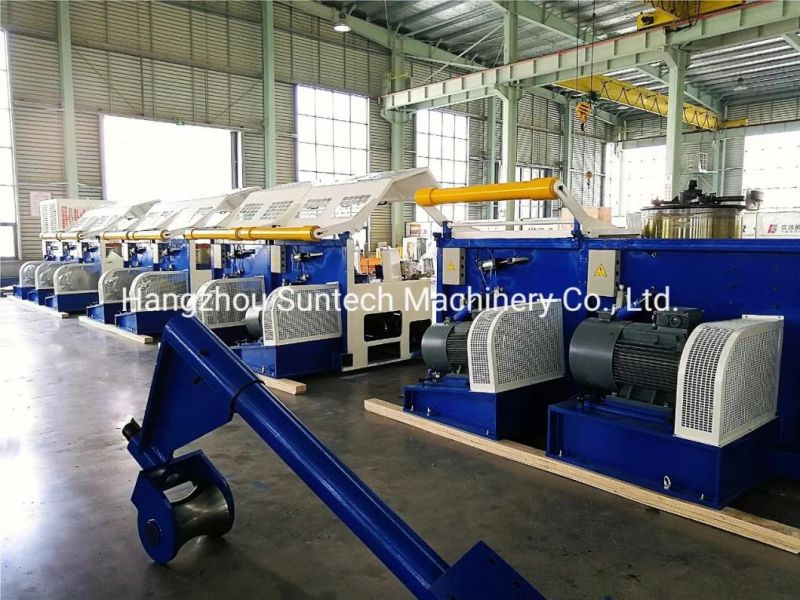

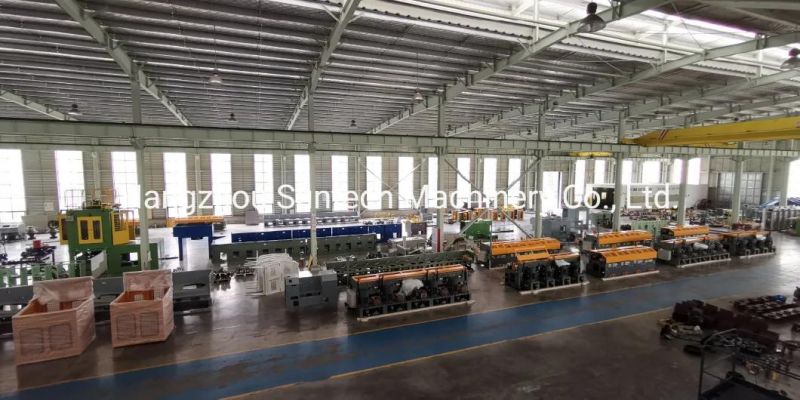

6. Our Workshop:
Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine

Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine




7. Shipment:
Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine

8.Our Team:
Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine


Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine
Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine
9. Clients List:
Best Quality Long Working Life New Type Lz12/560 Straight Line Wire Drawing Machine
