• Model NO.：GGLJ
• HS Code：8468800000
• Production Capacity：50sets,Month

Basic Info.

Model NO. GGLJ HS Code 8468800000 Production Capacity 50sets/Month

Product Description

GGLJ-600

• Maximum load capacity:2T;
• Pipe diameter:Φ60-Φ600mm;
• Turning angle:±45°;
• Overturning motor power:0.75Kw;
• Drive motor power:0.75Kw;
• Linear velocity:About 120-1200mm/min;
• Speed adjusting way: frequency conversion steeples speed adjusting.
• Elevating speed:300mm/min.

GGLJ-1000

• Maximum load capacity:3T;
• Pipe diameter:Φ160-Φ1000mm;
• Turning angle:±45°;
• Overturning motor power:1.1Kw;
• Drive motor power:1.1Kw;
• Linear speed:about 100-1000mm/min;
• Speed adjusting way: frequency conversion steeples speed adjusting.
• Elevating speed:430mm/min.

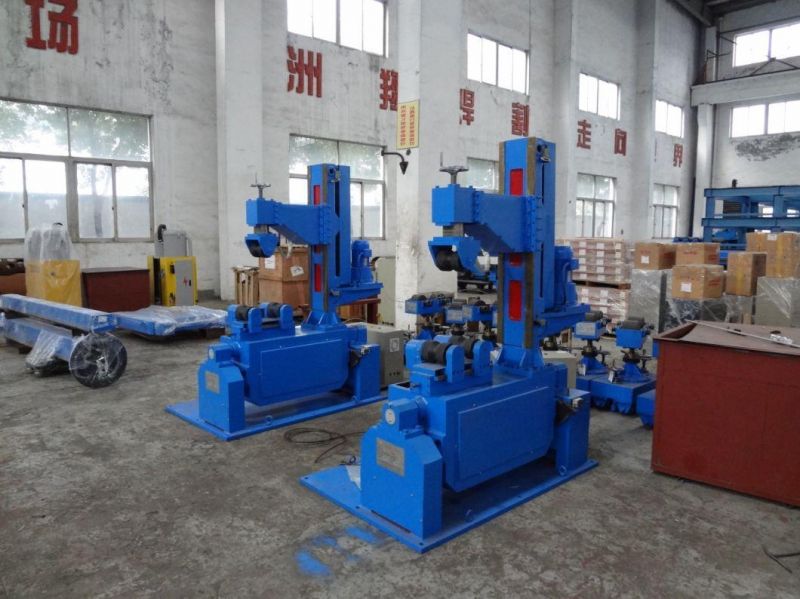

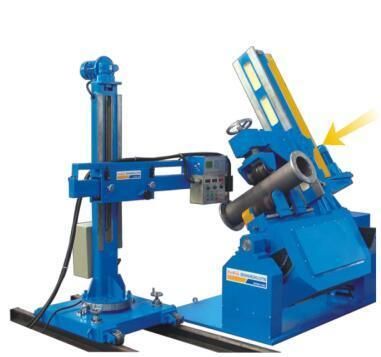

GGLJ pipe rotator is designed and produced specially according to characteristic of pipe welding. It adopts the characteristic from the similar pipe welding method. It is a professional pipe welding machine with fixing, positioning and overturning. It has high efficiency in running and operation comparing with the similar pipe welding machine.
The pressing rollers move up and down to make adjusting by driving of screw elevating system, power is supplied through motor-reducer-chain this process. Its controlling way is achieved through spot control; also it is with elevating position limit, which is safe and reliable in operation. And the pressing roller is with micro adjusting system, you can use manual adjusting to get right position, so as to protect the pipe with small thickness become deformed when pressing. The overturning system adopts gear driving, and power is output by motor with speed reducer of big reducing ratio which makes the turning comparatively safe and smoothing. Also there is a finger and an angle display at the end of overturning axis, which can show the overturning angle and the turning limit is ±45°. The turning roller system is drive through chain transmission; power is output by motor with speed reducer of big reducing ratio so as to fit for different diameter of the pipe. Roller adopt screw adjusting fore-and-after centering distance, it is also equipped with tension chain which is for adjusting the tension of the roller chain. Considering the demand of the pipe welding characteristic, the motor is frequency conversion speed adjusting, so as to control the turning speed of the roller. The roller material is 45# steel, with quenching and embossed surface. The other material of the machine is of Q235-A.

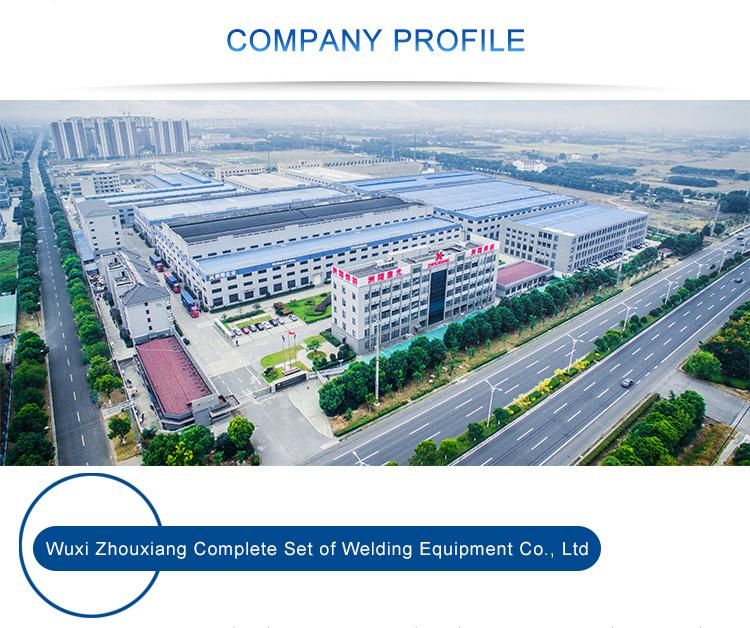

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.

We have high sincerity to do business with customers all over the world and establish good friendships.
