• Model NO.：12543
• Warranty：24 Months
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Diameter of Shaft：60mm
• Transport Package：Covered with Plastic Films
• Origin：China
• HS Code：84552210
• Production Capacity：500

1.SizeYX65-300-400-500 2.Dimension6500*1800*1500mm3.Weight6000KGS4.Motor Power7.5KW5.Hydraulic Power2.2KW6.Voltage380V/50HZ/3PH7.Forming Steps13 steps8.Forming Speed8-15m/min9.Effective Width300mm,400mm,500mm10.Material of Width470mm,575mm,680mm

11.

Min.Width of tapered roofing250mm

12.

Min.Length of tapered roofing1000mm13.Thickness for Aluminum0.5-1.0mm14.Thickness for Steel0.5-0.8mm15.Standing Height of Roofing65mm

16.

Thickness for common use

and testing machine

 0.6mm, 0.7mm

(material: PPGI, GI, Aluminum)



2)Main Accessories:

(1) Main Seamlock Roofing Forming Machine;

(2) Main uncoiler;

(3) Hydraulic System;

(4) PLC Computer Controlling System With Touch Screen;

(5) Hydraulic Forming Cutter;

(6) Tools;

(7) Operation Manual.

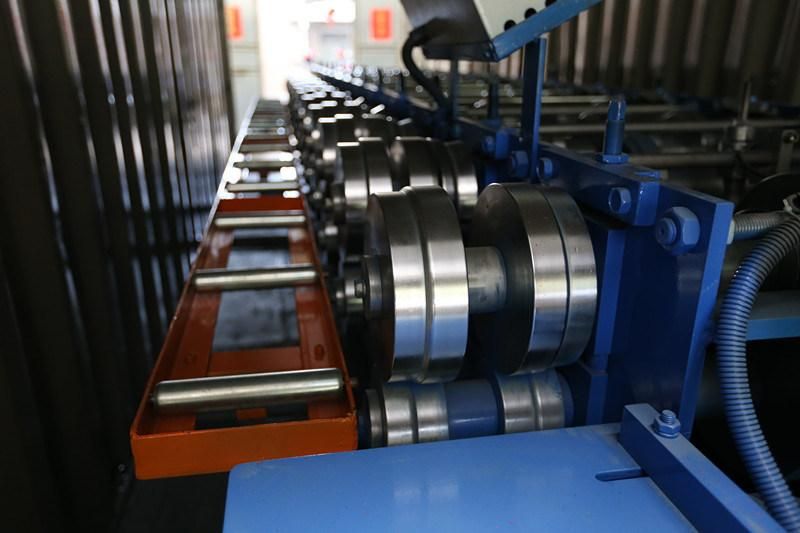

2. Pictures of standing seam roof forming machine

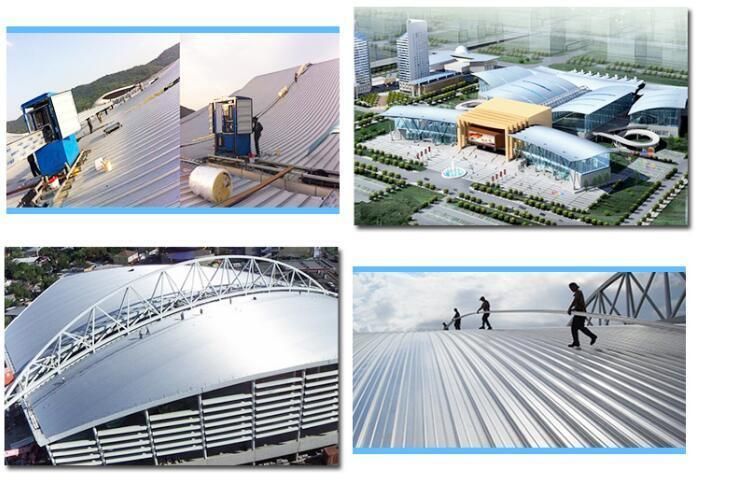

. Applications of Product
