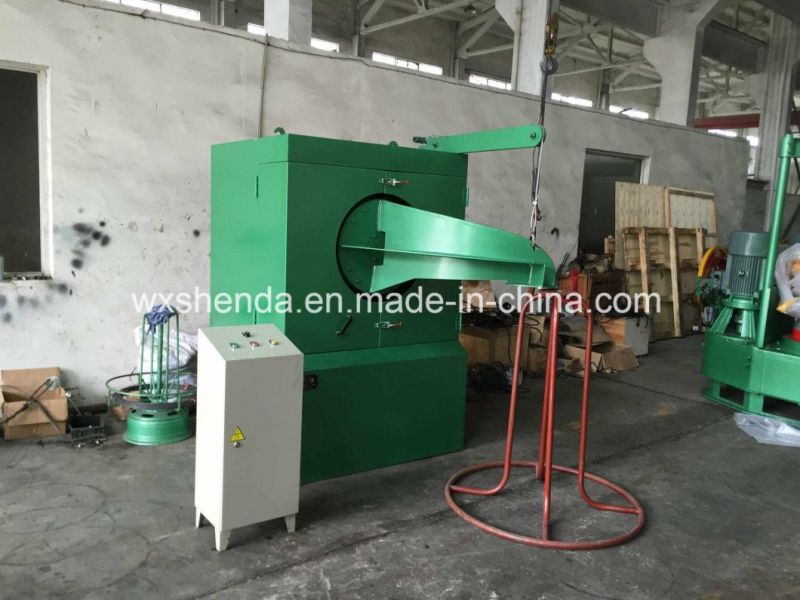

Steel Wire Drawing Machine Coil Wire Collecting Machine
Wuxi Shenda Nail Machinery Factory- Type：LW Pulley Type Metal Drawing Machine
- Usage：Wire, Rope Wire
- Metal Material：Steel
- Outlet Diameter：0.5-6.0mm
- Max.Inlet Wire Dia.：6.5mm
- Block Dia.：560mm
Base Info
- Model NO.：XBSJ-600
- Max. Number of Block：15
- Certification：REACH, ISO
- Condition：New
- Transport Package：Suitble for Shipping
- Specification：1800*1260*1900
- Trademark：Shenyida
- Origin：Wuxi China
- HS Code：84633000
- Production Capacity：1000pieces,Years
Description

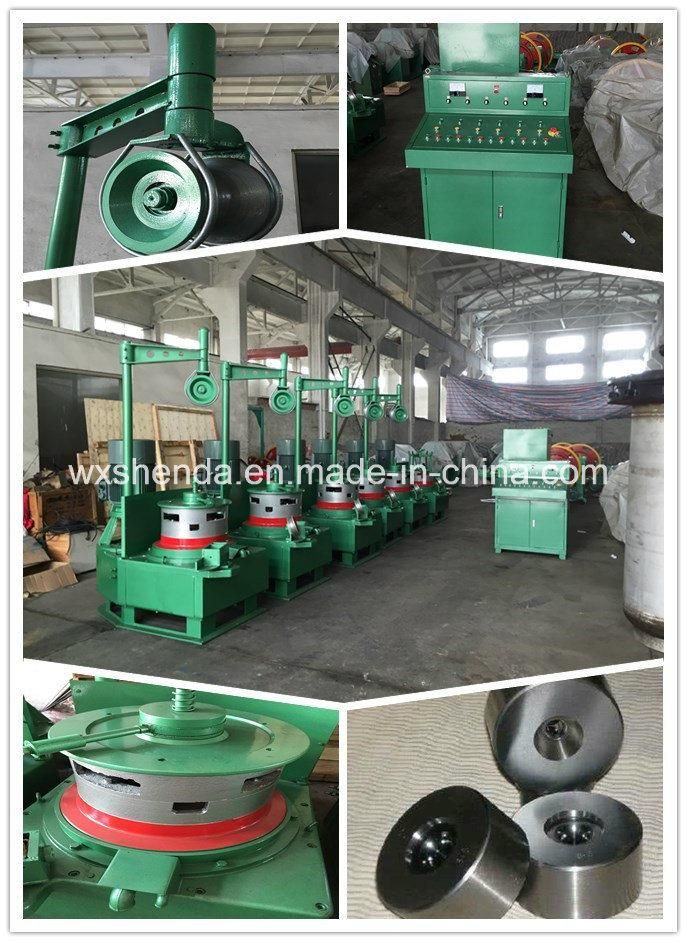

Wire drawing machine
The Model 560 Wire drawing machine consist of siz of paralle installed single wire reel.
It is used for draw metal wre such as steel,alluminium,copper and ect.And it is mostly suitle for use in
following manufacturer fields as screw,nail,conducting wire for electrical use,steel wire rope(steel cable) and
Spring to batch process the refine wires.
| Model | LW-1-6/560 | LW-1-7/450 | LW-1-6/350 |
| Material intensity | δb≥110kg/mm2 | 128kg/mm2 | δb≥140kg/mm2 |
| Max diam of material | 6.5mm | 3.4mm | 2.5mm |
| Min diam of material | 2mm | 1mm | 0.75mm |
| Diam of block | 1-6/560 | 1-7/450 | 1-6/350 |
| Max average condensation | 30% | 20% | 21% |
| Total condensation | 78-88.5% | 77.90% | 78% |
| Max.speed of block | 245m/min | 346.9m/min | 200m/min |
| Total power | 18.5-30kw | 7.5-11kw | 7.5-11kw |
| Weight | 2000kg | 1500kg | 1000kg |
| Overal size | 1700x1150 x1750mm | 1520x810 x1700mm | 1400x800 x1500mm |

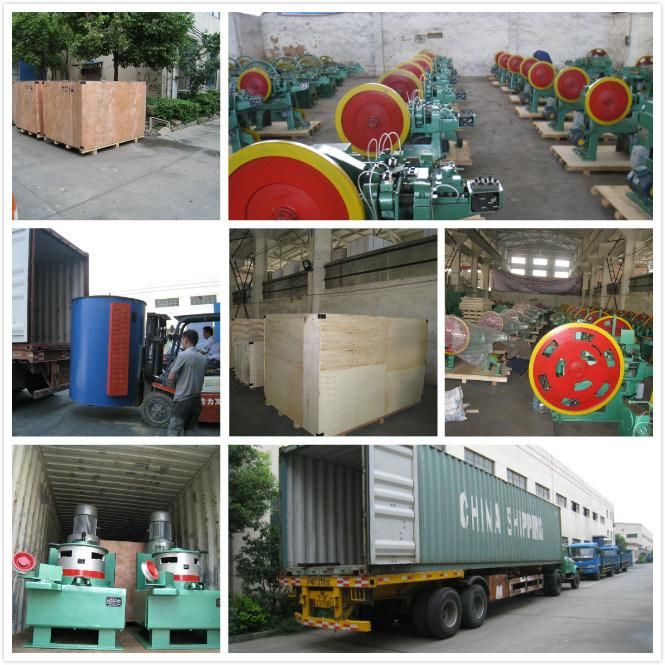

Machine Packing and delievry
Machine packed by plywood case or wraped by plastic film or customized
Contact us :
Ms Lina---Sales Manager
Wuxi shenda nail machinery factory
No.15,Huafa Road,Dongting Town ,Wuxi City,Jiangsu Province,China
