Forged Back up Roller for 4-Hi and 6-Hi Cold Rolling Mill for Steel Plate Production
Yantai Fangle Metallurgy Group Co., Ltd.- Condition：New
- Certification：CE, ISO9001
- Standard：DIN, ASTM, GB
- Customized：Customized
- Material：Alloy
- Application：Metal Processing Machinery Parts
Base Info
- Model NO.：as the drawing
- Application Range：General 4-Hi Mill and 6-Hi Mill
- Size Rang：Diameter From 200mm to 1000mm
- Hardness：60-80hsd
- Hardness Deviation：2-3hsd
- Diameter of Roll Barrel：350~1800mm
- Transport Package：Woodern Case
- Specification：Export package
- Trademark：FANGLE
- Origin：China
- Production Capacity：60000tons,Year
Description
Basic Info.
Model NO. as the drawing Application Range General 4-Hi Mill and 6-Hi Mill Size Rang Diameter From 200mm to 1000mm Hardness 60-80hsd Hardness Deviation 2-3hsd Diameter of Roll Barrel 350~1800mm Transport Package Woodern Case Specification Export package Trademark FANGLE Origin China Production Capacity 60000tons/YearProduct Description
Description
Forged steel back-up roll is mainly used in 4-Hi mill and 6-Hi mill. The diameter of roll barrel is 350~1800mm. The material of back-up roll includes 60CrMo, 9Cr2Mo, 86CrMoV7, 70Cr3Mo, 5Cr5NiMoV etc.
| Name | Type of material | Hardness | Depth of hardness | Hardness deviation |
| Back-up roll | 2%Cr,3%Cr,4%Cr,5%Cr | 60~80HSD | 20~100mm | 2-3HSD |

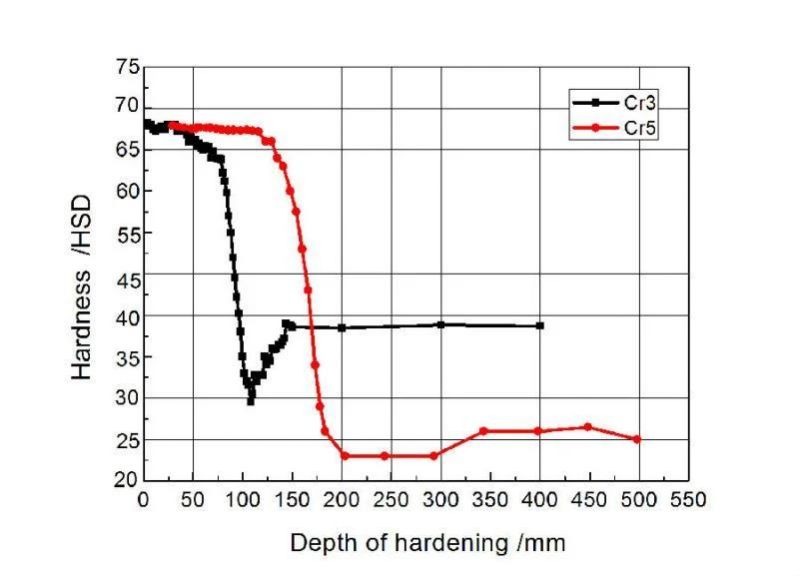

Hardness Curve
Main Equipment
90 ton DC Electrical Arc Furnace
40 ton Ladle Furnace
40 ton Vacuum Degas Furnace
26.5 ton Electro-slag Furnace

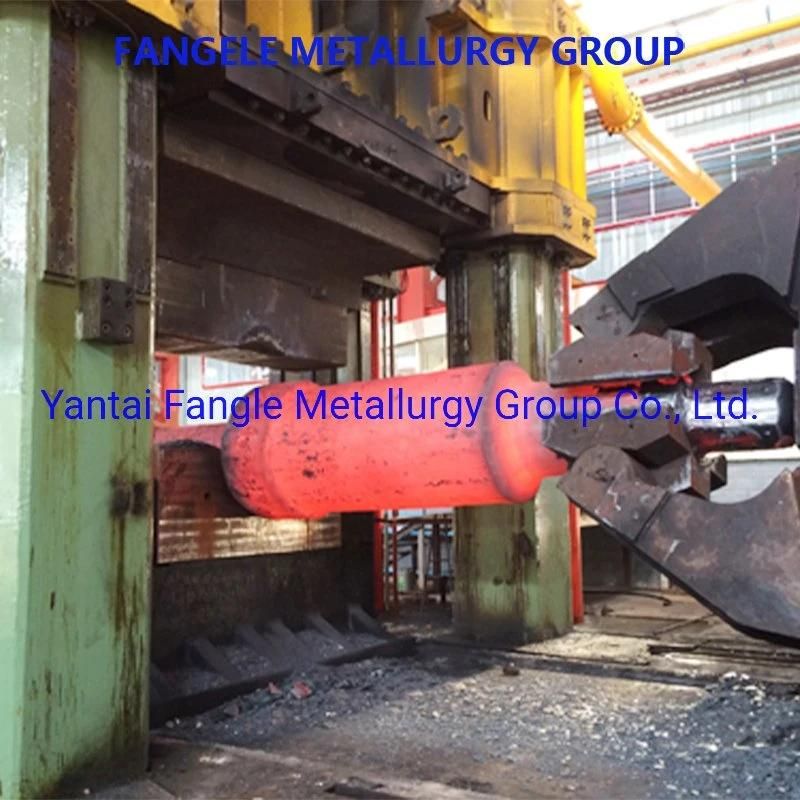

16MN Forging Machine
3000 ton Forging Machine
CNC Lathe Machine
CNC Milling Machine
CNC Grinding Machine
Double Frequency Quenching Machine
Industrial Frequency Quenching Machine
Large Tempering Furnace

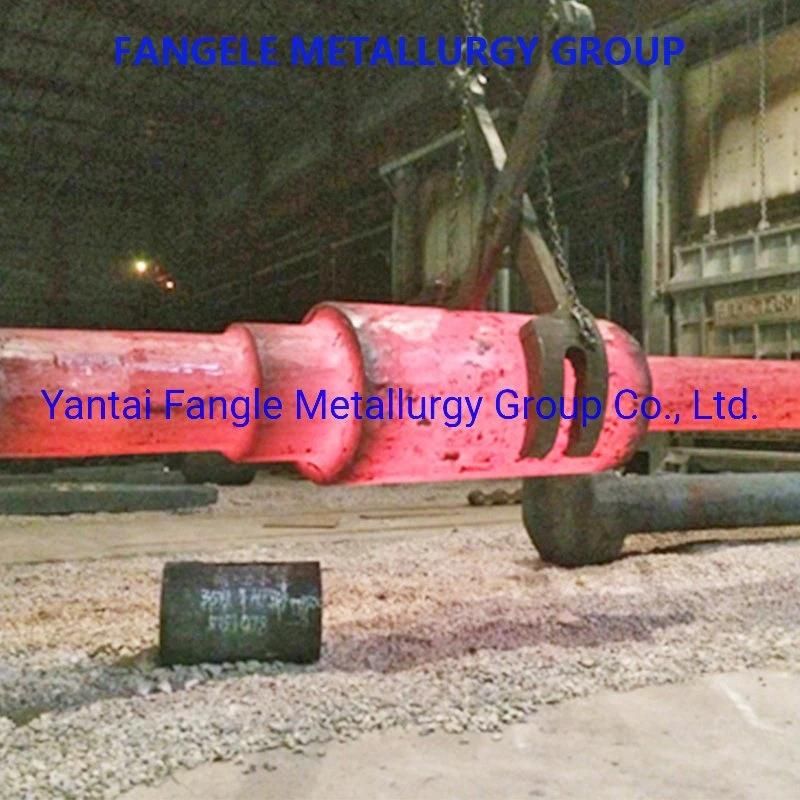

Products show:
Customer Visit
