• Model NO.：CS-355V
• Product Name：Metal Circular Saw Cutting Machine
• Type：Semi-Auto
• Power：Hydraulic
• Cutting Capacity：Od120mm
• Material：Carbon Steel, Mild Steel, Stainless Steel
• Cut：Tube, Bar, Profile
• Extra Function：Automatic Loader
• Certificates：ISO9001, Ce
• Transport Package：Wooden Case
• Trademark：Sanco
• Origin：China
• HS Code：846150
• Production Capacity：5000,Year

Basic Info.

Model NO. CS-355V Product Name Metal Circular Saw Cutting Machine Type Semi-Auto Power Hydraulic Cutting Capacity Od120mm Material Carbon Steel, Mild Steel, Stainless Steel Cut Tube, Bar, Profile Extra Function Automatic Loader Certificates ISO9001, Ce Transport Package Wooden Case Trademark Sanco Origin China HS Code 846150 Production Capacity 5000/Year

Product Description

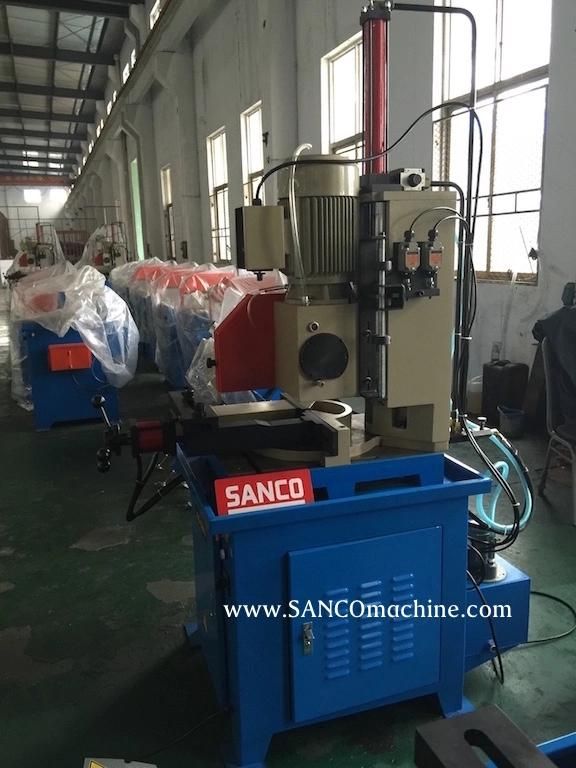

Metal Circular Saw Machine





STANDARD

                                                                          CS-355V
                                                                          V    Hydraulic
                                                                          Max. Φ350 mm saw blade

                                                                          Max cutting                     Round tube:Φ130 mm
                                                                                                                  Square tube:130×130 mm
                                                                                                                  Rectangle tube:150×100 mm
                                                                          Cut angle                         0° - 90°
                                                                          Max Vice open distance  140 mm
                                                                          Applied saw blade HHS  Φ250 mm - Φ350 mm, Standard Φ350 mm
                                                                          Main motor power          2.4 / 3.0 kw
                                                                          Cooler pump power        90 W
                                                                          Machine size                    1320×1410×1930 mm
                                                                          Machine Weight              610 kg




                                                                          Pipe material: mild steel, stainless steel ...
                                                                          Round / square / rectangle / profile ... pipes and bars
                                                                          CE, ISO90001 marked

Company Introduction:




  Zhangjiagang SANCO Machinery Co., Ltd



Our company video link:



https://sancogroup.en.made-in-china.com



SANCO(Taiwan and China mainland)Machinery Co., Ltd. was established in 1984, and have cooperation with Taiwan bender company since 1989, specialized in manufacturing Pipe Bending Machine, Metal Circular Saw Machine, Pipe End Forming Machine, Polishing Machine, Chamfering Machine and so on. In 1984, SANCO and "Shanghai Aircraft Design and Research Institute" joint the production of hydraulic pipe bending machine. And in 1984, "Shanghai Aircraft Manufacturing Co., Ltd." assembled 25 airplanes of American model MD82. Chinese government required SANCO mapping the prototype of Italian bending machine, and SANCO manufacturing the bending machine to produce airplane related accessories.

With 176 workers, 11 professional and technical engineers. SANCO company occupies 20,000 square meters, construction area of 15,000 square meters.

The three-dimensional CNC bending machine developed by SANCO is advanced than other Chinese factories. SANCO is the leader of drafting the "Chinese Standard of CNC Pipe Bending Machine" (GB / T28763-2012), released in November 2012, and implemented in May 2013. And SANCO is also the leader of "Chinese Standard of Pipe Bending Machine Safety" (GB28760-2012), released in November 2012, and implemented in October 2013.

All machines marked ISO 9001 and CE. SANCO machines exported to the United States, UK, France, Russia, Australia, India, Brazil, Poland, Canada, South Africa, Mexico, UAE, Saudi Arabia, and so on 58 countries.

NOW, AND FOREVER MORE ...    SANCO DO THE BEST OR NOTHING.

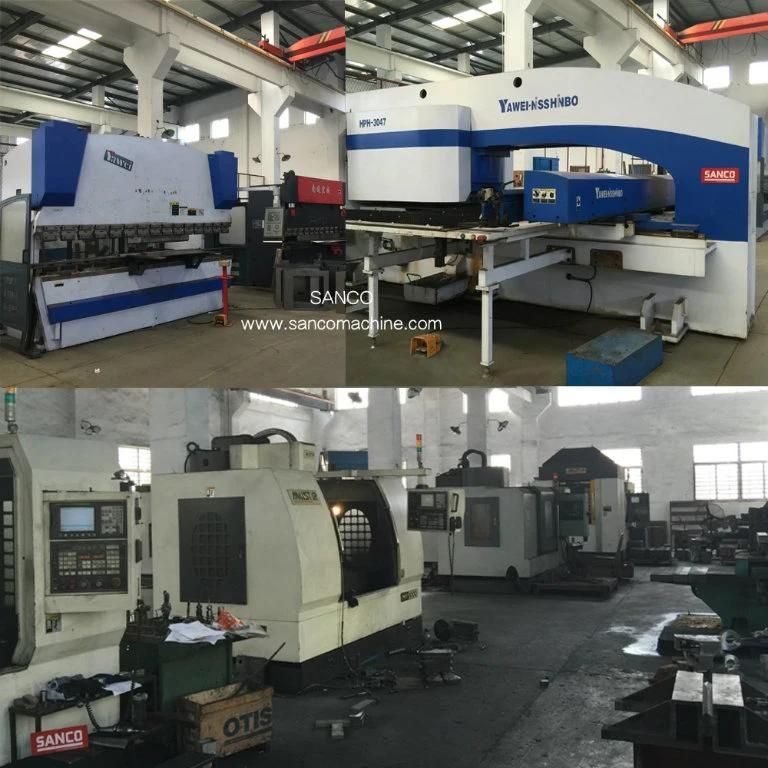

Company Photos:

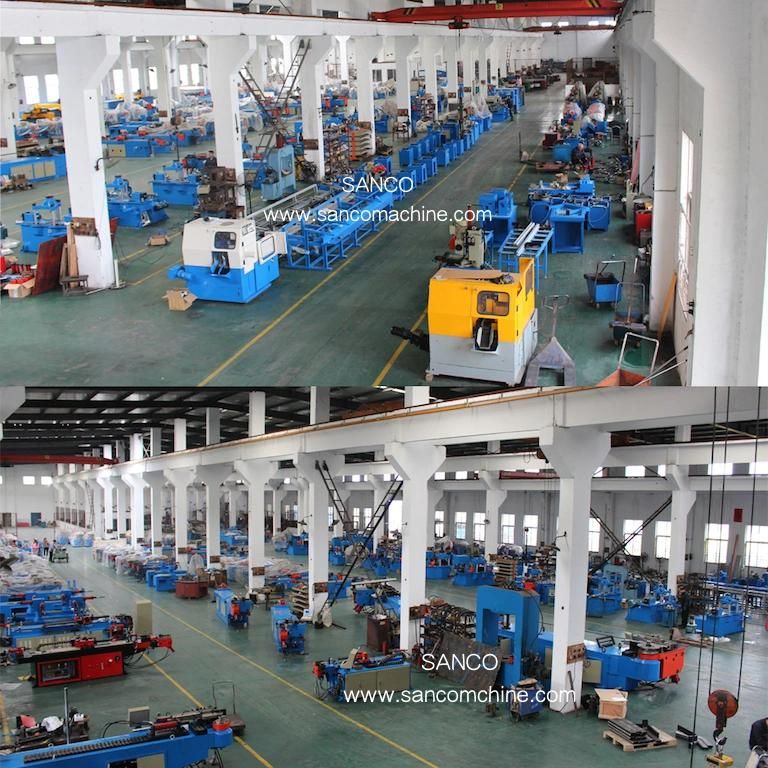

Aseembling workshops:

Finishing workshops:






Certificates:




Contacts:

SANCO MACHINERY CO., LTD Since 1984
Add: 17#, Economic Development Zone, Nanfeng Town, Zhangjiagang City, China.
Tel / Fax: +86-0512-58900248
Cell phone : +86-158-9547-5880

sancogroup.en.made-in-china.com
