• Model NO.：COLO-1517
• Condition：New
• Item：Powder Coating Spray Booth for Auto Parts
• Filter Count：2 PCS
• Application：Hardware Spraying Equipment
• Working Size：150kg
• Name：Powder Coating Spray Booth for Auto Parts
• Operational Method：Manual
• Packaging：Wood Case
• Product：Powder Coating Spray Booth for Auto Parts
• Delivery：15day
• Transport Package：Wooden Case
• Specification：CE ISO
• Trademark：COLO
• Origin：China
• HS Code：8417809090
• Production Capacity：10000PCS,Years

Basic Info.

Model NO. COLO-1517 Condition New Item Powder Coating Spray Booth for Auto Parts Filter Count 2 PCS Application Hardware Spraying Equipment Working Size 150kg Name Powder Coating Spray Booth for Auto Parts Operational Method Manual Packaging Wood Case Product Powder Coating Spray Booth for Auto Parts Delivery 15day Transport Package Wooden Case Specification CE ISO Trademark COLO Origin China HS Code 8417809090 Production Capacity 10000PCS/Years

Product Description

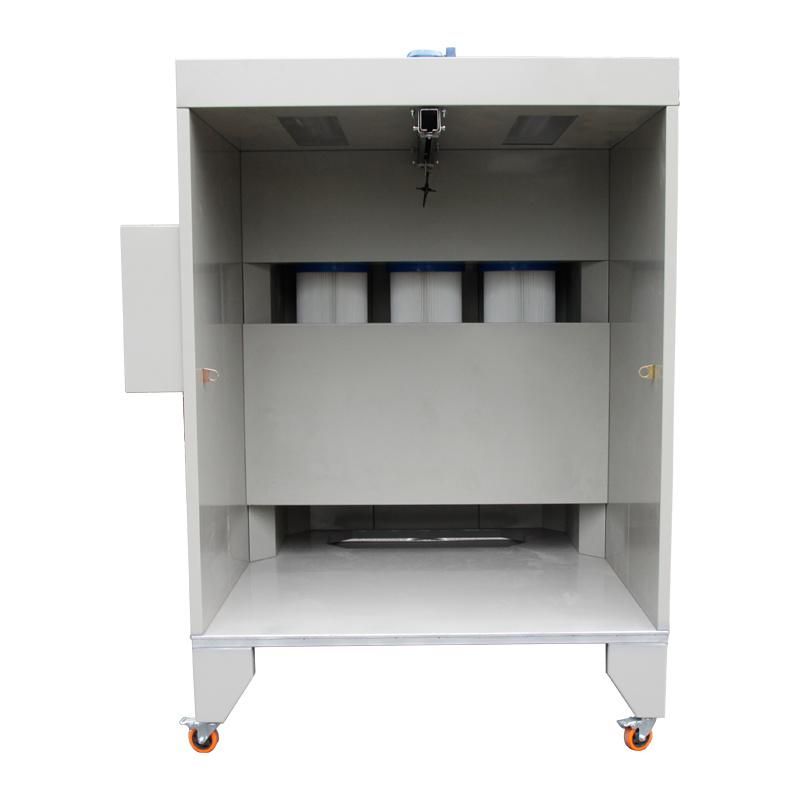

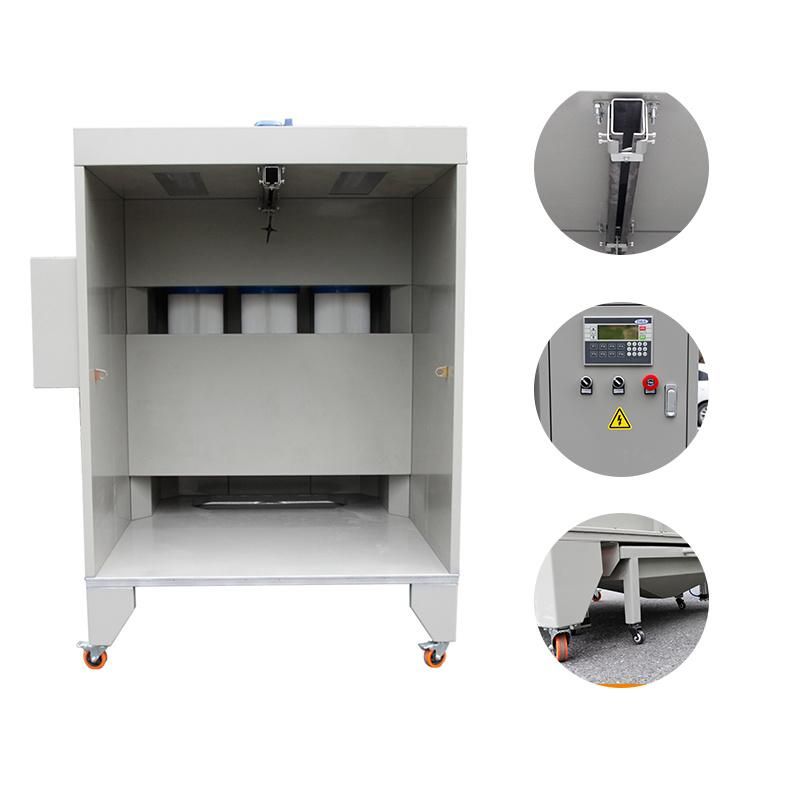

COLO-S-1517 Powder Coating Spray Booth for Auto Parts

Description
COLO-1517 powder coating booth is an hot selling model, features inexpensive, dependable and durable, an effective usage of the coating material and the compliance with environment standards contribute to the high performance. This powder coating spray booth built with advanced design and technology to maximize the powder recovery, save cost.
Workingsize: Width1500*Depth1000*Height1700mm.




Specifications of COLO-S-1517 Powder Coating Spray Booth

Type	Closed
Operator dimensions	W1500*D1000*H1700mm
Overall dimensions	W1640*D2070*H2180mm
Weight	150kg
Power supply	Electric
Nominal power	2.2kw
Voltage	380V
Frequency	50-60Hz
Filters	Polyester
Filters count	2 (325*900)
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Air consumption	4000m3/h
Warranty	12 months

Working Principle of Powder Coating Spray Booth
The Fan motor will exhaust the air flow from the booth chamber, and the oversprayed powder will be attracted in the cartridge filters by the air, and powders will be shocked down from the filters by a pulse.

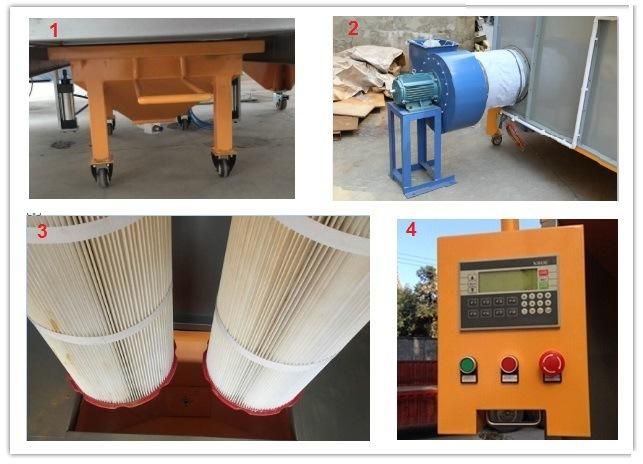

1. Powder Tank, installed at the bottom of the booth, carry oversprayed powders from filter,
can be removed out when take the powders.
2. Fan motor, 2.2Kw, 1 set.
3. Cartridge Filters: we use filters D325xH900mm in the COLO-S-1517 Powder Coating Booth. Japanese imported materials.
4. PLC control: easy control system, convenient for operation
