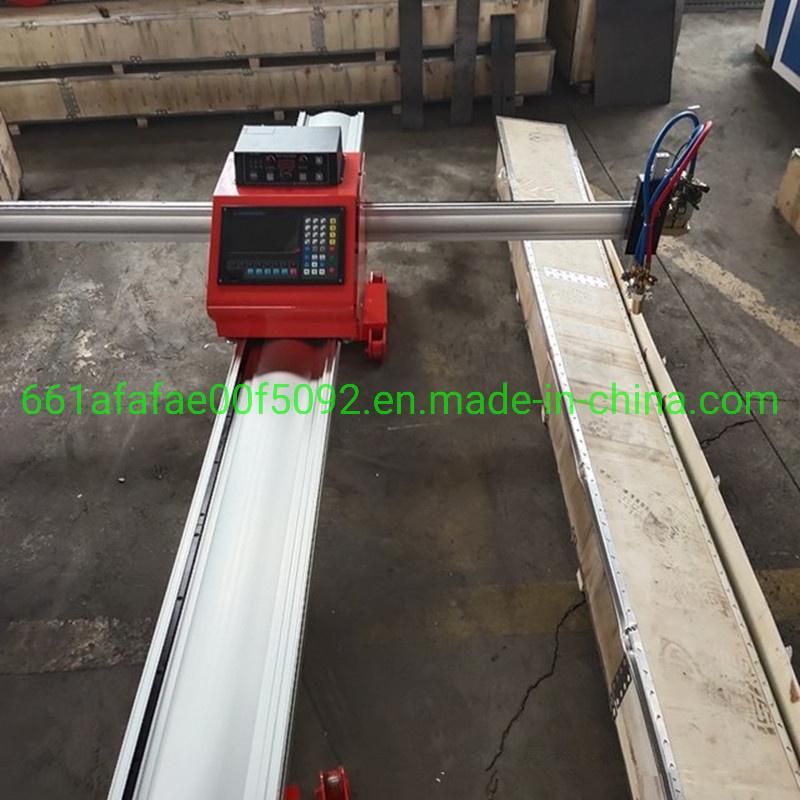

Intersection Automatic Portable CNC Plasma Gas Cutting Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Video Instruction
- Warranty：13 Months
- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
Base Info
- Model NO.：CNCP
- Power Source：Electric
- Cutting Mode：Plasma Cutting
- Model：CNC-1560
- Cutting Gas：Oxyacetylene Oxygen,Oxyfuel Propane Acetylene
- Plasma Cutter：Dual Drive Portable Plasma Cutter
- Optional Plasma：Hypertherm Power,China Plasma
- Nest Software：Fastcam Startcam
- Power：220V ,380V
- Plasma Model：Lgk 63A 80A 100A 120A 200A 300A 400A
- Control System：F2100b
- Effective Cutting：1500*6000 mm
- Deliver：3-7days
- Other Model：1630 1525 1215 2060 3060 2430
- Application：Industrial Metal Plasma Cut
- Weight：100 , 200 Kg
- Motor Type：Step Motor
- Torch Height Control：Optional
- Transport Package：Standard Package
- Specification：Flame Acetylene Gas or Liquefied CNC cutter
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8456909000
- Production Capacity：1000 PCS,Year
Description
Number of linkage axesX X horizontal axis Pipe rotation axis Y Y longitudinal axis The torch moves the axis horizontally along the pipe axis Z Z torch lift shaft Torch lift shaft

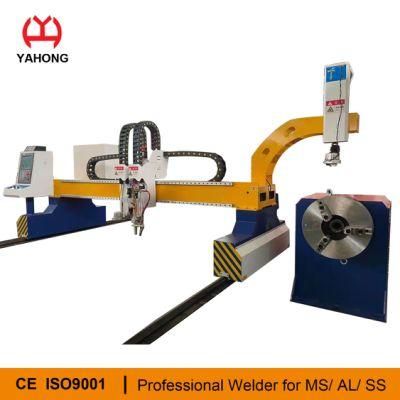

The intersecting line tube plate integrated cutting machine adopts portable plasma cutting structure:
The main engine is arranged in parallel with the pipe
A mobile trolley device is installed on the bracket
Precision screw lifter
Fixed holding tool for flame or plasma torches
Steel pipe clamping adopts chuck structure
Use the screw drive to support the steel pipe
The CNC plasma cutting machine can be moved and the steel pipe can be raised and lowered.
Features:
1. The drive motor of the CNC plasma cutting machine for pipe and plate adopts 1000W imported servo motor, the whole machine runs more smoothly and has higher precision
2. The independent plasma arc voltage automatic height adjustment device makes the lifting control of the cutting torch faster and more accurate
3. The plasma cutting frame of the intersecting line of the tube and plate is welded with 6mm thick channel steel, which has a larger bearing capacity and more stable operation.
4. The guide rail adopts 24KG fine grinding guide rail, which can carry larger and more
5. Both the roller frame and the support frame are driven by precision screw rods, which can be easily lifted
6. The integrated workbench makes the overall operation rigidity of the intersecting line tube sheet plasma cutting integrated machine stronger, the cutting accuracy is better, and it is convenient for the installation and debugging of the plasma portable cutting machine.
Equipment accuracy:
It meets the national standard of intersecting line cutting steel pipe, and the positioning accuracy of workpiece length and size is 0.2mm/2000mm.
The busbar positioning accuracy is <=±0.5mm
Main parts details:
1. CNC system 1 set
2. Bracket chuck 1 set
3. Machine head assembly 1 set
4. 1 set of brackets on the machine head
5. 1 set of bracket under the machine head
6. Guide rail 3m (bilateral) can be lengthened according to customer requirements
7. Plasma power supply can be selected according to customer requirements
