• Model NO.：WX-OPT2f
• Output Voltage：90kv
• Powder Output：Max.550g,Min.
• Transport Package：Box
• Specification：standard
• Trademark：non
• Origin：China
• HS Code：842490900
• Production Capacity：5000PCS , Year

Basic Info.

Model NO. WX-OPT2f Output Voltage 90kv Powder Output Max.550g/Min. Transport Package Box Specification standard Trademark non Origin China HS Code 842490900 Production Capacity 5000PCS / Year

Product Description

Jiangsu Xintu Coating Machinery Co.ltd. is one of the leading manufacturer of powder coating equipment and flocking machines and receplacement parts for all famous brand guns.

1.powder coating equipment include: powder spray guns, high voltage cascade(waterfall), circuit board systems, powder coating line, powder curing ovens and powder spray booths, automatic powder coating reciprocator system.
2. Flocking machine:  3D box flocking machine,electrostatic flocking spray machine, flocking printing machine, automatic clothing flocking machine,flocking line. ..
3.Spare parts for powder guns : High voltage cascade, circuit board system, powder gun nozzles, powder injector /pump, venturi tube, nozzle extensions, gun casing, fluidizing plate.gun cap nut...

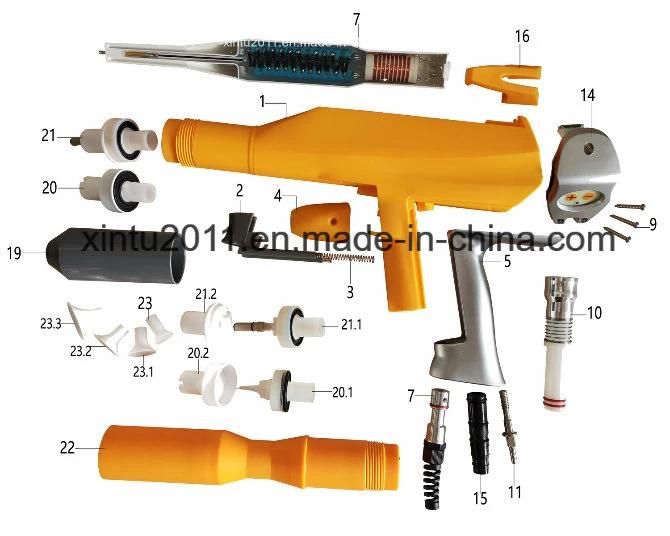

ITEM NO.	PARTS NO.	Description
	1002 100	Opti manual powder gun - complete      incl. gun cable - 6 m,flat jet nozzle
1	1001 155	Gun body
2	1001 341	Trigger  (incl. pos. 2 and 3)
3	1001 487	Compression spring
4	1000 801	Trigger cover
5	1000 806	Grasp handle
7	1001 528	Gun cable - L=6 m, complete
8	1000 809	Cascade - complete, negative polarity
9	1000 843	PT screw
10	1001 339	Powder tube - complete with clip ring and spring
11	1000 804	Rinsing air connection
14	1000 617	Back cover - complete
15	1001 340	Hose connection - complete, for internal hose Ø 11-12 mm
16	1000 877	Hook
19	1000 948	Threaded sleeve - complete
20	1000 047	Flat jet nozzle - complete
20.1	1000 055	Electrode holder
20.2	1000 049	Flat jet nozzle
21	382 922	Round nozzle complete
21.1	382 914	Electrode holder R -
21.2	378 518	Round nozzle
22	378 852#	Extension - 150 mm
22.1	378 860#	Extension - 300 mm
23	331 341	deflector 16mm
23.1	331 338	deflector 20mm
23.2	331 333	deflector 24mm
23.3	331 325	deflector 32mm

if you are interested in any parts of them, please don't hesitate to contact us !

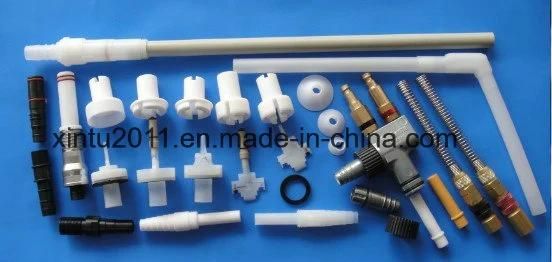

 We supply a varity of spare parts for electrostatic powder coating guns, such as Flat nozzle, electrode holder ,round nozzles, gun deflector, powder pump, powder gun cascade, board system Price is low but high quality
