• Model NO.：Comflex
• Working Speed：960PCS,8hrs
• Power：3kw
• Lead Time：2 Months After Getting Your Advance Payment
• Certificate：CE, ISO, CSA etc...
• Transport Package：Standard Sea Package for Flexible Metallic Hose Ma
• Specification：SGS
• Trademark：HLT
• Origin：Jiangsu, Wuxi
• HS Code：844790900
• Production Capacity：15 Sets Per Year

Basic Info.

Model NO. Comflex Working Speed 960PCS/8hrs Power 3kw Lead Time 2 Months After Getting Your Advance Payment Certificate CE, ISO, CSA etc... Transport Package Standard Sea Package for Flexible Metallic Hose Ma Specification SGS Trademark HLT Origin Jiangsu, Wuxi HS Code 844790900 Production Capacity 15 Sets Per Year

Product Description

High Quality Complete Auto Exhaust Pipe Connectors Production Machine~

 Product Details:

It is installed in the exhaust pipe between the engine exhaust branch pipe and the muffler to make the entire exhaust system flexibly connected, thereby damping vibration and noise, facilitating installation and prolonging the life of the exhaust muffler system. It is mainly used in light vehicles, mini-cars and passenger cars. Its structure is a double-layer corrugated tube covered with steel wire mesh sleeves, and the two ends of the straight side section are jacketed with snap rings. In order to achieve a better noise reduction effect, the bellows can be equipped with expansion and contraction. Section or net set. Material: The main material is stainless steel SUS304, the material of the ferrule and the pipe can be stainless steel or aluminized steel.

Machine List:

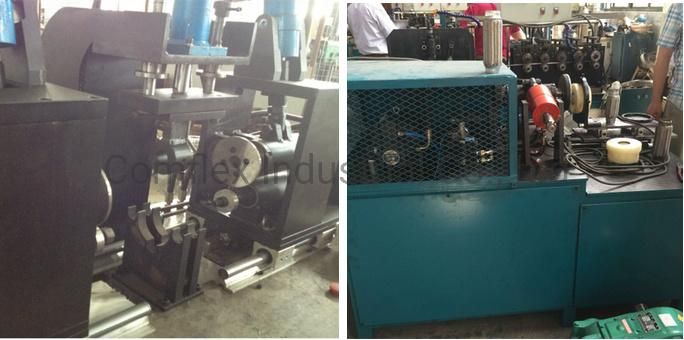

1. Automobile exhaust flexible pipe forming machine

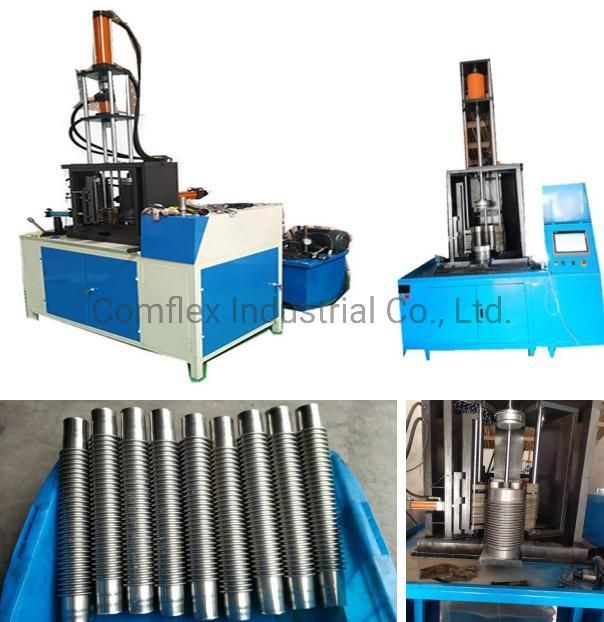

A. Automatic vertical bellow forming machine(One stroke one piece)

* Size range: 32-100mm
* Thickness range: 0.3mm-1mm
* Working principle: Hydraulic



B. YKCX-65D automatic bellow forming machine
 * Inner diameter of the bellow: 16-60mm
* Thickness of the bellow: customized acceptable
* Toolings/different size changing time is about 15 minutes
* Capacity: 10 seconds for one convolution
* Length of tube before forming: L≤1000mm.
* Use feeding cylinder

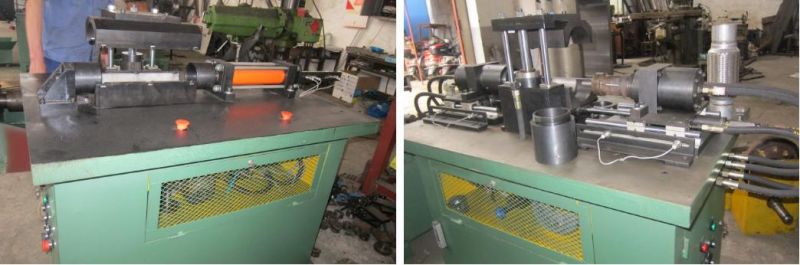

2. Automobile exhaust bellow assembly machine

A. Bellow compressing machine                                                                     B. Cap crimping machine



C. Bellow end trimming machine(single head or double head)

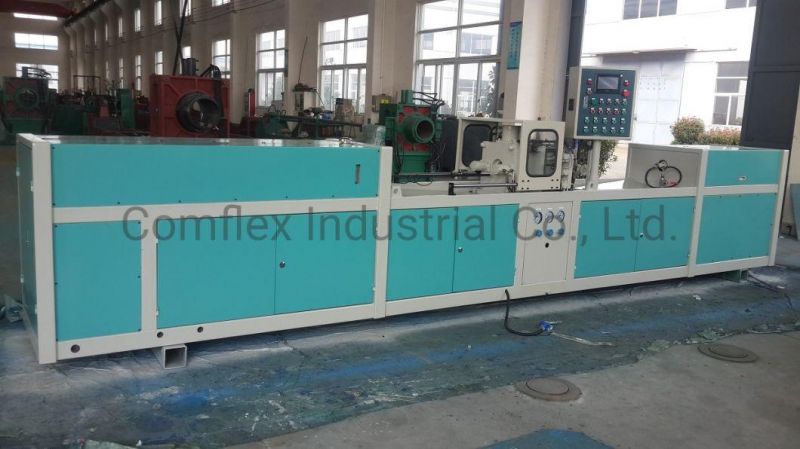

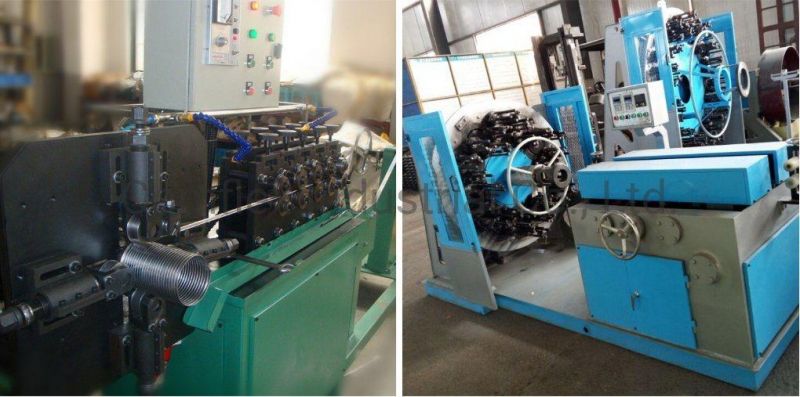

D. Interlock hose making machine                                                                 E. Wire braiding machine


Machine Package And Delivery:

Company Profile:
We are a professional manufacturer of all types of metal flexible metal hose making machines and machinery with more than 35 years of history, such as corrugated metal hose making machine, interlock hose making machine etc... These hoses are widely used in energy, petroleum, petrochemical, machinery, refrigeration, construction, hydropower, nuclear power, cement, paper, medicine, transportation, mining, metallurgy, urban central heating, shipbuilding, city gas, natural gas pipeline construction, Central air conditioning, aerospace and other industries. Our machines have exported to many countries such as Russia, Ukraine, USA, Australia, New Zealand, Poland, etc..

FAQ
Q: Why choose us for auto exhaust bellow forming and assembly line?
A: We are most professional manufacturer of hose making machine with more than 30 years of experience.
Q: What size can you make?
A: All the sizes from DN32 up to DN100
Q: How many different types of machine can you make?
A: Different types of bellow forming machines
B: Bellow compressing machine
C: Bellow end trimming machine
D. Cap crimping machine
E. Interlock hose making machines
F. Wire braiding machines etc...

We need to know following information to quote you correct machineries:
1. Size range you want to make
2. Technical drawing of the bellow, so that we can check the convolution details.
