Vehicle Wheel Rim Production Line (WRF-15)

BOBO Machine Co., Ltd.
  • Applicaiton：Steel Wheel Rim Making
  • Transport Package：Wooden Package
  • Specification：GB
  • Trademark：BOBO
  • Origin：China

Base Info

  • Model NO.：WRF-15
  • HS Code：8455229090
  • Production Capacity：2 Sets, Year

Description

Basic Info.

Model NO. WRF-15 HS Code 8455229090 Production Capacity 2 Sets/ Year

Product Description

1- Flash butt welder
2- Roll former
3- Roll bender
4- Trimming machine
5- Valve hole punching machine
Wheel making machine--- wheel rim roll forming machine--- tubeless wheel roll former (cold forming)

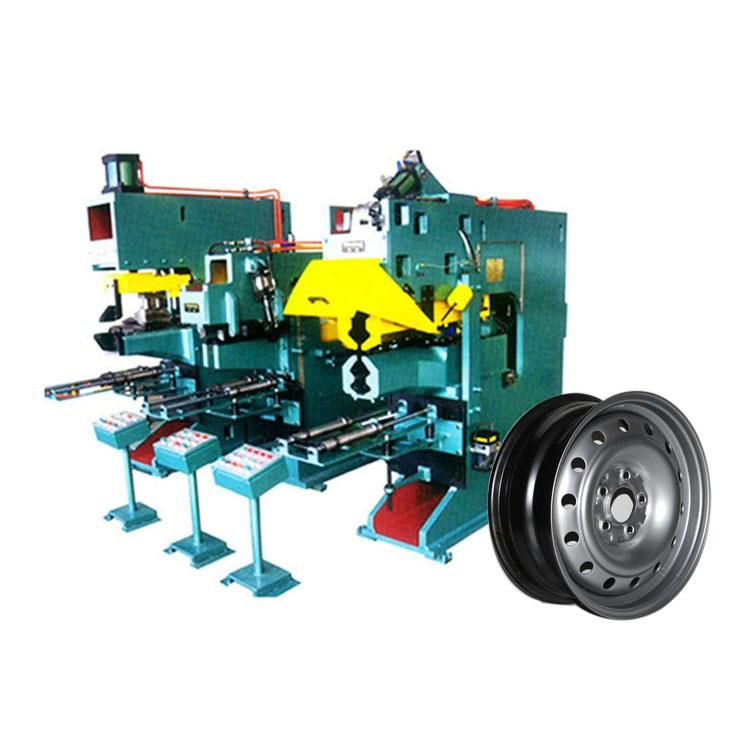

Vehicle Wheel Rim Production Line (WRF-15)
Main technical data
1. Bead seat diameter: 17.5"~ 38"
2. Bead seat width: 3"~ 16"( Max. Mould-fixed width 550mm)
3. Rim thickness: 3-7 ( when the width is over 12", the thickness no more than 6mm)
4. Productivity: 1~2 piece/min
(when thickness more than 6mm, or diameter is more than 25", the productivity will drop accordingly. )
5. Power: 140K w
6. Drive: Hydraulic driven
7. Equipped with double spindle synchronous device
8. With Cooling system, Lubrication system
