Chuck Type Pipe Plasma Cutting Machine

Nanjing Auto Electric Co., Ltd.
  • Specification：SGS, ISO9001
  • Trademark：NAEC
  • Origin：China

Base Info

    Description

    Production Line Type:Fixed in workshopSuit for Pipe Diameter:2 to 60inch
    Several models available (16" type, 24"type, 32" type, 48"type)    Suit for Pipe Material:CS/SS/ALSSuit for Pipe Wall Thickness:Up to 70mmSuit for Pipe Length:12MCutting & Beveling Speed:No more than 5 mins to finish 2 bevelsCutting Precision: 1mmCutting Self Measuring FunctionIncluded Conveying Speed:2-20 m/min
    Chuck Type Pipe Plasma Cutting Machine

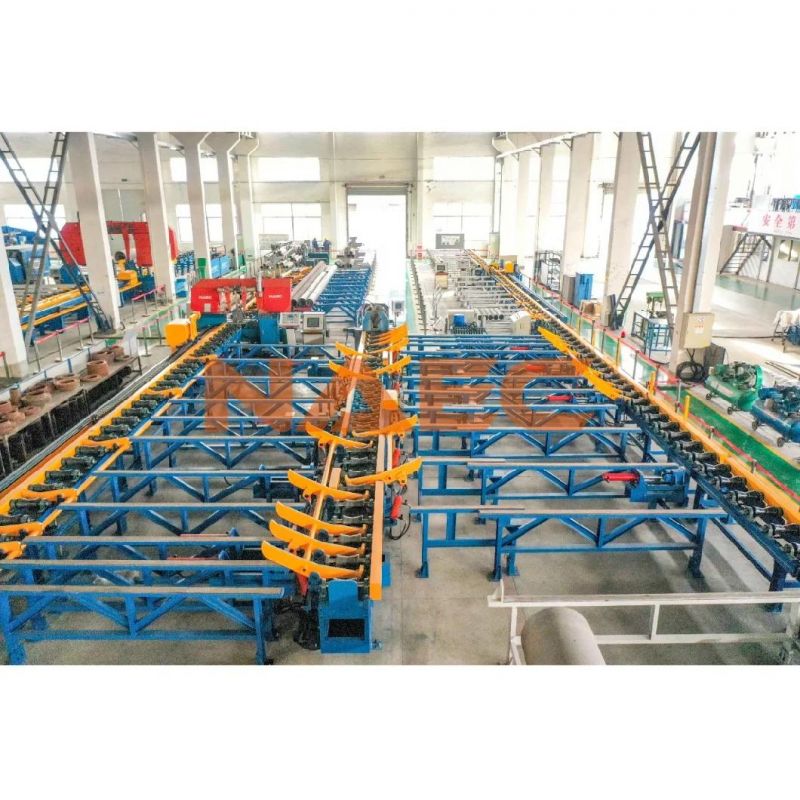

    Pipe Spool Fabrication Machines

    1Chuck Type Pipe Plasma Cutting Machine

    Pipe Cutting& Beveling All-in-one Machine

    >Suitable for pipes not larger than 8",max.thickness:20mm

    >Cutting efficiency:100times/8hrs

    >PLC control with automatic measuring to guarantee the same processing cycle

    >Widely used for small bore C.S/S.S production lines

    2Chuck Type Pipe Plasma Cutting Machine

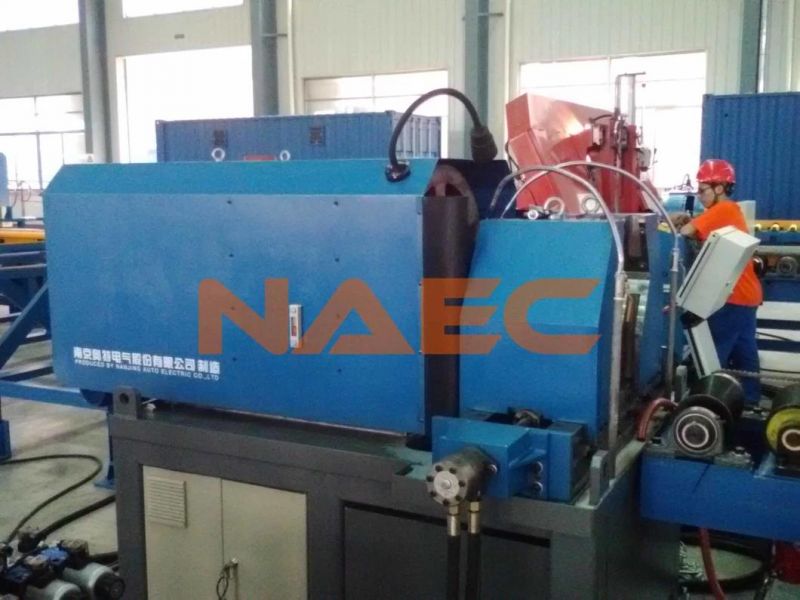

    High Speed Band-saw Cutting Machine

    >Three models available(16"type,24"type",48"type)

    >PLC system control;self-measuring function with precision:±0.5mm

    >Using hydraulic self-centering chuck

    >It only takes 6 minutes to cut a 24" pipe of 25mm thickness

    >Widely used for C.S/S.S production lines.

    3Chuck Type Pipe Plasma Cutting Machine

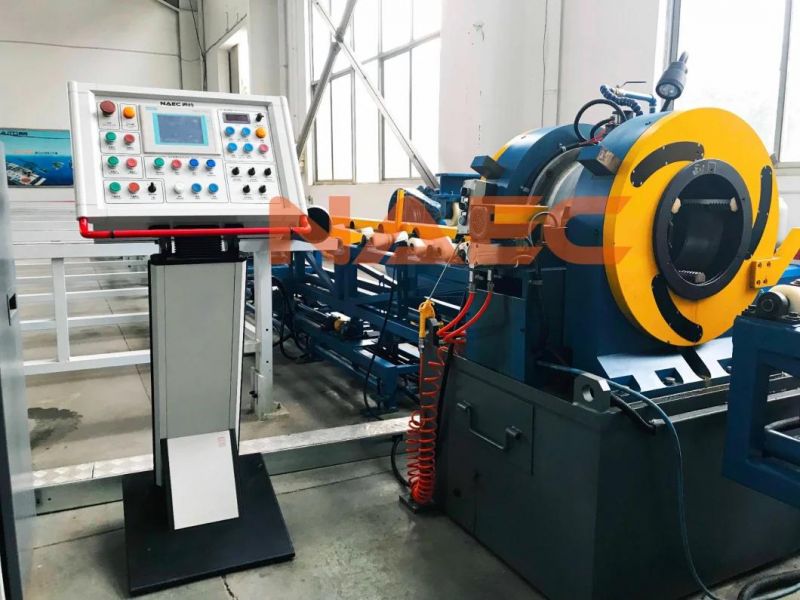

    High Speed CNC Pipe End Beveling Machine

    >Automatic self-centering chuck

    >Single V,double V,U type bevel

    >Can be matched with pipe end turning devic

    >High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)

    >Several models available:16",24",32",48"

    4Chuck Type Pipe Plasma Cutting Machine

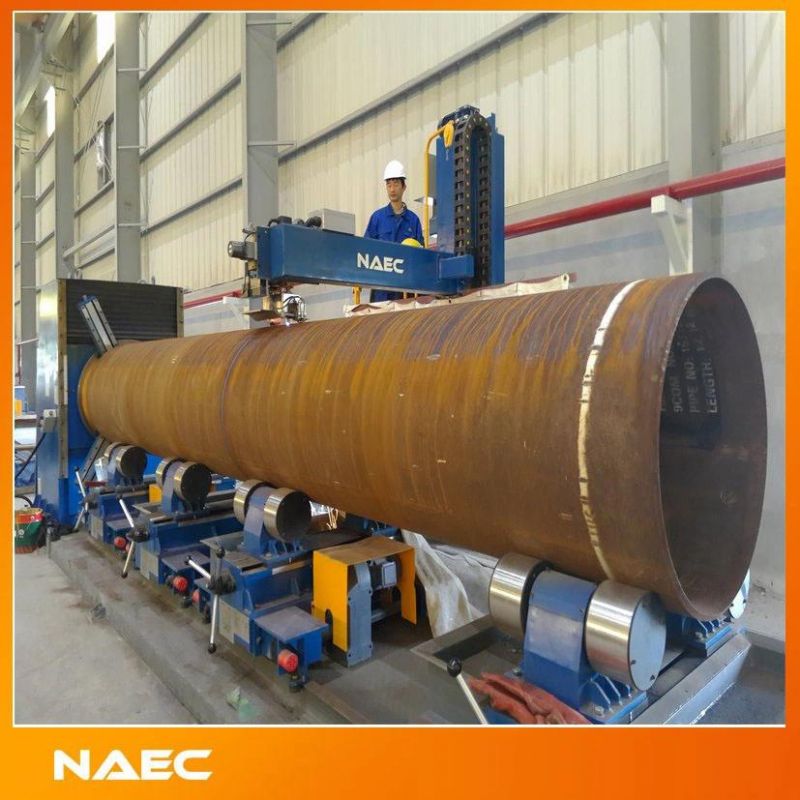

    Two / Multi- Axis CNC Flame/Plasma Cutting Machine
    >High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.

    >Five/multi-axis cutting machine can profile more complicated outlines with various bevel type

    >Standard machine suitable for pipes nor larger than 24''

    5Chuck Type Pipe Plasma Cutting Machine

    Multi-function Pipe Fitting-up Station

    >Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.

    >Light-duty type(manual) and heavy-duty type(motorized) are available.

    >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

    6Chuck Type Pipe Plasma Cutting Machine

    Automatic Pipe Welding Station

    >With two welding heads

    >TIG/MIG/SAW are optional

    >PLC system control & WPS programmed

    >Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.

    >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

    7Chuck Type Pipe Plasma Cutting Machine

    Conveyor Handling System

    >used for pipe convenient transporation during in pipe spool fabrication.

    >Its speed is adjustable between 2M to 20M/min.

    For more information, please contact us, thank you!
