Steel Wire Circle Bending Machine
Hangzhou Suntech Machinery Co., Ltd.- Warranty：1 Year
- Type：Ring Making Machine
- Usage：Wire
- Metal Material：Steel
- Outlet Diameter：0.8-6.5mm
- Max.Inlet Wire Dia.：6.5mm
Base Info
- Model NO.：SUN-01
- Block Dia.：560mm
- Max. Number of Block：1
- Certification：ISO
- Condition：New
- Transport Package：Pallet
- Specification：3-8mm
- Trademark：SUNTECHMACH
- Origin：China
- HS Code：8463300000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. SUN-01 Block Dia. 560mm Max. Number of Block 1 Certification ISO Condition New Transport Package Pallet Specification 3-8mm Trademark SUNTECHMACH Origin China HS Code 8463300000 Production Capacity 100 Sets/YearProduct Description
Ring Making Machine
1. Application:
Automaitc Ring making machine is to produce round rings, with iron wire, steel wire, aluminum wire ,copper and stainless wire. Chain making machine is to produce kinds of chains , ring chain,and double hook chain. stable in working condition and easy in operation, which is key auxiliary equipment for metal products and processes a high performance.
2.Parameters
| No. | Description | Specification |
| 1 | Power source | 3Pahse,380V, 50HZ |
| 2 | Motor | 3.0 KW |
| 3 | Wire diameter | 2-6mm |
| 4 | Welding current | Multi-position adjustment |
| 5 | Ring diameter | 55-1000mm |
| 6 | Speed | 20 meters/minute |
| 7 | Ingress protection | IP20 |
| 8 | Insulation class | B |
| 9 | Certification | CE, CCC |
| 10 | Dimension | 900*750*1500 mm |

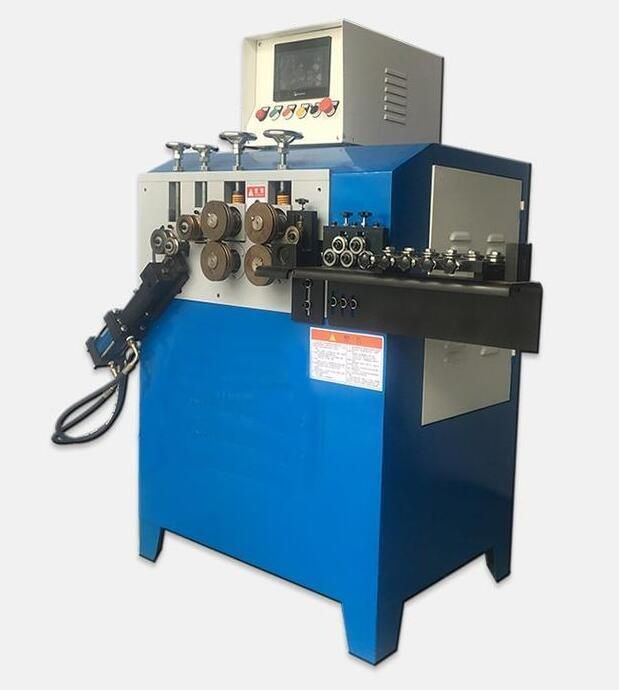

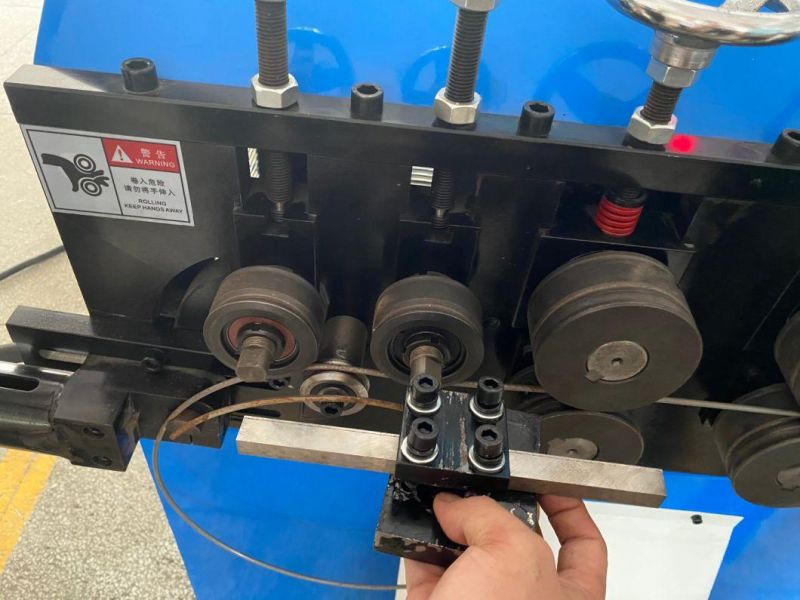

3. Photos
