• Model NO.：BX1530
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Machine Name：CNC Portable Cutting Machine
• Cutting Speed：20-3500 mm,Min
• Cutting Thickness：1-40mm
• Cutting Precision：±0.5mm
• Height Regulating Distance：≤100 mm
• Height Regulating Device：Arc Voltage Height
• General Nesting Software：Starcam
• Plasma Cutter：Optional (Seanior, Hwayuan, Hypertherm)
• Sales Service：Engineers Available to Service Machinery Overseas
• Drive：Stepper Motor
• Transport Package：Wooden Box Package
• Specification：1500*3000mm
• Trademark：Seanior
• Origin：China (Mainland)
• HS Code：84564010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. BX1530 Power Source Electric Cutting Mode Plasma Cutting Machine Name CNC Portable Cutting Machine Cutting Speed 20-3500 mm/Min Cutting Thickness 1-40mm Cutting Precision ±0.5mm Height Regulating Distance ≤100 mm Height Regulating Device Arc Voltage Height General Nesting Software Starcam Plasma Cutter Optional (Seanior, Hwayuan, Hypertherm) Sales Service Engineers Available to Service Machinery Overseas Drive Stepper Motor Transport Package Wooden Box Package Specification 1500*3000mm Trademark Seanior Origin China (Mainland) HS Code 84564010 Production Capacity 200 Sets/Month

Product Description

Product Description:

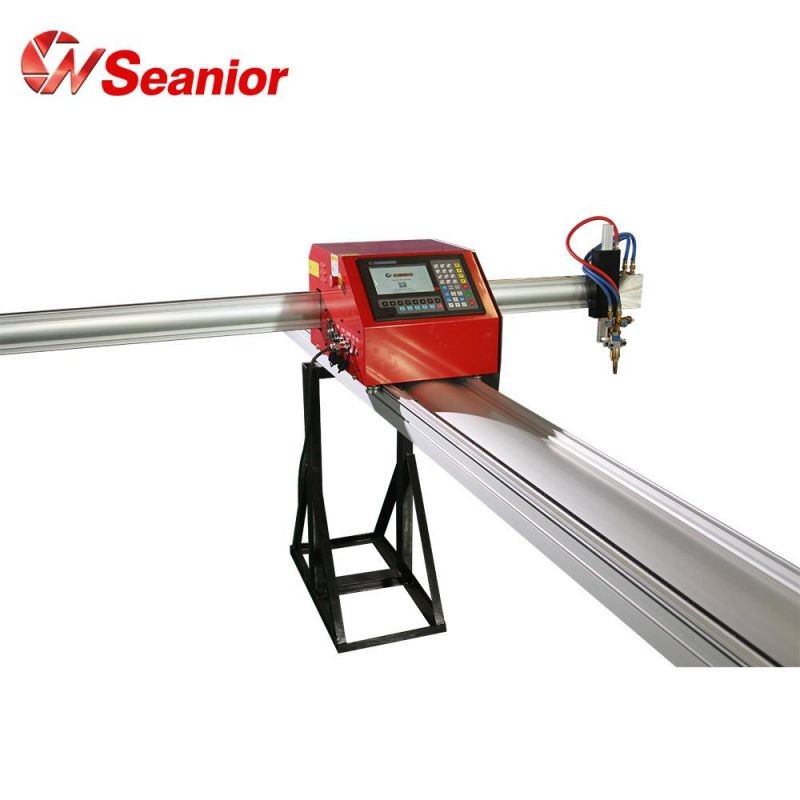

 1530 Portable CNC Flame Cutting Equipment for HVAC

(Plasma Cutting Machine      Model: Handyman1530)


Small size, great capability. High precision, low price.

You buy not because it's cheap, you buy because it fits.

Do you want to cut something great and improve your efficiency with CNC cutting machine?
Are you looking for the high quality plasma/flame cutting machine to cut your metal sheet or pipe and tube at best price?
Are you finding German or American suppliers' offer SO HIGH?
How about a person helps you to solve all the problems and leave you to sit back and relax?


Product Feature:
1530 Portable CNC Flame Cutting Equipment for HVAC
(Plasma Cutting Machine      Model: Handyman1530)


Product advantages


The plasma cutting speed is high, especially during common carbon steel sheet cutting, the plasma cutting speed is 5-6 times that of flame cutting.

Low price,you still need to expect best service,Cut mild steel with flame process.Cut high carbon steel, stainless steel, and other non-ferrous metal with Plasma process

Small size, great capability.High precision, low price.

You buy not because it's cheap, you buy because it fits.





Product Parameters


Model	Seanior-Handyman
Power source	machine:AC220V/50hz palasma cutter: AC380V/50hz
Effective cutting width	1500mm
Effective cutting length	3000mm /6000mm ( accept tailor-made length)
Cutting process	plasma/ flame
Cutting thickness(flame)	6.0-150mm (oxygen+acetylene or propane)
Cutting thickness(plasma)	0.5-40mm Depending on the customer's plasma power supply
Cutting speed	20-3500mm/min (max.4000mm/min)
Cutting accuracy	±0.5m
Torch lifting distance	≤80mm
Gas pressure	Max 0.1Mpa
Oxygen pressure	Max 0.7Mpa
Applicable gas type	Oxygen and propane or acetylene
Working interface	Chinese and English (other languages can becustomized)
Duty cycle	24hours
CAD drawing conversion	nesting cut code
Processing Materials	carbon steel, stainless steel, aluminum sheets, galvanized sheets, Titanium plates

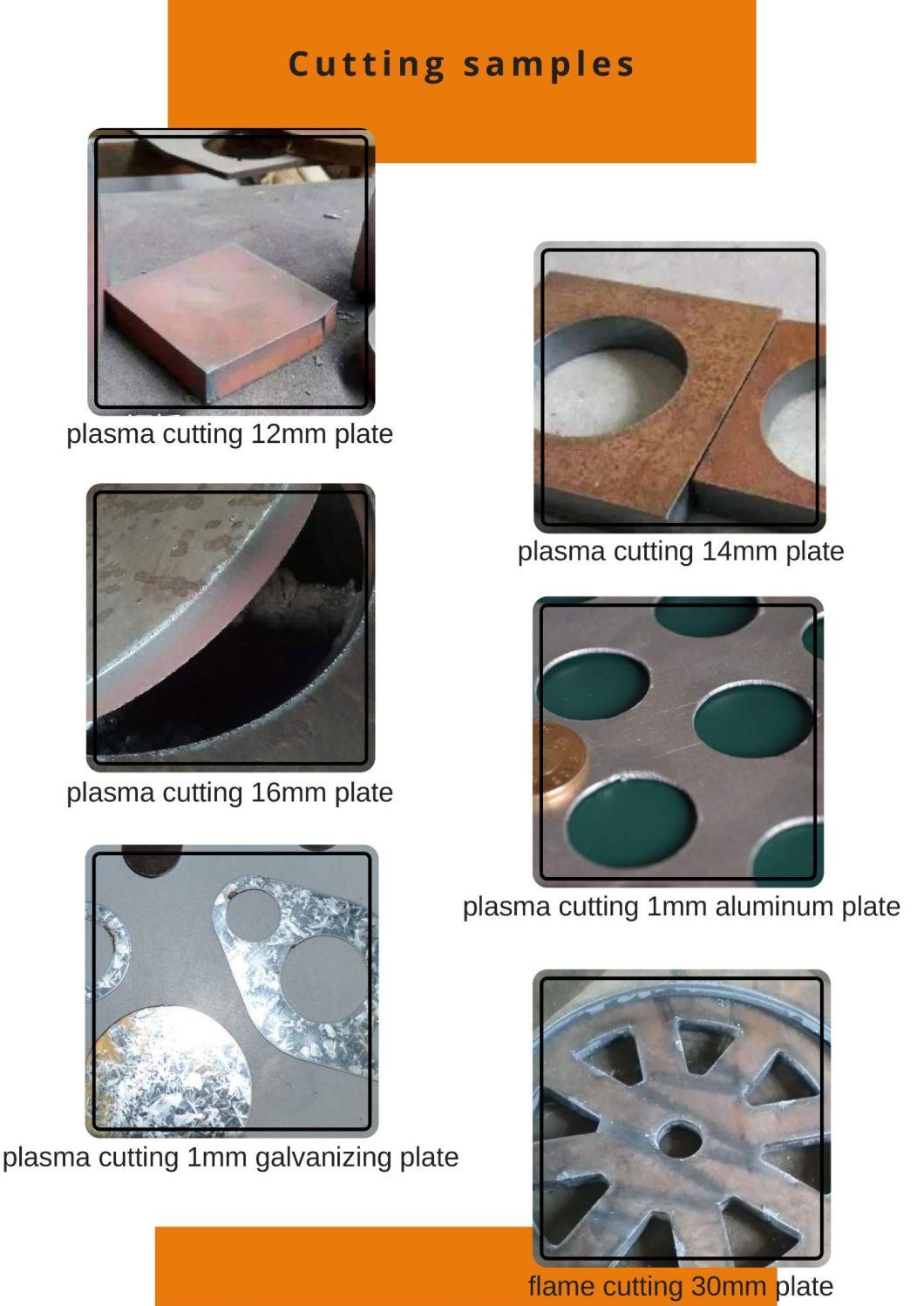

Cutting Samples:



Seanior CNC Systems:

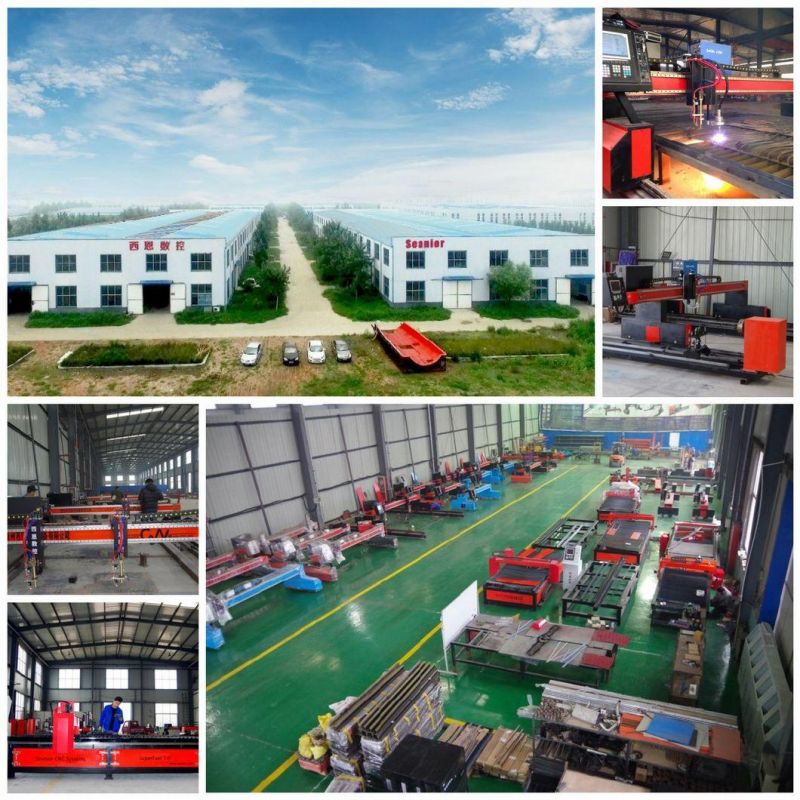

Established in2014, Seanior has enjoyed an expanding growth successfully and become a dynamic company focusing on building CNC cutting machines applied in different industries.
Seanior was first imagined as a brand in mind with a man named Sean working with our machine effortless and confidently.We aim to make great machines available to workshops strive for high efficiency and low cost.


Why you Choose Seanior CNC Systems?

Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.

1. 12 months warranty for the whole machine.
2. Technical support by phone, email 24/7
3. English version manual and operation tutorial video
4. Engineer available to service machinery overseas.
