Brad Nail Making Machine Drilling Screw Point Forming Machine
Hangzhou Suntech Machinery Co., Ltd.- Automatic Grade：Automatic
- Warranty：1 Year
- Certification：GS, RoHS, ISO, CE
- Transport Package：Seaworthy Packing
- Trademark：SUNTECHMACH
- Origin：China
Base Info
- HS Code：846330
- Production Capacity：500 Sets,Year
Description
Basic Info.
HS Code 846330 Production Capacity 500 Sets/YearProduct Description

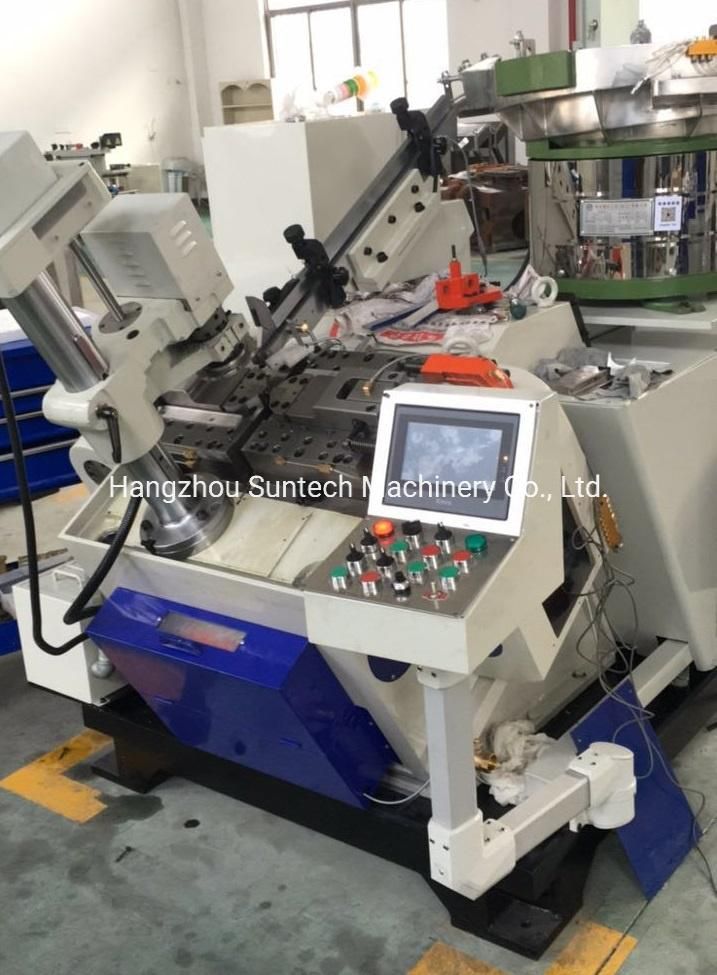

Self drilling screws point drilling machine
I. Features of Machine:For making cup head dry wall nails, dome head nails with the sharp point. As regular nail machine is that a nail machine that makes the head and the point in one operation in the same operation the quality is not good. The nail needs to have consistent material when forming a special head like a cup or dome head. This is done with a shear point only. So then we need a point drilling machine to make the diamond point.
II. Main Technical Parameters:
| Drive power | 11KW inverter, 7.5KW motor |
| Screw diameter for drilling | 2.8-6.0mm |
| Screw length for drilling | 10-200mm |
| Drilling speed | 100-500pcs/min for one punch, 40-150pcs/min for two punch(for stainless steel) |
| Way of control | PLC automatic control |

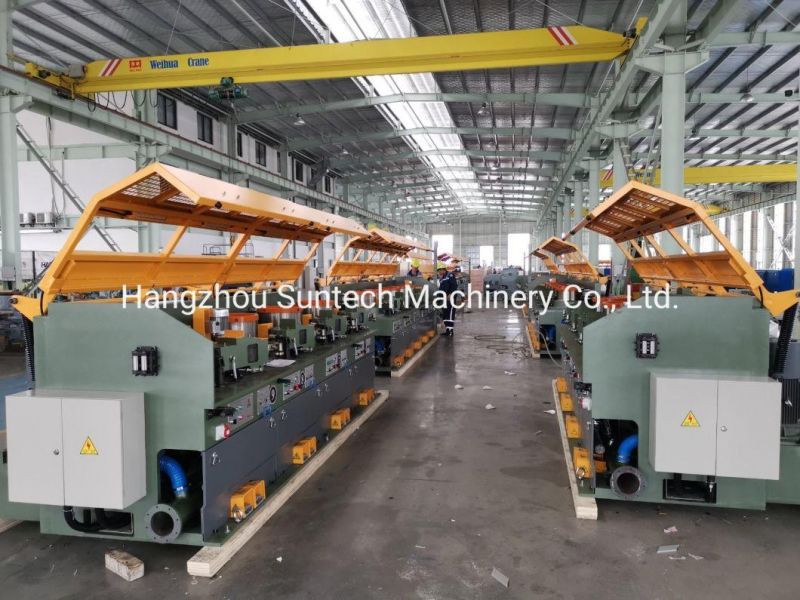

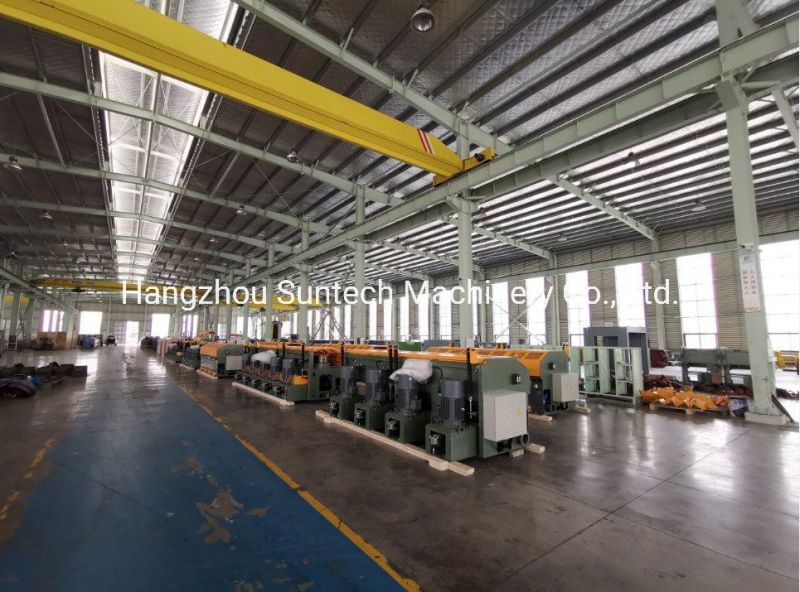

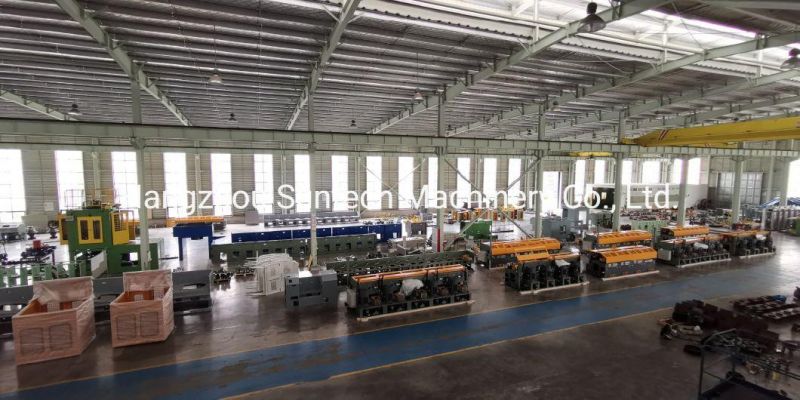

III. Our Workshop:
IV. Clients list for reference:
