• Model NO.：CY-1700X-SPC-2
• Rotate Speed：5rpm
• Maximum Temperature：1700ºC
• Chamber Material：High Purity Quartz
• Thermocouple：S Type Thermocouple
• Warranty：One Year
• Transport Package：Wooden Box Outside, Plastic Paper Inside
• Specification：Customized
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-1700X-SPC-2 Rotate Speed 5rpm Maximum Temperature 1700ºC Chamber Material High Purity Quartz Thermocouple S Type Thermocouple Warranty One Year Transport Package Wooden Box Outside, Plastic Paper Inside Specification Customized Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

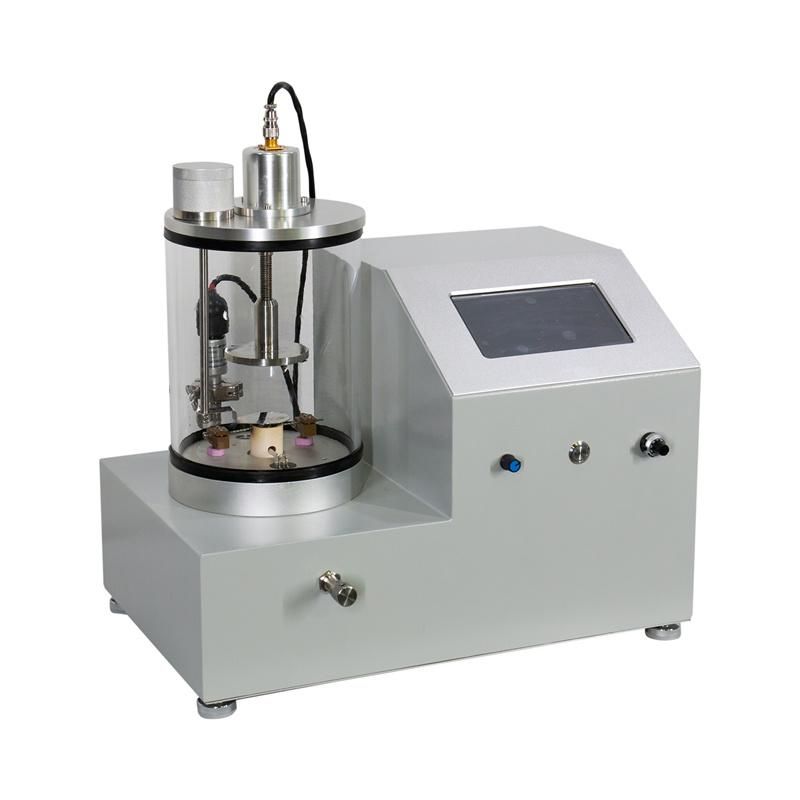

Thermal evaporation vacuum coating machine for the preparation of electrodes
Compact thermal evaporating coater introduction:This small program temperature-controlled evaporation coating machine can set the program and precisely control the temperature to change within the range of 200ºC-1500ºC. During the evaporation coating of the sample, the sample stage can be rotated to obtain a more uniform film. This model of small program temperature control evaporation coating machine has a wide range of applications, can prepare a variety of metal film and organic film, so it is widely used in the preparation of electrodes and the preparation of organic light-emitting LEDs. The compact size of the instrument saves laboratory space; it is easy to operate and adaptable to different materials, so it is widely used in laboratories of universities and research institutes.
Features of compact thermal evaporating coater:
1. This equipment uses a quartz chamber for easy cleaning and sample placement;

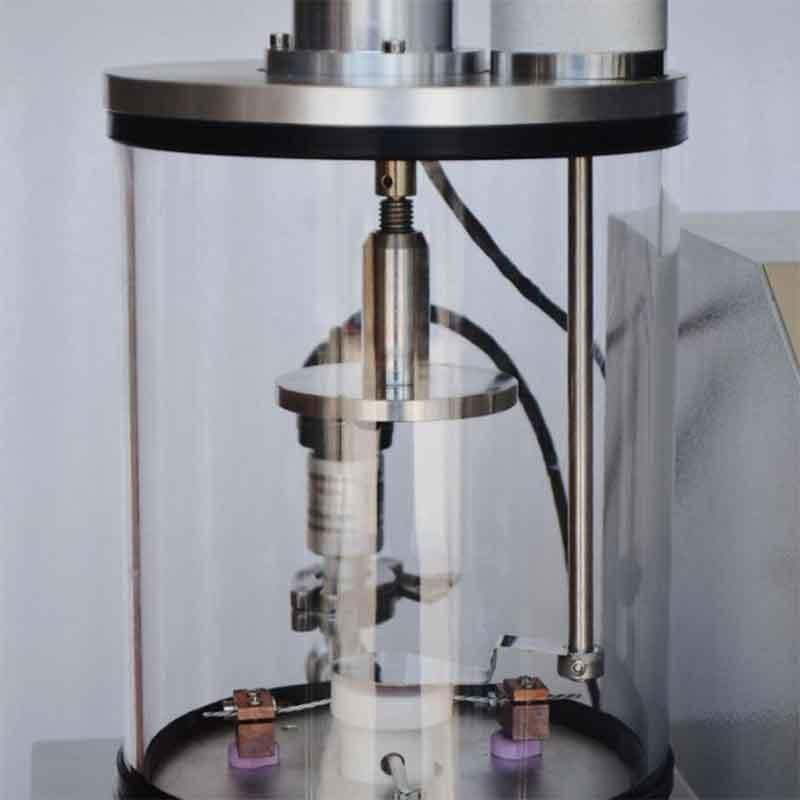

2. The sample stage can be rotated, and the coating effect can be more uniform;

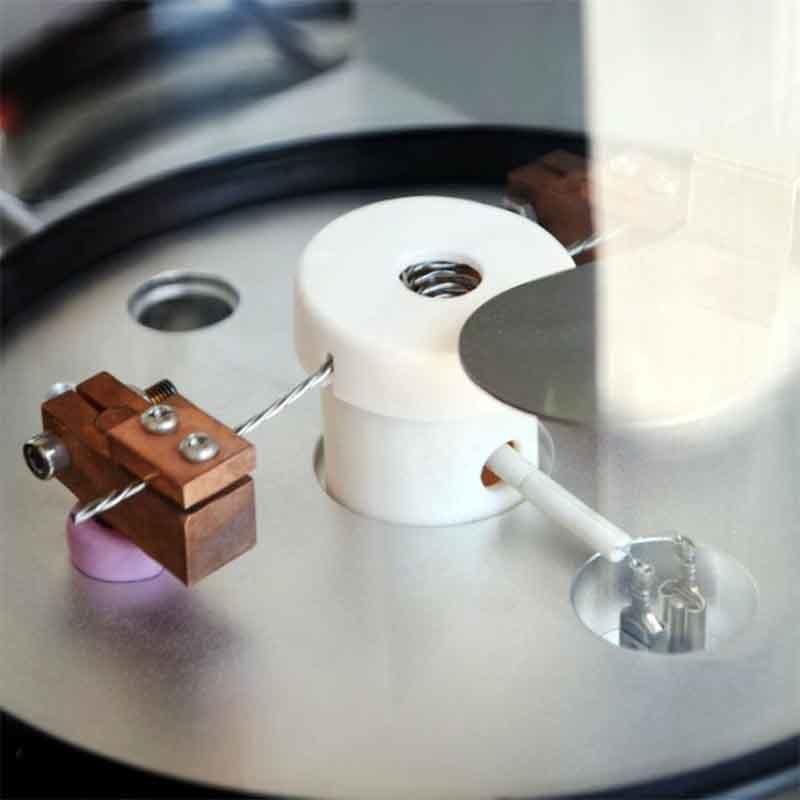

3. Using tungsten wire as the heat source, the maximum temperature can reach 1700ºC, and it is equipped with a special alumina boat loading sample (only used below 1600ºC, if the evaporation temperature is greater than 1600ºC, the sample should be placed directly in the tungsten wire basket);
4. The device can be switched to the manual adjustment state. The thermocouple is not installed inside, and the output current is directly adjusted by the manual. The temperature of the heat source can reach 2000ºC, which can meet the experimental requirements for carbon plating of the sample.
5. The inert gas can be introduced into the vacuum chamber to clean the chamber, or the reaction gas can be introduced to carry out the reaction evaporation coating.
6. The air inlet is equipped with a needle valve for regulating the intake air flow..
compact thermal evaporating coater technical parameters:

Item	Detail
Supply voltage	AC220V,60Hz
Maximum power	800W
Sample stage	Diameter φ50mm; Rotatable, 5rpm; The distance between the sample stage and the evaporation source is adjustable, adjustment range 60mm-100mm
Quartz chamber	O.Dφ180mm x I.Dφ166mm x 235mm
Maximum temperature	1700ºC
Thermocouple	S type thermocouple, working temperature 200ºC ~ 1500ºC
Vacuum gauge	Electronic vacuum gauge
Vacuum interface	KF16
Intake interface	1/4NPS
Vacuum pump	Double stage rotary vane vacuum pump

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
