Full Automatic Simple Operating Nail Making Machine (Z94-1C) , Pin Nail Machine Price
Wuxi Shenda Nail Machinery Factory- After-sales Service：Order to Make According to Drawing
- Warranty：1 Year
- Transport Package：Polywood Cases
- Specification：1440*1040*1270mm
- Trademark：Shenyida
- Origin：Wuxi, China
Base Info
- Model NO.：Z94-1C
- HS Code：8463300000
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. Z94-1C HS Code 8463300000 Production Capacity 100PCS/MonthProduct Description

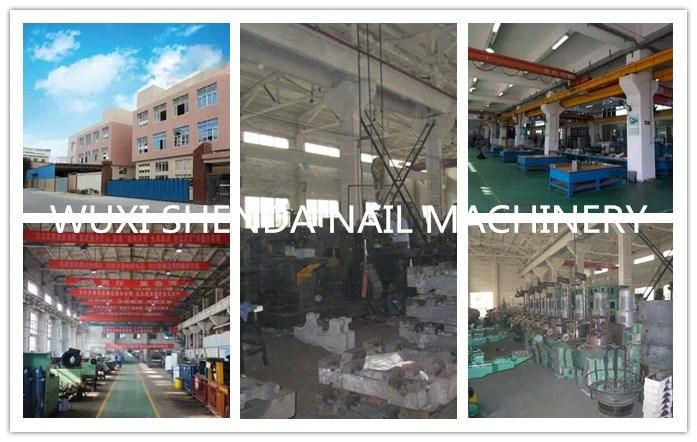

Our factoryWuxi shenda nail machienry factory professional manufactures nail making machine, wire drawing machine and the accessory equipments since 1995
Capacity 1000pcs per year, customers cover Africa ,middle East, Asia,and latin-America ariea.
Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.
Advatage product:Roofing nail making machinery;Blind rivet nail making machinery;Concrete nail making machinery;Barbed wire machine;Coil nail welding machine;High speed rolling machine

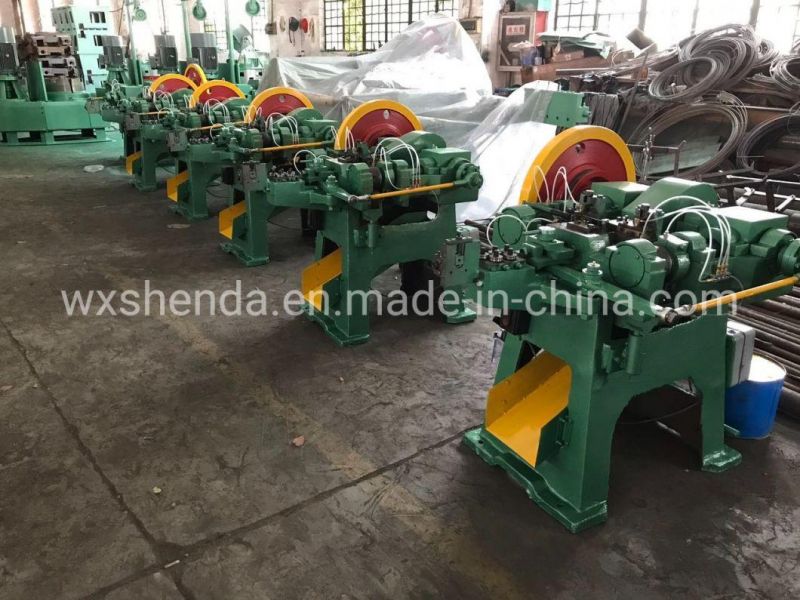

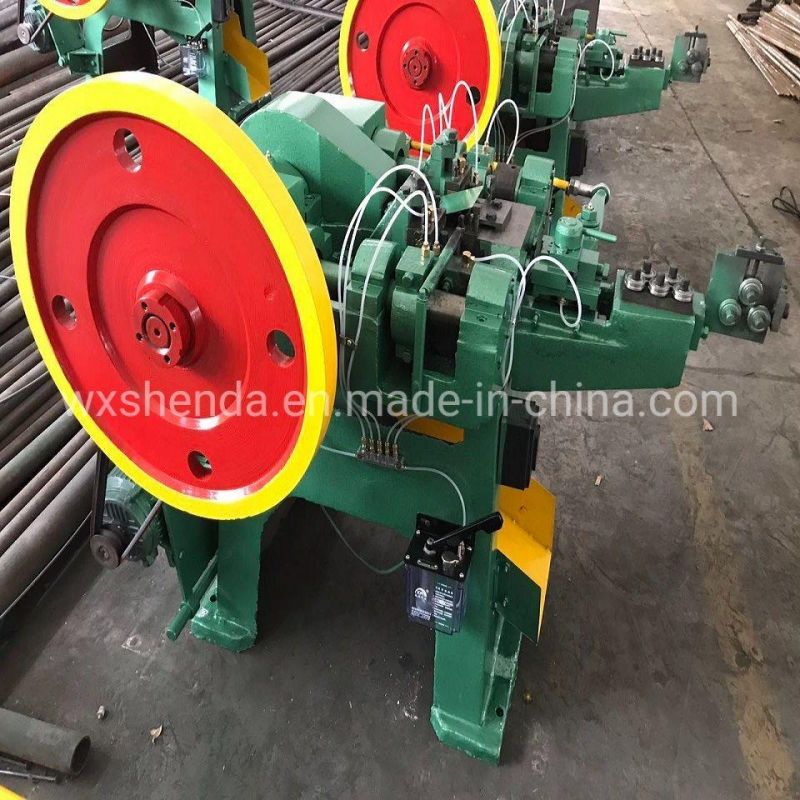

Z94-1C Nail Making Machine
New Generation Nail Making Machine
Featured with high speed, low noise and less compact

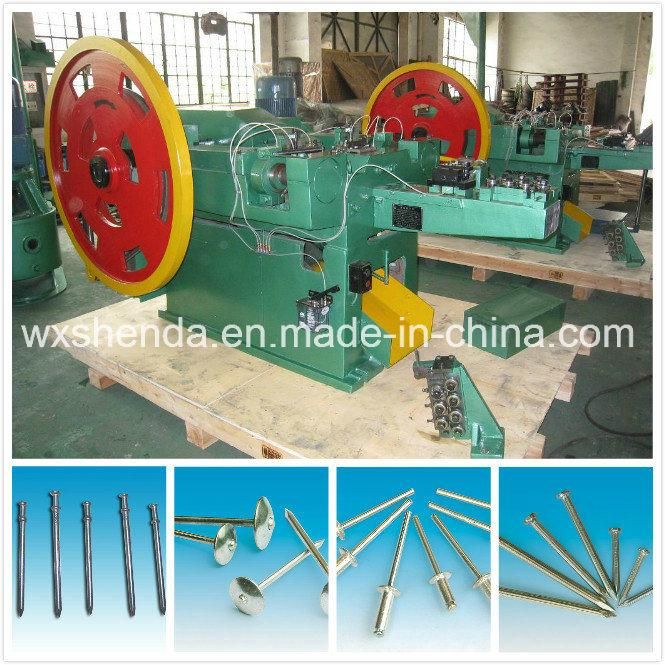

Used for produce normal nail, concrete nail, clout nail, rivet and so on.
| parameter | unit | Z94-1C |
| Dia of nail max | mm | 1.6 |
| Dia of nail min | mm | 0.9 |
| Length of nail max | mm | 25 |
| Length of nail min | mm | 9 |
| Dsigned out put | pcs/min | 450 |
| Moter power | kw | 1.5 |
| Weight(approx) | kg | 560 |
| Overall dimensions | mm | 1500x1300x1200 |
Other related nail making machine model for different size:
| parameter | unit | Z94-6.5C | Z94-5.5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Dia of nail max | mm | 6.5 | 5.5 | 4.5 | 3.4 | 2.8 | 1.6 |
| Dia of nail min | mm | 4.5 | 3.7 | 2.8 | 1.8 | 1.2 | 0.9 |
| Length of nail max | mm | 200 | 150 | 100 | 80 | 50 | 25 |
| Length of nail min | mm | 100 | 80 | 50 | 30 | 16 | 9 |
| Dsigned out put | pcs/min | 160 | 200 | 260 | 320 | 350 | 450 |
| Moter power | kw | 11 | 5.5 | 4 | 3 | 2.2 | 1.5 |
| Weight(approx) | kg | 5000 | 2500 | 2000 | 1400 | 1200 | 560 |
| Overall dimensions | mm | 3200x2200x2200 | 2800x1800x1800 | 2200x1600x1650 | 2000x1400x1400 | 1700x1300x1400 | 1500x1300x1200 |

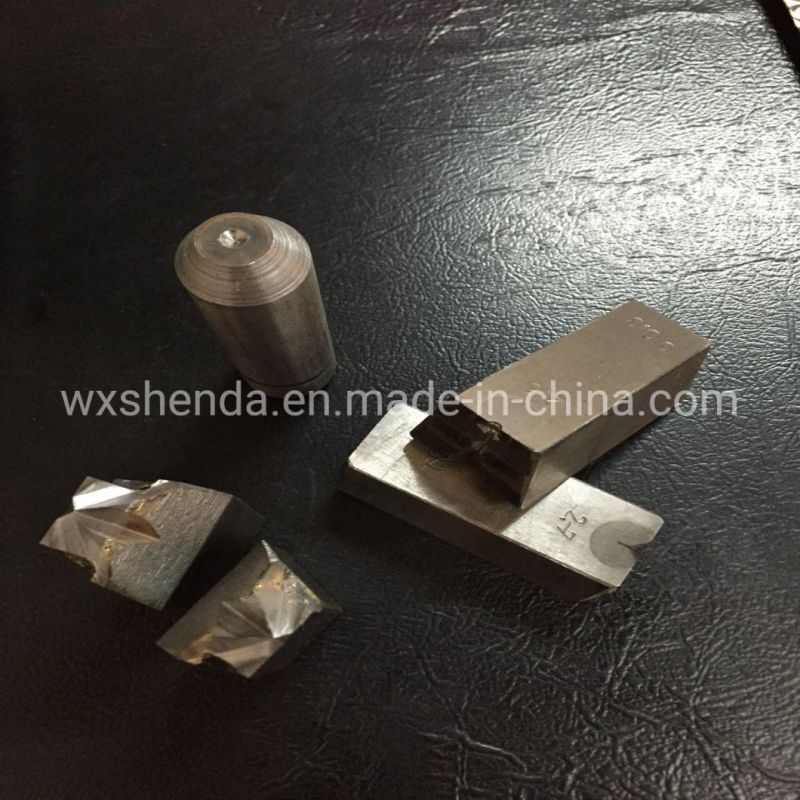

Nail making machine spare parts

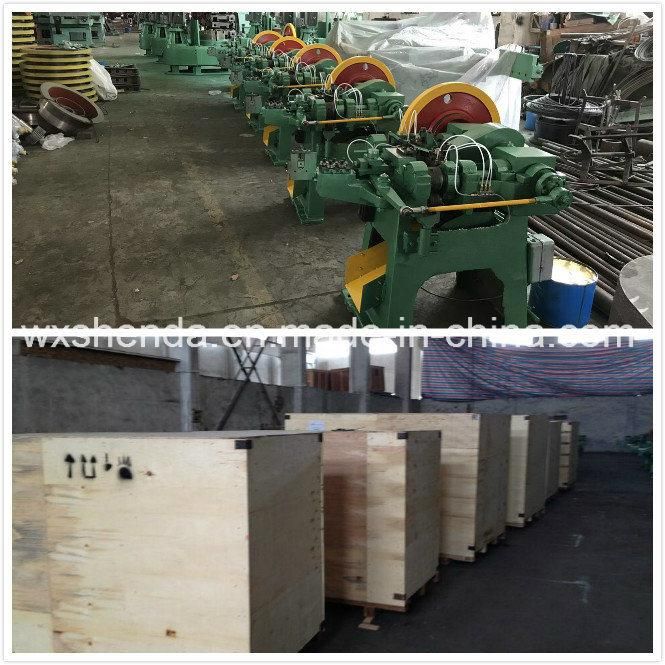

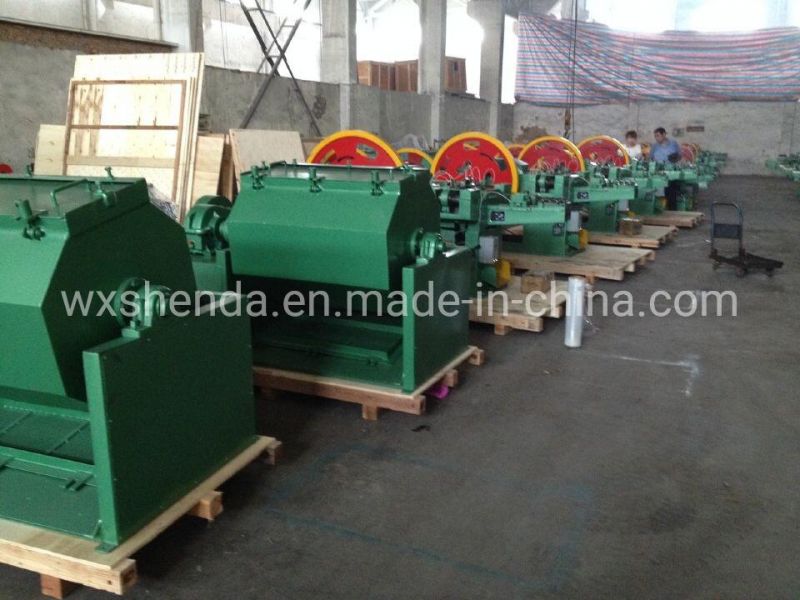

Packing&shipping
Our service:
Your concern is our concern!Your request is our request!Your value is our value!
- 1. 26years experience in nail &wire machinery manufacture ,strictly cover all requirements for customer.
- 2. offer ultimate customization and personalized solutions
- 3. factory lay-out and Installation support
- 4. Engineer available for machine adjusting and testing abroad.
Company certificate
Our exbition and customer
FAQ:

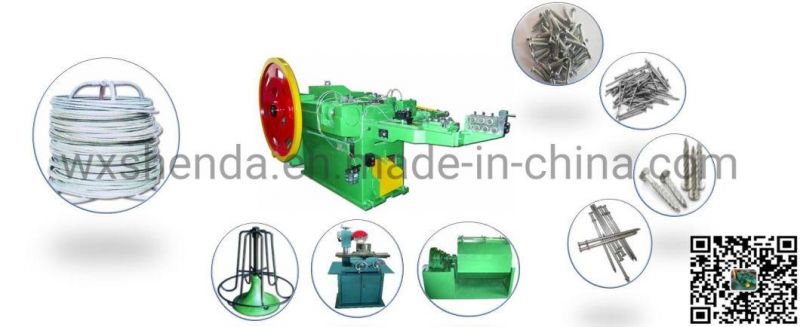

QUESTION1:Do we need wire drawing machine when nail making?
A1:Option:1.we could buy the drawed wire from wire factory and then start nail making by our nail making machine
Option 2:we can buy raw material with diameter 6.5mm/6.0mm/5.5mm and drawed to smaller diameter by our wire drawing machine before nail making.
QUESTION2:How many ton does one machine make per day
A2:The output for each model nail machine by pcs/min.So the weight is diffent if diameter and length different.We can calculate if you supply all size
QUESTION3:How can you guarranty the machine quality?
A3:All machine with 12 month guarranty as soon as machine arrive customer.And we can easy to guide our customer to operate and maintain the nail making machine
QUESTION4:How many days for the machine delivery?
A4:Usually there will need 10days for normal machine ,And if the machine order order to make will take a bit long time .Because normal model machine we have stock for sale.
