• Model NO.：PHB5D-CNC2040
• Machine Size：7500 -36000 X 8000 mm X6300mm
• Transport Package：40 Fr
• Specification：7500 -36000 x 8000 mm
• Trademark：PRATIC
• Origin：China(Mainland)
• HS Code：8457101000
• Production Capacity：1000 Sets ,Year

Basic Info.

Model NO. PHB5D-CNC2040 Machine Size 7500 -36000 X 8000 mm X6300mm Transport Package 40 Fr Specification 7500 -36000 x 8000 mm Trademark PRATIC Origin China(Mainland) HS Code 8457101000 Production Capacity 1000 Sets /Year

Product Description

PHB5D-CNC2040

Description
This is a 5 Axis Gantry CNC machining center, with functions of milling, drilling, tapping, routing, chamfering and so on.
Use international CNC controller system
Machining various lengths of metal profiles such as aluminum, steel, copper, titanimu alloy and so on.
With HSK-A63 spindle, with a large processing range and very high processing accuracy for precision machining.
With auto chip conveyor which makes it easier for chip cleaning
Widely used in aerospace, automotive, machinery parts and other Multi-Angle, shaped parts processing.
  Technical Data

ITEM	SPECIFICATION
X/Y/Z Axis Travel	4000 / 2600 /800-1250 mm
Spindle Taper	HSK-A63
Spindle Speed	18000 rpm
Tool Magazine	20 pcs
Tool Change Time	8 sec
X/Y/Z Axis Moving Speed	30 /30 /30 m/min
Position Precision of X/Y/Z Axis	0.02 /0.015 /0.01 mm
Repeating Position Precision of X/Y/Z Axis	±0.01
Power of Spindle Driven Motor	56 kW
Lubricating System	Automatic Lubricating
Cooling System	Water Cooling
Operation System	SIEMENS

* Customized Lengths or Configuration Are Available

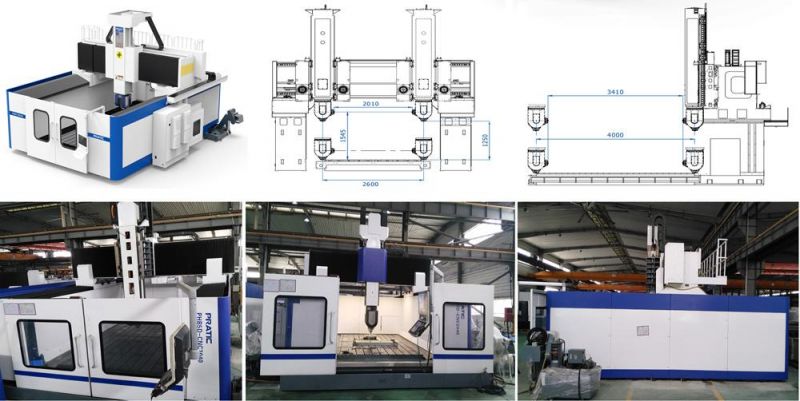

Product Detailed Images & Pictures

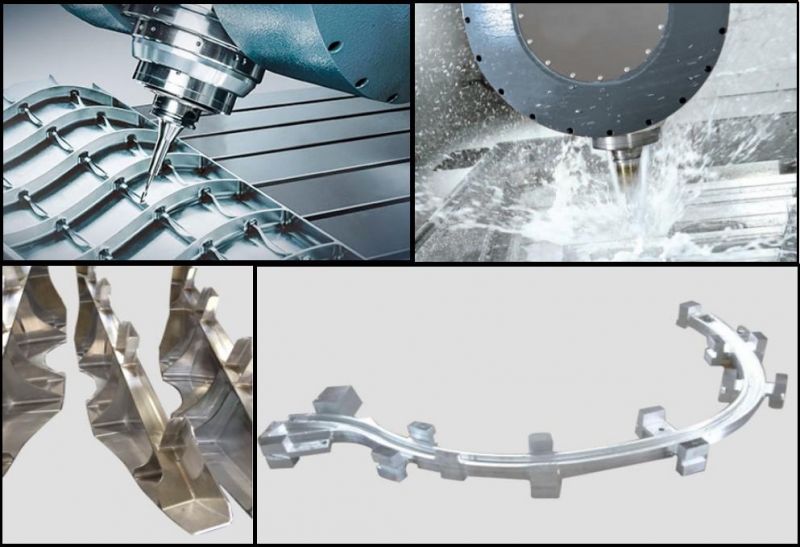

Applications
Widely used in aerospace, automotive, machinery parts and other multi-angle, irregular shape parts processing.

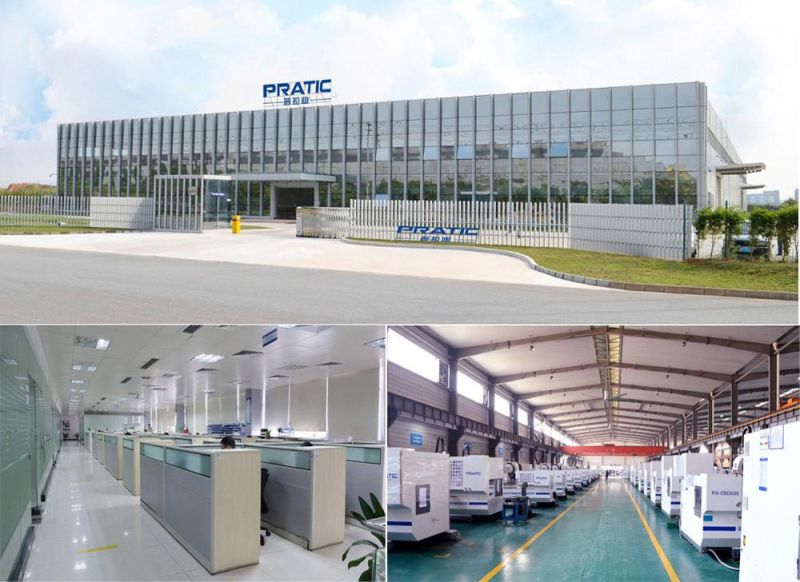

About PRATIC
PRATIC CNC Science & Technology Co., Ltd. is a reputable manufacturer from China that specializes in CNC machining center and automatic machinery. Our products cover a wide range of CNC machining centers for an effective metal machining. Diverse materials from aluminum,steel, composites to plastics can be machined precisely, productively and economically on the milling machines from PRATIC.



Company Strength

1) R&D Team & International Standards
PRATIC owns a design & research team of more than 30 people. PRATIC continuously challenges the technology difficulties, break the limitation of the industry, and carry out deep cooperation with the companies from Germany, Japan, South Korea and Singapore.
PRATIC operates according to a strict quality system and PRATIC has got the international ISO9001 qualification, and PRATIC machining centers are produced by the international standards, and all the moldes of PRATIC machining centers have got CE certificates.


2) Lean Management & After-sale Service
PRATIC carries out 5s management, visible management and demand-oriented management to ensure the effectiveness and efficiency in production and daily operation.
PRATIC offers Free Installing, Free Training, Timely Delivery and Reassuring After-sale Service. Your questions will be answered and your problem will be solved in quickest time! In some countries we have local agents who will offer you the best local after-sale service and maintenance!


3) Quality Assurance: PRATIC enforces the strictest inspections and tests to its each machining center as well as components & workpieces.

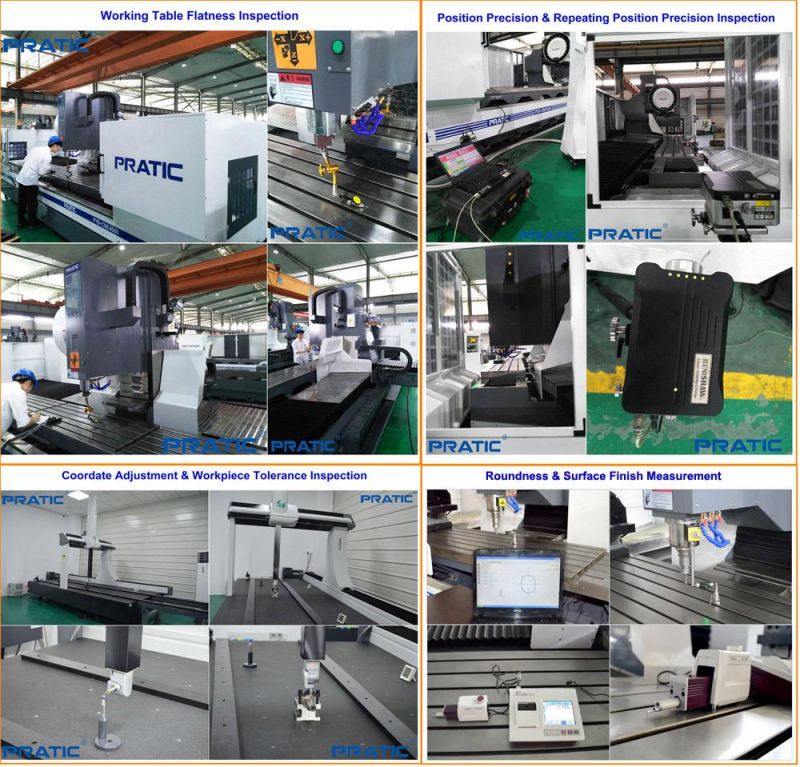

Inspections & Tests: Flatness Inspection, Parallelism Inspection, Position Precision Inspection, Repeating Position Precision Inspection, Three-Coordinate Inspection, Long-Time Run Test...
All the inspections and tests are carried out to ensure each machining center is in 100% perfect condition when delivered to customers!



FAQ

Q1: I knew nothing about this machine, what kind of machine i should choose?
     Very easy to choose. Just tell us what you want to do by using CNC machining center, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
     We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
    We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our machine, it is better for you to provide me the following information
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
