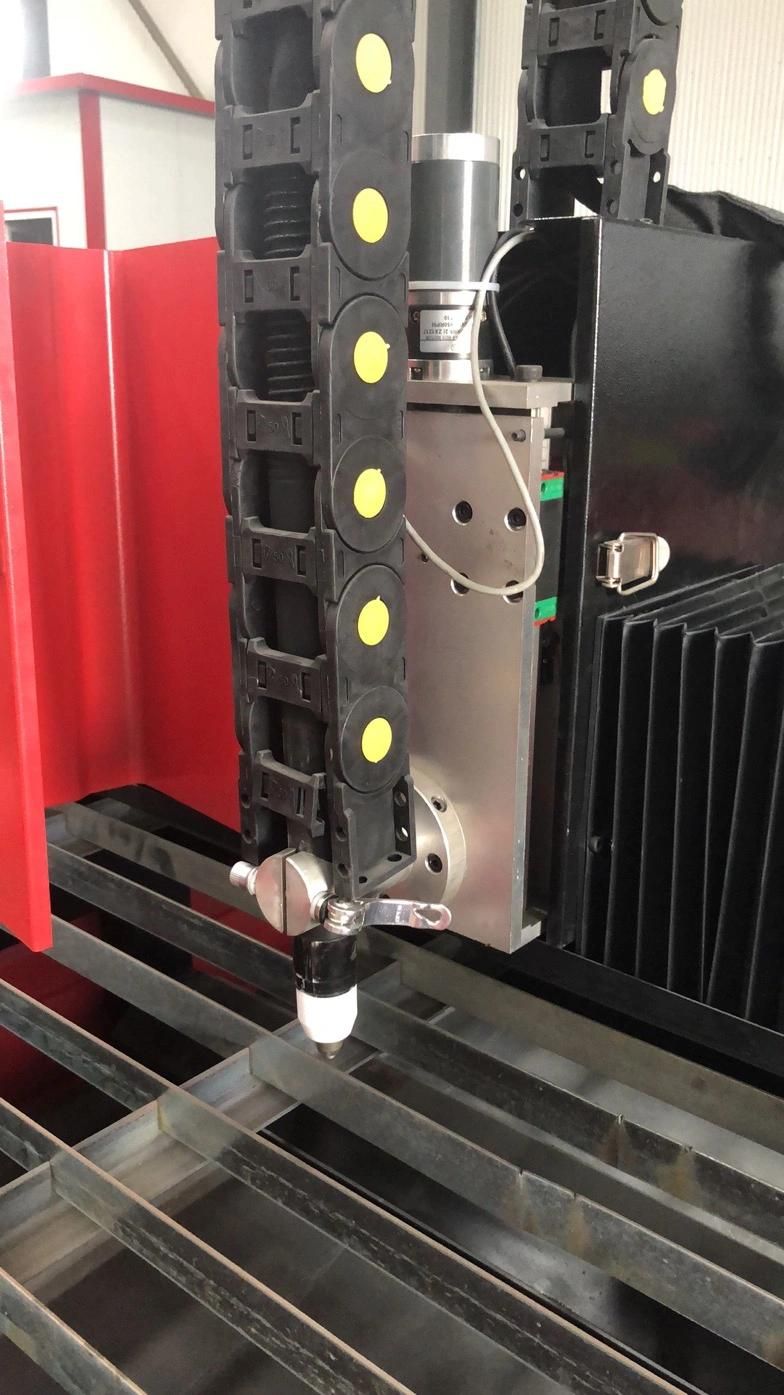

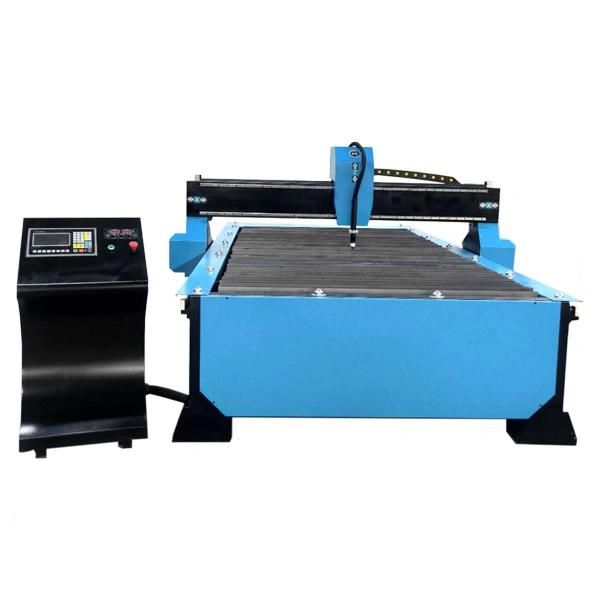

• Torch：Plasma Torch and Flame Nozzle(Op)
• Rail：Square Guide Rail
• Transmission：Helical Rack
• Table：Knief Table Surface
• Bed：Weled Steel Bed Structure

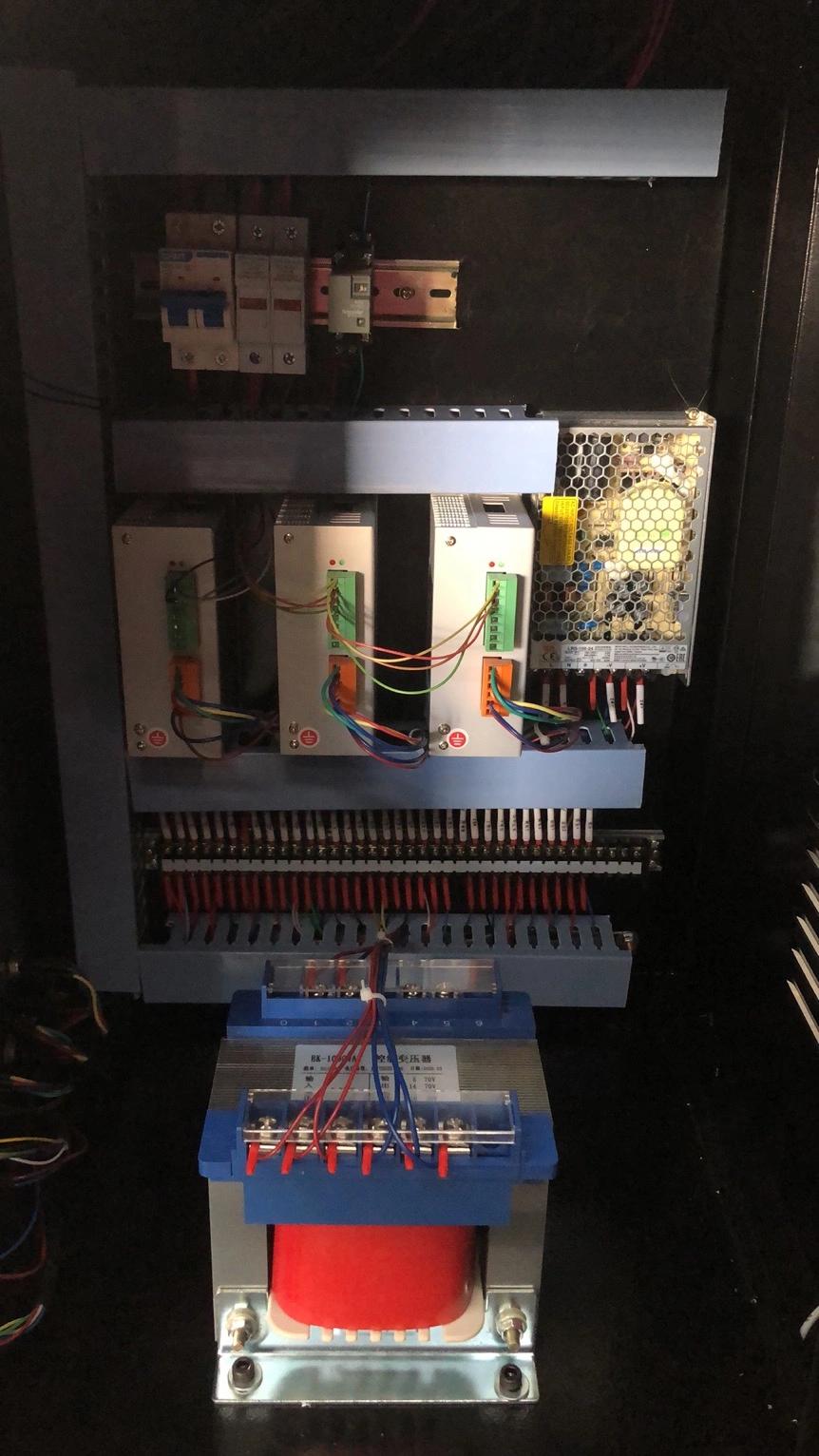

• Control System：Start Control System
• Power Supply：China Huayuan,America Hypertherm
• Motor：Stepper Motor
• Lubricating：Handle Press Oiling System
• Application：Metal Cutting
• Transport Package：Exporting Plywood Package
• Specification：1325
• Trademark：ZK
• Origin：Shandong China
• HS Code：8456401000
• Production Capacity：100set ,Month

Features:

1 .The machine is all welded as seamless steel structure. Steady structure and long life time

2. High configuration, high cutting speed and precision. Taiwan square guide rails,

3.STARFIRE control system with THC

4. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates.

5. File format: G-code

6 Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.

7 Different power: 63A/100A /160A /200A for different thickness cutting

8 Steper motor working mode

9 Higher configuration is optional, such as, servo motor and America HP plasma power


Technical parameters:

 Model

ZK 1325

X,Y working area

 1300×2500mm

Bed structure

 Steel structure with water sink

Cutting speed

 0-8m/min

Working speed

 0-50m/min

Power

8.5KW-10.5KW

Voltage

380V/50HZ

Driver motor

stepper motor

Interface

USB

Arc starting way

Contactless arc starting

Driving mode

Wheel gear

Highly of Z axis

Arcing voltage to reset to higher(optional)

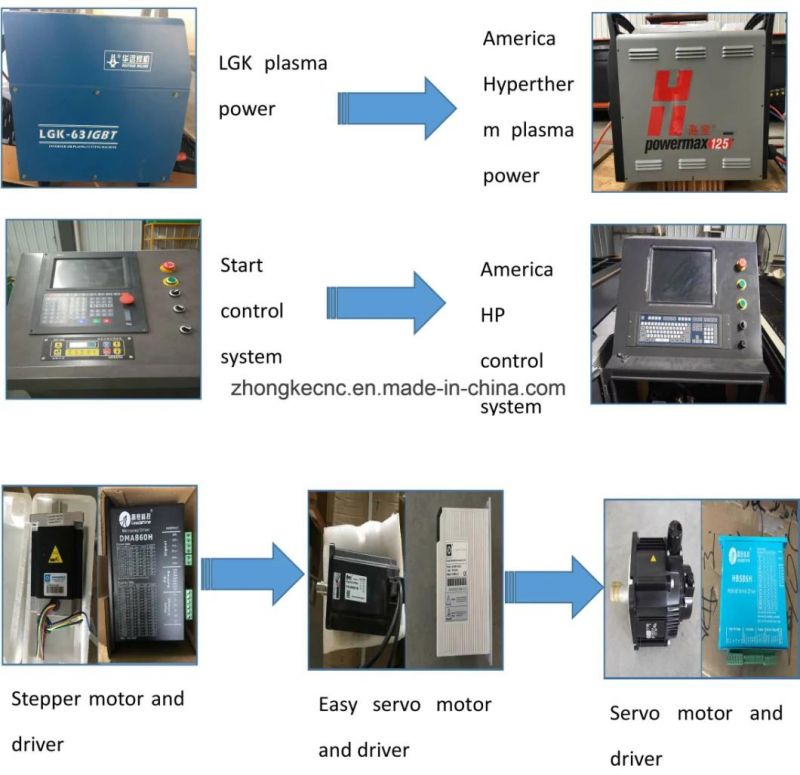

Optional parts:

Applied area:

Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.

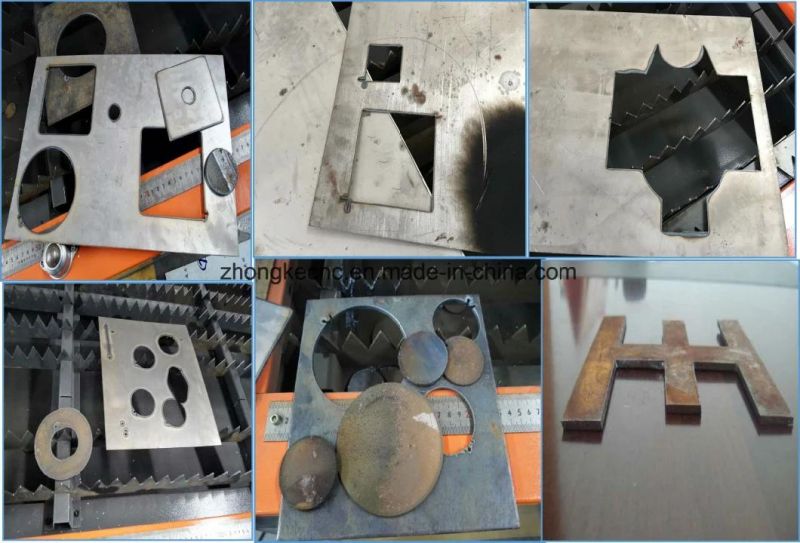

Samples:

Teachinical support:

• Warranty is 1 year
• 24 hour technical support by email or calling
• User-friendly english manual for machine using and maintaining
• We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone .

Payment terms:

• You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.
