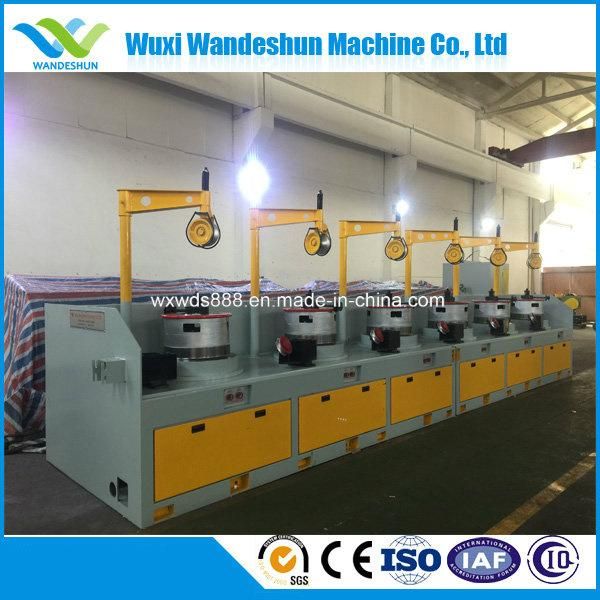

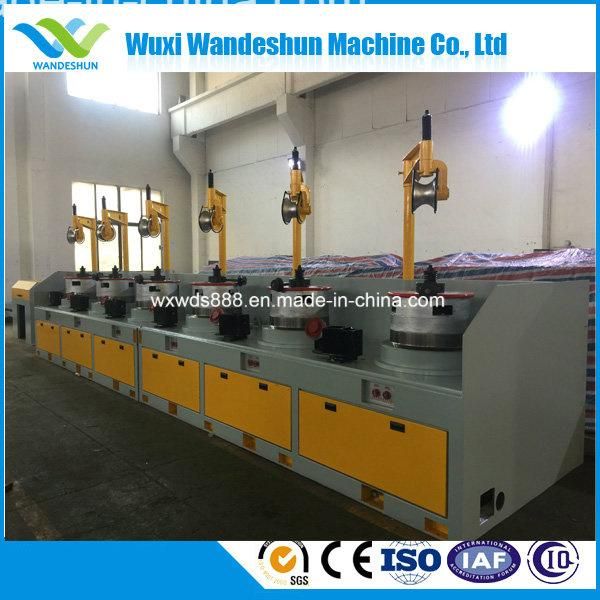

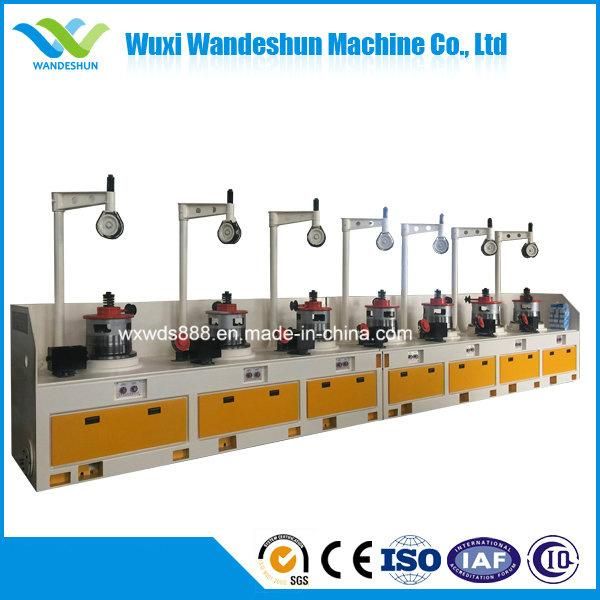

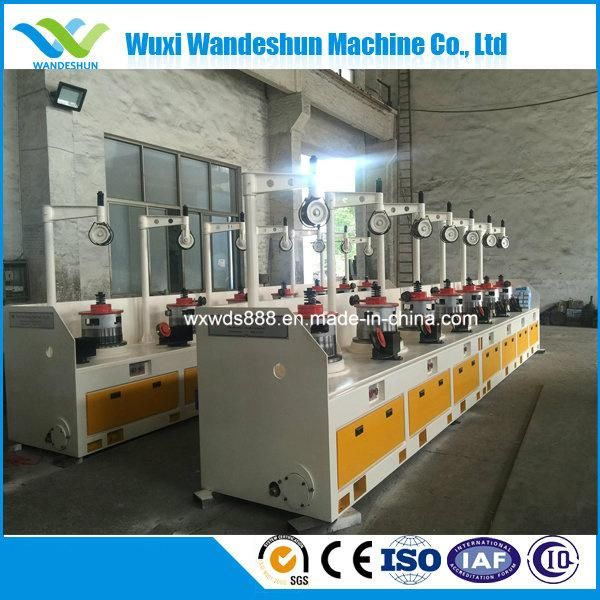

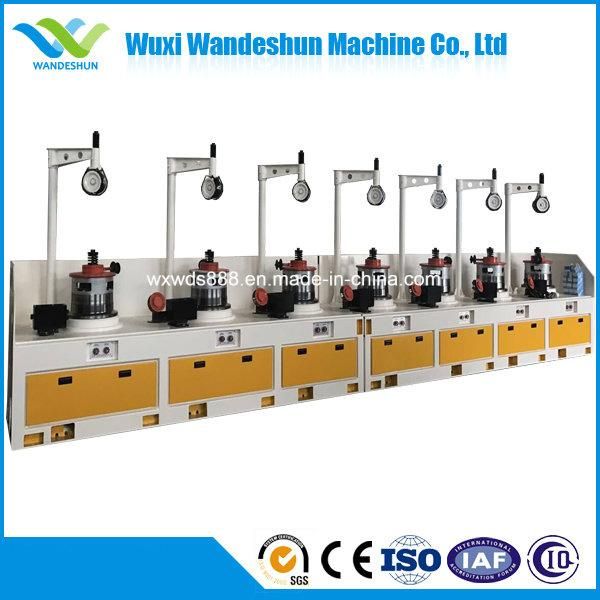

High Speed Pulley Six Pot Wire Drawing Machine (Low price)

Wuxi Wandeshun Machine Co., Ltd.
  • Type：LW Pulley Type Metal Drawing Machine
  • Usage：Wire
  • Metal Material：Steel
  • Outlet Diameter：0.5-4.5mm
  • Max.Inlet Wire Dia.：6.5mm
  • Block Dia.：560mm

Base Info

  • Max. Number of Block：12
  • Certification：ISO
  • Condition：New
  • Power(W)：18.5kw
  • After-Sales Service：Engineers Available
  • Quality：Korea Quality Europe Quality
  • Main Market：Asia, Afria, South America
  • Voltage：380,415,440,220
  • Warranty：One Year
  • Dimension(L*W*H)：as Design
  • Drawing Material：High Carbon, Low Carbon and So on
  • Transport Package：PE
  • Specification：weight 8 ton
  • Trademark：wandeshun
  • Origin：China
  • HS Code：8463102000
  • Production Capacity：1000 Set One Year

Description

SPECIFICATIONS FOR OTO/PULLEY WIRE DRAWING MACHINEITEMSUNITLW1-9/650(700)LW1-9/560(600)LW1-9/450(400)Capstan diametermm650, 700560, 600450, 400Inlet wire diametermmΦ8.0-Φ6.5Φ7.0-Φ5.5Φ3.0-Φ2.5Min outlet wire diametermmΦ2.0Φ1.6Φ0.7Inlet wire tensile strengthMpa400-1200400-1200400-1200Drawing speedm/min<=240<=360<=720Drawing diestime1-91-91-9Total reduction rate%<=90.53<=91.52<=92.16Motor powerKw37-18.530-18.515-7.5
High Speed Pulley Six Pot Wire Drawing Machine (Low price)
High Speed Pulley Six Pot Wire Drawing Machine (Low price)
High Speed Pulley Six Pot Wire Drawing Machine (Low price)

High Speed Pulley Six Pot Wire Drawing Machine (Low price)



High Speed Pulley Six Pot Wire Drawing Machine (Low price)
